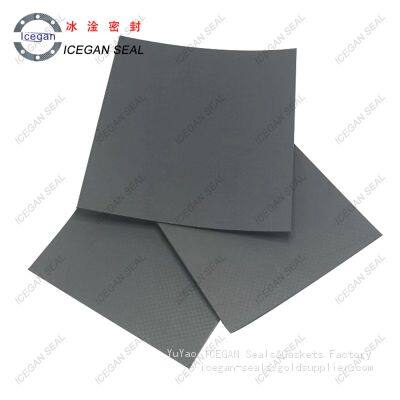

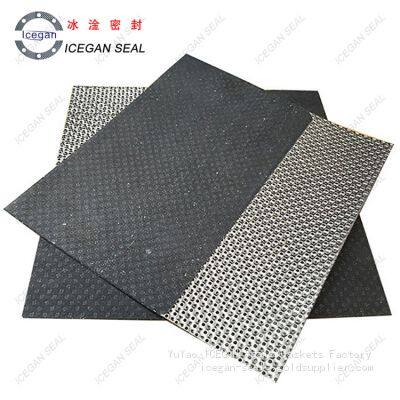

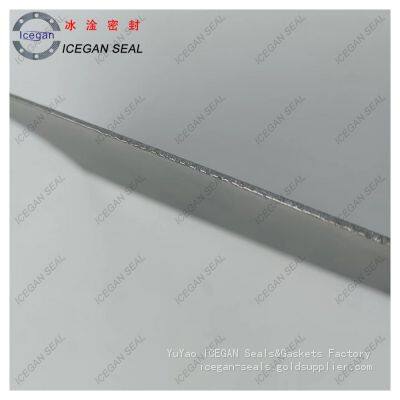

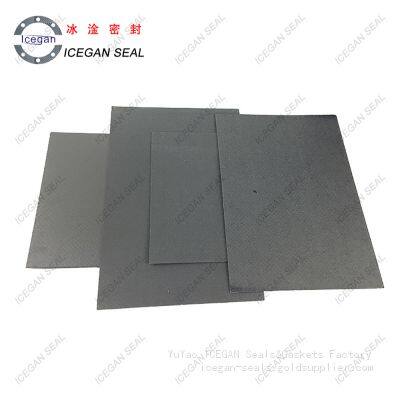

IG-011Reinforced asbestos composite sheet is to use two sides copy board and middle 0.18 ~ 0.25 mm carbon steel tinplate sprint composites. The product has good properties, such as swelling, sealing and long service life.Composite structure: asbestos Ppaper + tinplate tanged sheet + asbestos paper paper.
Quick Details
Place of Origin:Ningbo, China (Mainland)
Brand Name:ICEGAN
Model Number:IG-011
Material:Asbestos with inside metal,asbestos and Metal
Shape:Flat Gasket
Standard or Nonstandard:Standard
Type:asbestos Gasket Sheet
Technical parameters:
Density: > 1.40 g/cm3
Compression ratio: 8% - 12%
Resilient rate: > 50%
75 # aviation kerosene (23 ~ 30 ℃ (5 h)
Oil absorption rate:
Thickening rate:
Soak 20 # aviation lubricating oil (150 ℃ (5 h)
Oil absorption rate:
Thickening rate:
Regular size:
Length: 500 mm, 1000 mm, 1200 mm, 1500 mm
Width: 500 mm, 512 mm, 800 mm, 1000 mm
Thickness: 1.0 -- 2.5 mm
Reinforced asbestos composite sheet can be cut into various types of gaskets, mainly used in automobile, agricultural machinery, motorcycles, engines, water pumps and air conditioners, etc., can also be used for high strength gasket and the cylinder gasket, etc.
Packaging & Delivery
Packaging Details: 1000-1500 KGS per wooden pallet,or 50 KGS per wooden case,or your requirements.
Delivery Detail: 15-30 days after received your deposit
