Item YX22

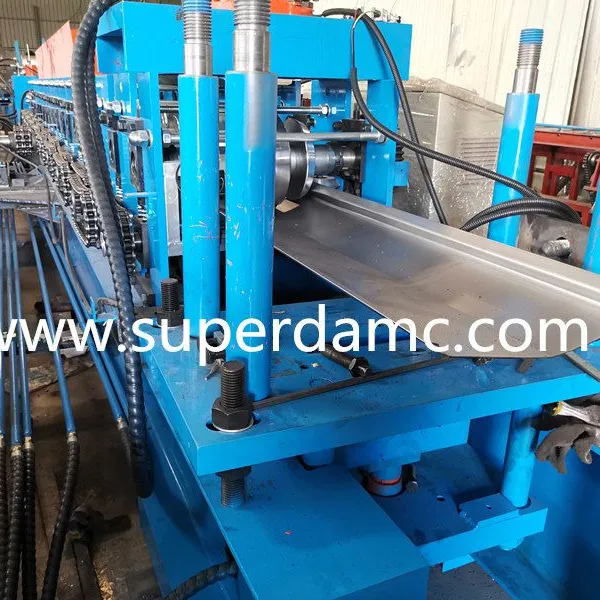

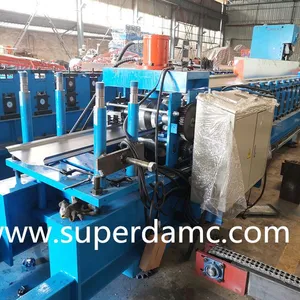

Steel roller former for different shape panels which as per client drawing. Panel roll forming line including uncoiler, straightener, roller, and cutting device.
Customized steel panel roll former manufacturer
Roll forming Line process
Uncoiler straightener 2 in 1 →roll forming machine →shear device (including knife)→ finished product rack
sales@superdamachine.com
Guarantee of Quality
Superda guarantee Channel roll former line design accordance with clients required drawing, machine is brand new. Specification and performance as stipulated in drawing and operation with good smooth. Formed din rail can be fix well with switch.
Panel roll former produciton equipment advantage
1, Roll former production line for producing steel panel.
2, PLC control system, automatically and easy handle.

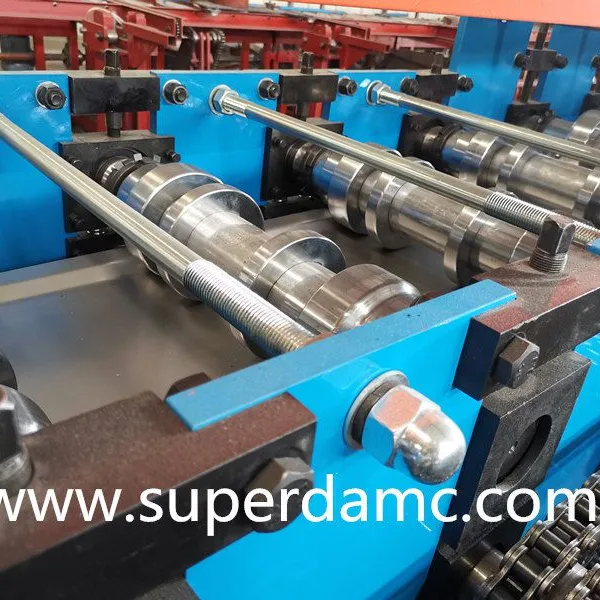

3, Good quality roller with quench process, hardness reach HRC60-65 ℃.
4,Tracking cutting system with Cr12 Cutting blade.
Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Din Rail Roll Forming Machine Cable Layout
Punch hole
Stop punching, 1 set of mold, punching length 400MM.
The material of the punching die is Cr12, HRC58-62°.

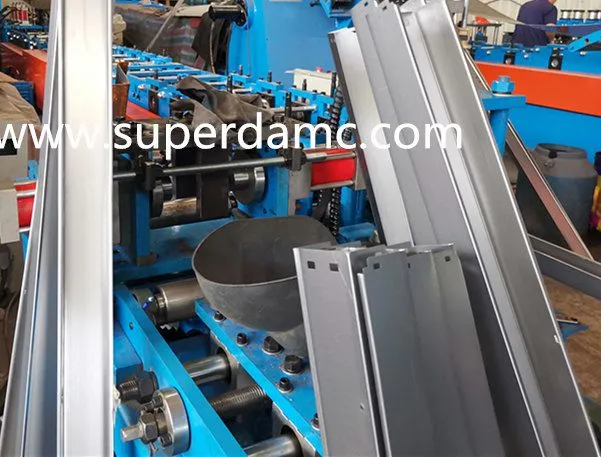

Forming and shearing:
Cutting method: hydraulic cutting (blanking) stop cutting.
Blade material: Cr12, quenched, the hardness can reach HRC60 degrees.
Hydraulic system working pressure: 16Mpa
