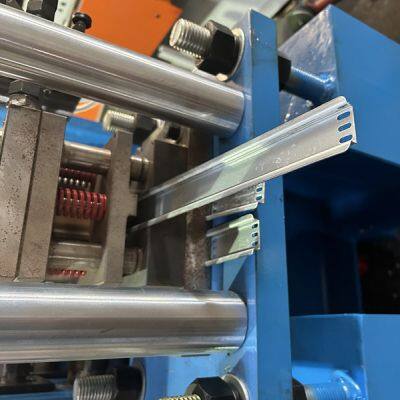

Customized MCB Channel DIN Rail Top Hat Fabricating Machine for Circuit Breaker Rail & Control Panel Board Mounting.
Circuit Breaker & Control Panel Board Using Slooted Top Hat DIN Rail mounting roll forming machine manufacturer
Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet.
sales@superdamchine.com
whatsapp 8618814355377
YX7.5-35 Servo Motor Roll Forming Machine List
Uncoiler
1) Type,Manual & not power
2) Parameter
1）Passive, discharge
2） Coil weight,< 1T
3）Coil inner D., φ470mm-φ530mm
4）Max. Width., 200mm
5) Thickness <1.6mm
MCB channel DIN rail roll forming system data
5.1 Forming Roller：8 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 4-6 m/min。
5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：3KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 40# H type using welded steel plate.
5.8 Transmission: Gear
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
