Installation Filter Panel Frame Machinery Manufacturer

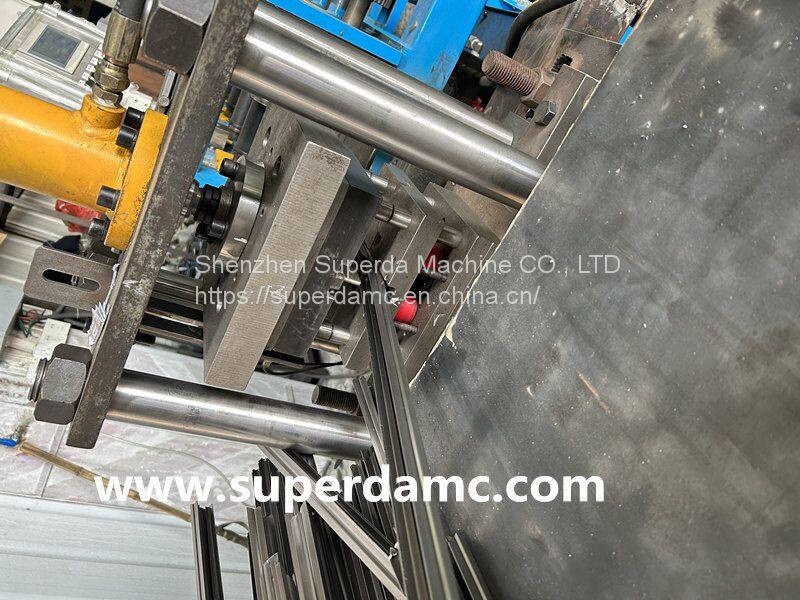

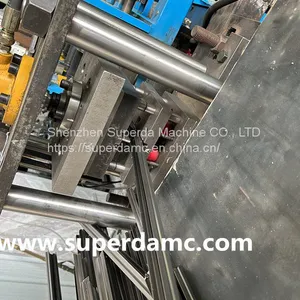

Foldable Steel Filter Panel Frames Making Machine. Manual bending enclosure steel holding frames. Size Changeable steel filter frame bending machine.

Size Changeable steel square & rectangular filter packs frame, HVAC metal frame channel roll forming machine manufacturer

Process

Uncoiler →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack

sales@superdamachine.com

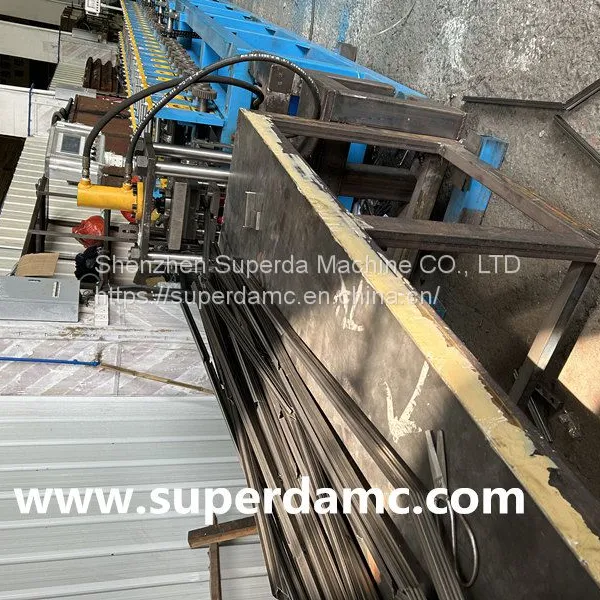

Steel pad-holding frame roll forming machine list

 Uncoiler

1、 Type：Manual Expansion

2、Parameter

1）Passive   discharge

2） Coil weight：<  2T

3）Coil inner D.：φ450mm-φ530mm

4）Max. Width.200mm

5)   Thickness .0.4-0.6mm

6)   Power.1.5kw

Servo Feeder
3.1 Max. feeding width:200mm
3.2  Feeding thickess: 0.4-1.6mm

3.3  Motor , 0.85ＫＷ(Yaskawa)

 Guide device

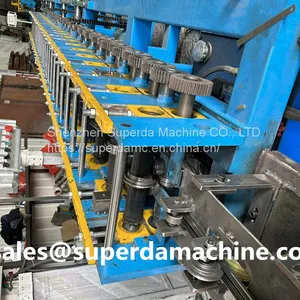

Filter pad holding frame forming system data

5.1  Forming Roller：20 stations，and add Rub-roll, To make sure the surface profile no scratches.

5.2  Side Panel：T.18mm ,A3 steel   Heavy duty 。

5.3  Rolling speeding: 5-8 m/min。

5.4  Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5  Motor power：11KW。
5.6  Main Roller ：￠65mm，45 #。
5.7  Equipment base: 45 # H type using welded steel plate.
5.8  Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
