Square & Rectangualr High-Flow Panel Air Filters & Air Filter Mesh Holder Enclosure Machinery Manufacturer

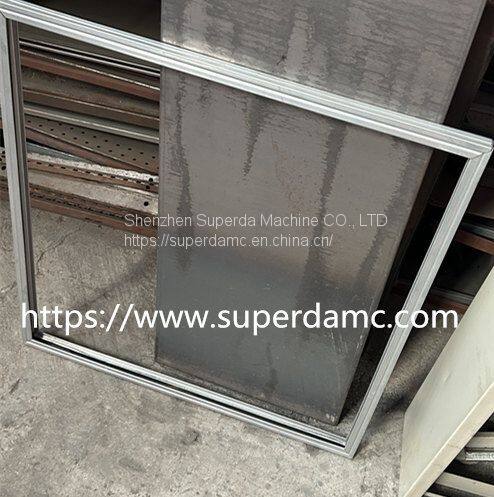

Foldable & Reliable Metal Air Frames, Filter Holding Frame Making Machine. Manual bending enclosure steel holding frames. Size Changeable steel filter frame bending machine.
Size Changeable steel pad-frame, HVAC metal frame channel roll forming machine manufacturer
Process

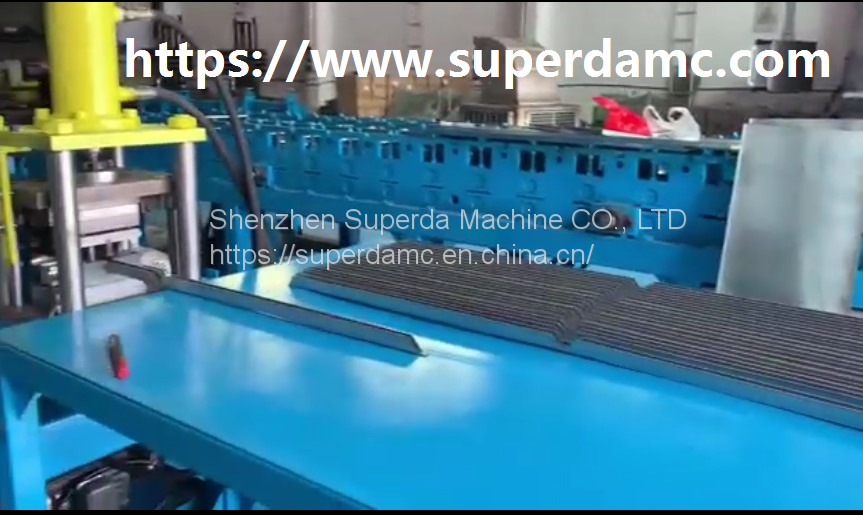

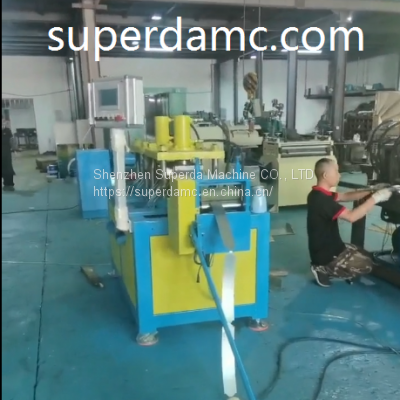

Uncoiler →Servo feeder→ Guide device → Hydraulic Punch → roll forming machine →shear device (including knife)→ finished product rack
sales@superdamachine.com
Steel pad-holding frame roll forming machine list
Uncoiler
1、 Type：Manual Expansion
2、Parameter
1）Passive discharge
2） Coil weight：< 2T
3）Coil inner D.：φ450mm-φ530mm
4）Max. Width.200mm
5) Thickness .0.4-0.6mm
6) Power.1.5kw
Servo Feeder
3.1 Max. feeding width:200mm
3.2 Feeding thickess: 0.4-1.6mm
3.3 Motor , 0.85ＫＷ(Yaskawa)
Guide device
Filter pad holding frame forming system data
5.1 Forming Roller：20 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 5-8 m/min。
5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：11KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Some components are Schneider brand devices.
Steel Pad/Filter Frame Roll forming production line including
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Servo Feeder | 1 | |
| 4 | Guide device | 1 | |
| 5 | Forming machine | 1 | |
| 6 | Hydraulic machine | 1 | With mould |
| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 | |
| 9 | Control system | 1 |
Metal filter holding forming machine accessories brand
| No. | Name | manufacturer |
| 1 | Motor & Reducer | Domestic brands |
| 2 | The main key bearing | Domestic brands |
| 3 | Inverter | Shilin |
| 4 | PLC Systems | Siemens |
| 5 | Low-voltage electrical | Schneider |
| 6 | Encoder | Omron |
| 7 | touch screen | Siemens |
| 8 | Hydraulic system | Domestic brands |
