Home > Packaging & Printing > Packing Machinery > Packing Line > Server Cabinet & Rack 9 Fold Profiles Roll Forming Machine
US$ 68000 - 68001
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Superda
Place of Origin:
China
Model Number:
YX
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
60 days
Related Products
-
Superda Power Distribution Box Roll Forming Machine ManufacturerUS$ 69000 - 69001MOQ: 1 Set -
Automatic Electrical Box Forming and Bending Machine for SaleUS$ 69000 - 69001MOQ: 1 Set
-
New Design Flush Mount Econo Board Making Machine ManufacturerUS$ 69000 - 69001MOQ: 1 Set
-
Superda Flush Mount Electrical Enclosure Production LineUS$ 69000 - 69001MOQ: 1 Set
-
High Quality Modular Metal Box Punch Bending MachineUS$ 69000 - 69009MOQ: 1 Set
Brand Name
Superda
Place of Origin
China
Model Number
YX
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1year
Weight
4600KGS
Dimension(L*W*H)
25*2.2*1.5M
Condition
New
Voltage
380V
Power(W)
15KW

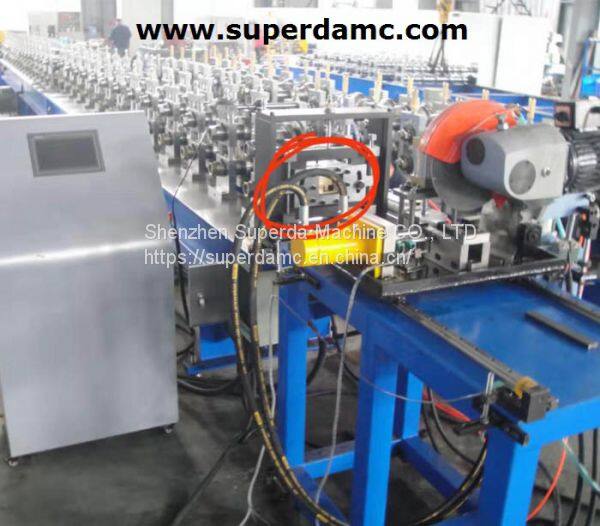

Electrical Server Cabinet 9 Fold Profiles Roll Forming Machine

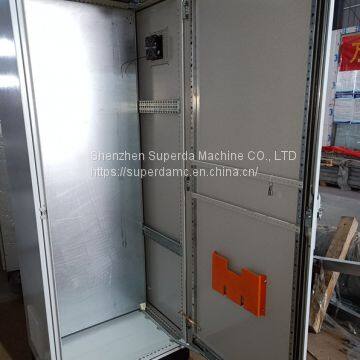

Automaitc electric factory using cabinet frame roll forming machine for electric cabinet 9 fold rack, electronic box pole, metal case frame which using in switchgear system, server case, low voltage panel building, control cabinet electrical instruments etc.
1,Technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet | |
| T.(mm) | 1.5mm | |||
| Yield Strength (Mpa) | Q235 | |||
| 2 | Forming product Width | 43.5mm | ||
| 3 | Forming speed (m/min) | 2-6m | Including welding | |
| 4 | Forming main power (KW) | 11 KW*2 pcs | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Voltage | AC380V，50Hz，3P | ||
Electronic control panel 9 bend frame production line process
2 in 1 Uncoiler Straightening→servo feeder→punch → Guide device → roll forming machine → Roller welding →shear device (including knife)→ finished product rack
Devices completed 9 fold cabinet frame prodution line
| No. | Machine name | QTY | REMARK |
| 1 | Uncoiler straightener | 1 | |
| 2 | Servo Feeder | 1 | |
| 3 | Hydraulic machine/Punch machine | 1 | With mould |
| 4 | Guide device | 1 | |
| 5 | Forming machine | 1 | |
| 6 | Roller welding | 1 | |
| 7 | Follow Shear | 1 | Including knife |
| 8 | Collect rack | 1 | |
| 9 | Control system | 1 |
Cabinet frame machine accessories brand
| No. | Name | manufacturer |
| 1 | Motor & Reducer | Domestic brands |
| 2 | The main key bearing | Domestic brands |
| 3 | Inverter | Shilin |
| 4 | PLC Systems | Siemens |
| 5 | Low-voltage electrical | Schneider |
| 6 | Encoder | Omron |
| 7 | touch screen | Siemens |
| 8 | Hydraulic system | Domestic brands |
