Steel din rail mounting rack roll forming machine manufacturer
Din rail for circuit breaker switch, which widely using in electric industry such as electric cabinet.
sales@superdamachine.com
YX7.5-35 Servo Motor Roll Forming Machine List
Uncoiler
1) Type,Manual & not power
2) Parameter
1）Passive, discharge
2） Coil weight,
3）Coil inner D., φ470mm-φ530mm
4）Max. Width., 200mm
5) Thickness
Switch breaker mounting rail roll forming system data

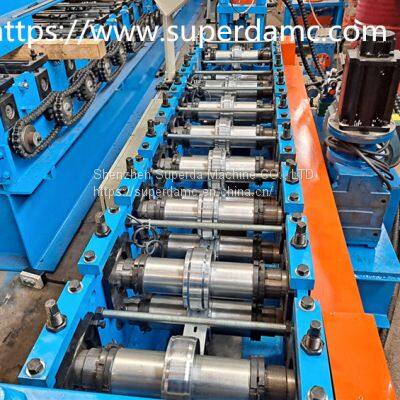

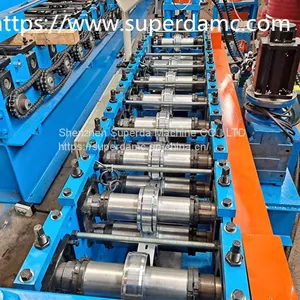

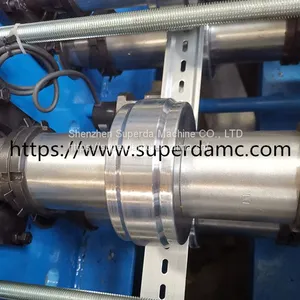

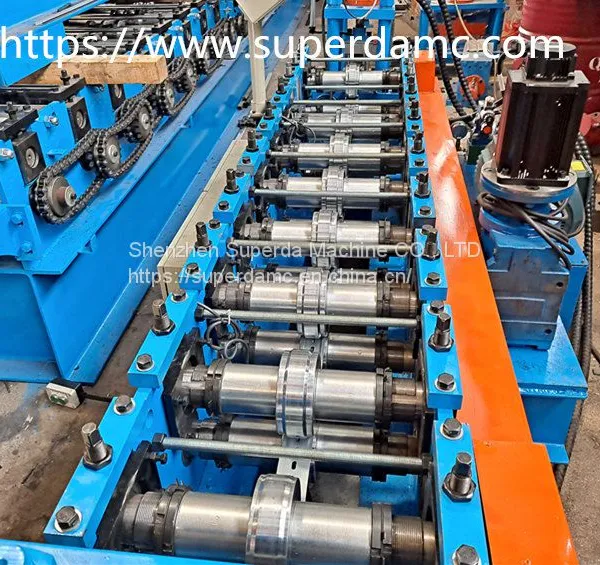

5.1 Forming Roller：8 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 4-6 m/min。
5.4 Roller material：#45，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：3KW。
5.6 Main Roller ：￠65mm，45 #。
5.7 Equipment base: 40# H type using welded steel plate.
5.8 Transmission: Gear
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
Din Rail Channel Production Electrical control system
The entire line imported PLC control, LCD touch screen, man-machine interface. People interact with the PLC. Operator setting the program to run automatically (programmable control) and control process monitoring, production line operator control and modify the control parameters, and real-time monitoring the equipment status & parameters and fault indication. Workpiece length digital setting, adjustable length can be adjustable as well. Real-time monitoring of equipment operating status and fault indication.
Operation manual / automatic two styles. With manual and automatic switching function: In the manual mode, can be stand-alone operation, easy maintenance; In automatic mode, carry out full production run, in order to start; across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operating personnel Safety.
Standard din rail profiles very easy installation in wall mounted concealed switch, circuit breaker, chopper.
