Rock Testing Packer (NQ HQ PQ) Not Pulling the Drill Pipe

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port TianJin
Payment TermsT/T Other
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	aoxing		Place of Origin	China
Model Number	50-1000mm

Product Description

The Lugeon test, sometimes call also Packer test, is an in-situ testing method widely used to estimate the avarage hydraulic conductivity of rock mass. It is indeed In situ test of formation permeability performed by measuring the volume of water taken in a section of test hole when the interval is pressurized at given pressure (10 bars -150 psi). It is used primarily in variably permeable formations under evaluation of fracturating .

Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.

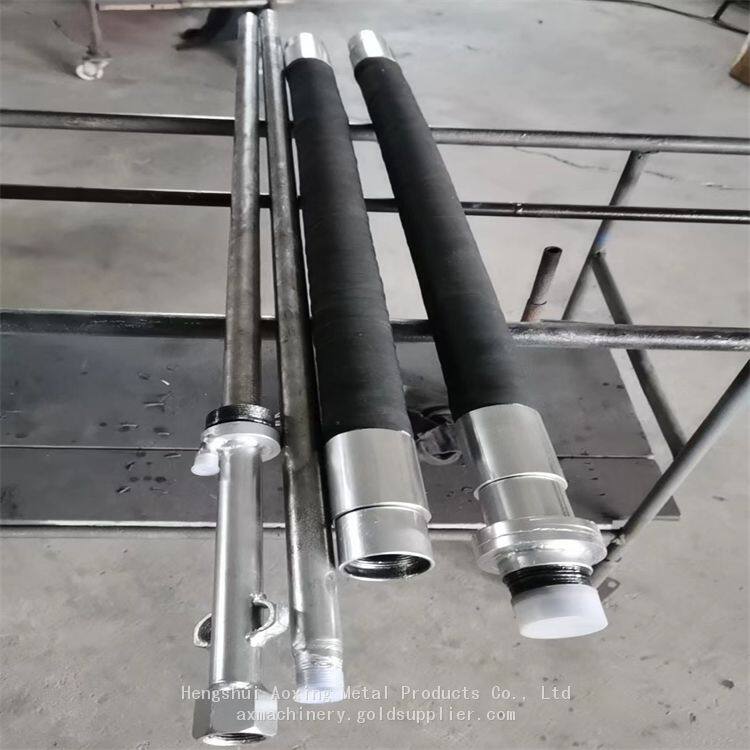

This system is an easy way of positioning inflatable packer below the wire-line core bit in open hole for conducting permeability testing. This packer assembly incorporates a positioning ring which rests on the drilling bit inner shoulder. This positioning ring end can be fitted, on request, This simple and economical device saves time for the rig operator and is available for al makes of core labels.

Different options are available:

- pressure intake at top of packer

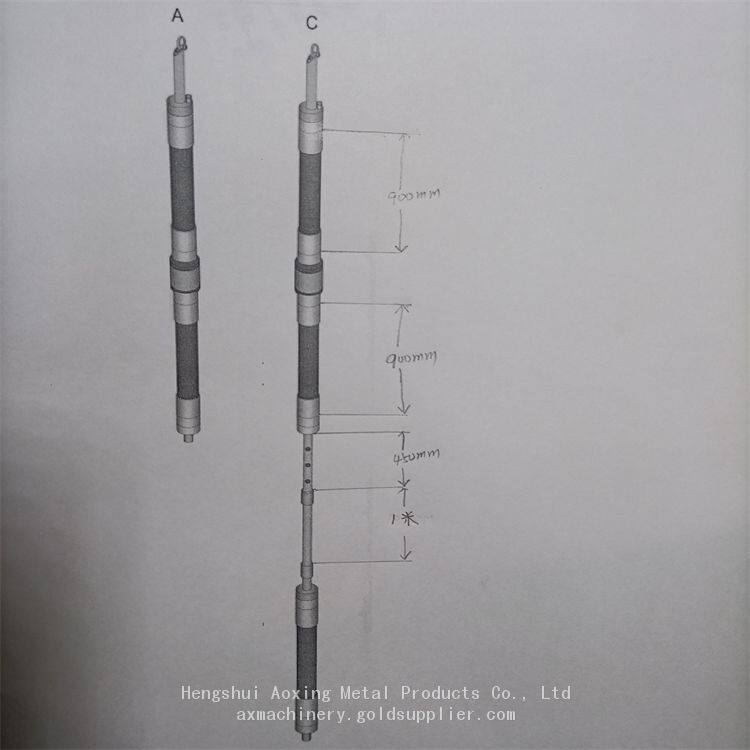

- double packer attachment and extension zone test kits

Pressure intake option Conducting a permeability test

• Remove inner tube assembly.

• Raise drill string off bottom, leaving desired test zone.

• Install seal tee assembly at top of drill string.

• Lower wire line packer assembly.

• Tighten compression cap.

• Connect composite cable to source of compressed fluid.

• Inflate wire line packer.

• Inject water through seal tee assembly wire line rods and packer into the test zone.

• Perform permeability test.

• Deflate wire line packer.

• Remove packer and seal tee assembly.

• Reinsert inner tube assembly.

• Lower drill string and resume drilling

Wire-line core barrels nominal	Bore-hole Ø (mm)	Core-bit ID (mm)	Packer Nomina l (mm)	Recommended Max. Working pressure (bar)
N	75.6	47.6	42.0	40
H	96.3	63.5	56.0	35
P	122.3	85.0	72.0	30
S	146.3	102.0	98.0	30
