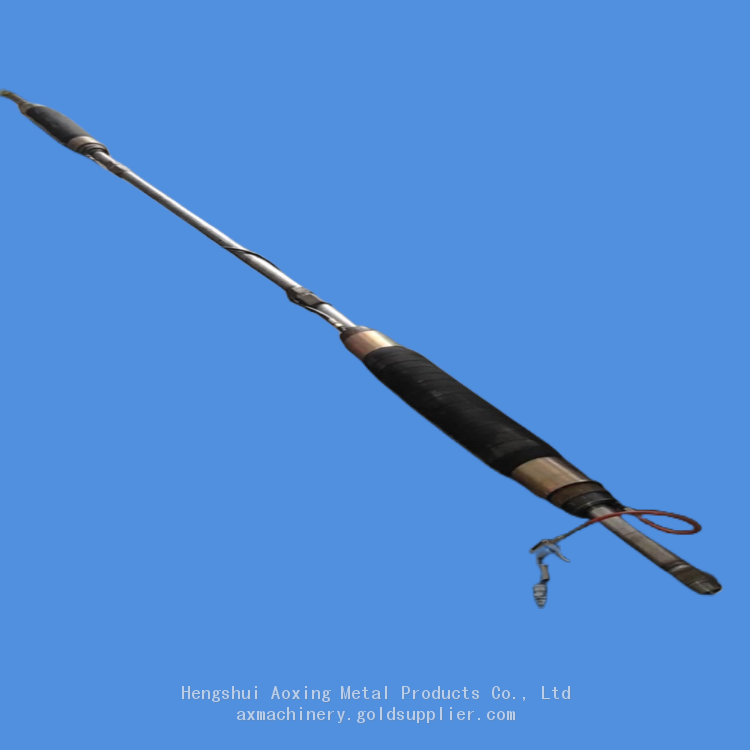

Air Inflatable Double Packer for Permeability Lugeon Test of Bq Nq Hq Pq Wireline Drilling

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 2000 Piece / Pieces per Month
Port TianJin
Payment TermsT/T Other
Delivery Detail2 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	aoxing		Place of Origin	China
Model Number	50-1000mm

Product Description

The Lugeon test, sometimes call also Packer test, is an in-situ testing method widely used to estimate the avarage hydraulic conductivity of rock mass. It is indeed In situ test of formation permeability performed by measuring the volume of water taken in a section of test hole when the interval is pressurized at given pressure (10 bars -150 psi). It is used primarily in variably permeable formations under evaluation of fracturating .

Deployment and operation is simple. The wireline permeability packer assemble is deployed down the drill rods until the bit seating sub lands on the drill rod bit. With the top seal assembly (tighthead) tightened, the packers are inflated and water is then pumped through the tighthead down the rods, through the packers and into the formation.

Main technical parameters:
Sealing hole diameter: 30-200mm (can be processed according to user requirements)
Working pressure :1-8MPa (can be processed according to user needs)
Work flow rate: 3-4.5 tons of grouting per hour
Sealing depth: 1-8000m

Model	OD (mm)	Expansion of scope (mm)	Hole dia. (mm)	Working pressure≤ (Mpa)	Compressive strength (Mpa)
Model	OD (mm)	Expansion of scope (mm)	Hole dia. (mm)	Working pressure≤ (Mpa)	Test pressure	Burst pressure
φ32-2	50±2.0	90 8-4	60	6	12	24
φ38-2	55±2.0	95 8-4	65	5	10	20
φ38-4	60±2.0	95 8-4	75	12	18	24
φ45-2	63±2.0	100 8-4	75	4	8	16
φ45-4	69±2.0	100 8-4	75	16	24	32
φ51-2	69±2.0	110 8-4	90	4	8	16
φ51-4	75±2.0	110 8-4	90	16	24	32
φ64-2	84±2.0	120 8-4	100	3	6	12
φ64-4	90±2.0	120 8-4	100	8	12	16
φ76-2	94±2.0	130 8-4	110	3	6	12
φ76-4	99±2.0	130 8-5	110	8	12	16
φ89-2	109±2.0	140 8-5	130	3	6	12
φ102-2	122±2.0	160 8-5	150	3	6	12

Hengshui Aoxing has over 10 years of market experience and is a manufacturer and supplier of grouting materials and drilling materials for water conservancy, geology, mining, tunnels, subways, construction, surveying, geotechnical and other engineering branches.

The main products include: inflatable or water filled packers, hand operated packers, high-pressure grouting pipes, air pressure hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, cement mixers, high-speed slurry making machines, slurry stations, spraying machines, Lugeon test packers, Lugeon testing equipment, drill bits, drill rods and casings, drilling rigs, water well drilling rigs, survey drilling rigs, hydraulic drilling rigs, air compressors, drilling tools, Grouting pump accessories and drilling rig accessories, etc.

The main products include inflatable or water filled packers and hand operated packers.
