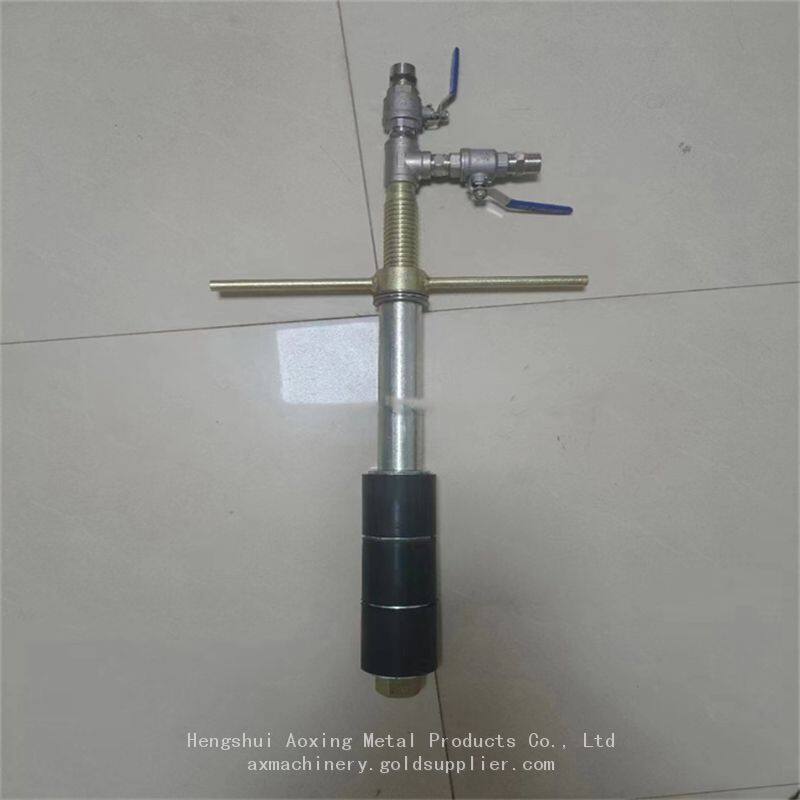

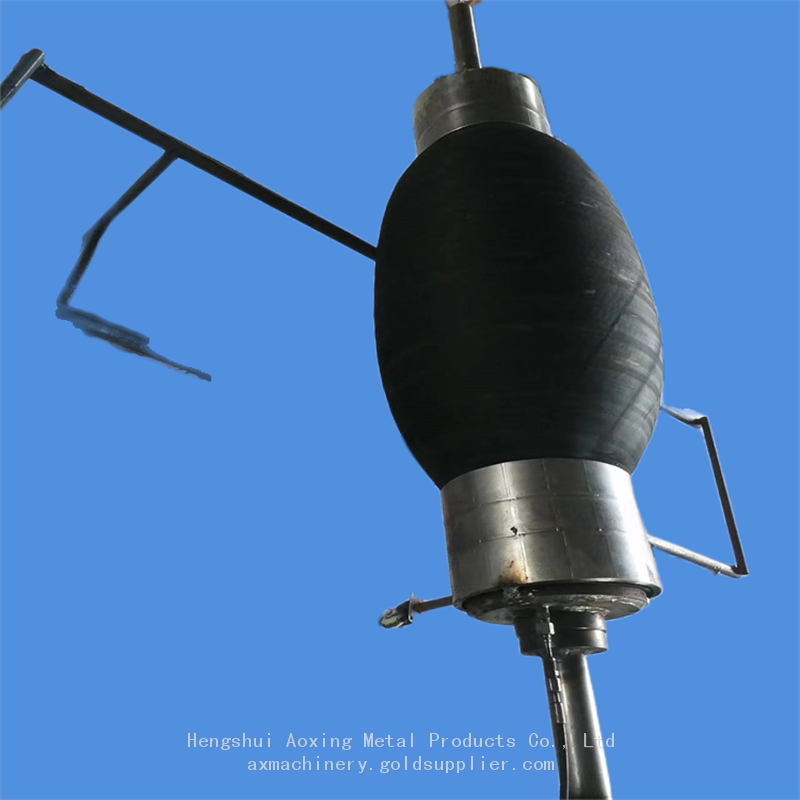

Water Pressure Test Inflatable Grout Packers For Grouting

I. PRODUCTION INTRODUCTOIN
 Adapted to a wide range of B, N, H, P drilling hole diameters and other hole dia. can be customized. The packers are highly flexible and can be inflated with different fluids, durable and versatile. The deflated packer is put into the drilled borehol, then inflated with neutral gas or liquid through an inflation hose. The range of inflatable packers can be customized and rubber length depends on the work.
These single packers can be easily transformed into double packer.
II. APPLICATIONS:
1.      Pressure Grouting in Fractured or Unconsolidated Borehole or Rock Formations
2.      Water Infusion for Dust Control in Coal Mines
3.      Methane Gas Control and Collection in Mines
4.      Sealing Elements in Soil or Boreholes
5.      Water Sampling Testing
6.      Hydraulic Fracturing Testing
7.      Permeability Testing
8.      Quality Control Testing of Tubes
9.      Bore-Hole Fluid Sampling,
10.   Bore-Hole Wall Impression Testing
11.   Industrial Piping Hydro-Testing,
12.   Water Wells Repair
13.   Aquifers Monitoring
 III. STRUCTURE:
It is a versatile tool for a wide range of hole sizes and depths.
Standard construction includes steel metal parts and a reinforced rubber sleeve element, rubber grouting hose, water/air inflation hose, manual water pump for supplying inflation water, straddle steel pipes, etc.
 Rubber membrane reinforced
Abrasive resistant rubber
Extensible Steel fabric
All above elements, size and length can be customized
IV. MAIN SPECIFICATOIN

Sealing hole diameter 30-2000mm (can be processed according to user requirements)

Working pressure 1-8MPa (can be processed according to user requirements)

Working flow: 3-4.5 tons per hour

Hole sealing depth 1-8000m

 Note: To save your time, it is important to know following basic information when choosing the rubber hose

1)      Usage:

2)      Borehole Diameters:

3)      Gland Rubber Sleeve Length (if any requirement):

4)      Single or double packer request:

5)      Steel joint pipe length (Straddle zone length if any request in double packer):

The main products include: inflatable or water filled packers, hand operated packers, high-pressure grouting pipes, air pressure hoses, FULO grouting pipes, sleeve valve grouting pipes, grouting data acquisition instruments, grouting pumps, cement mixers, high-speed slurry making machines, slurry stations, spraying machines, Lugeon test packers, Lugeon testing equipment, drill bits, drill rods and casings, drilling rigs, water well drilling rigs, survey drilling rigs, hydraulic drilling rigs, air compressors, drilling tools, Grouting pump accessories and drilling rig accessories, etc.
