Borehole Air and Water Inflatable Grouting Packer
- 100000 Piece / Pieces per Month
- TianJin
- T/T Other
- 1 days
You May Like
-
Borehole Grouting Inflatable Packer Inflated with Air Water
-
Grout Injection Inflatable Packer Manufacturer
-
Cement/Water Injection Inflatable Packer For Borehole
-
Rubber Hole Grout inflatable Packer inflatable Grouting Packer
-
Water Injection rubber isolate Packer/pneumatic inflatable openhole packer for water test and grout injection
-
Water Pressure Test Inflatable Grout Packers For Grouting
Product Details
| Brand Name | aoxing | Place of Origin | China | |
| Model Number | 40-1000mm |
Product Description
APPLICATIONS:
1. Pressure Grouting in Fractured or Unconsolidated Borehole or Rock Formations
2. Water Infusion for Dust Control in Coal Mines
3. Methane Gas Control and Collection in Mines
4. Sealing Elements in Soil or Boreholes
5. Water Sampling Testing
6. Hydraulic Fracturing Testing
7. Permeability Testing
8. Quality Control Testing of Tubes
9. Bore-Hole Fluid Sampling,
10. Bore-Hole Wall Impression Testing
11. Industrial Piping Hydro-Testing,
12. Water Wells Repair
13. Aquifers Monitoring
STRUCTURE:
It is a versatile tool for a wide range of hole sizes and depths.

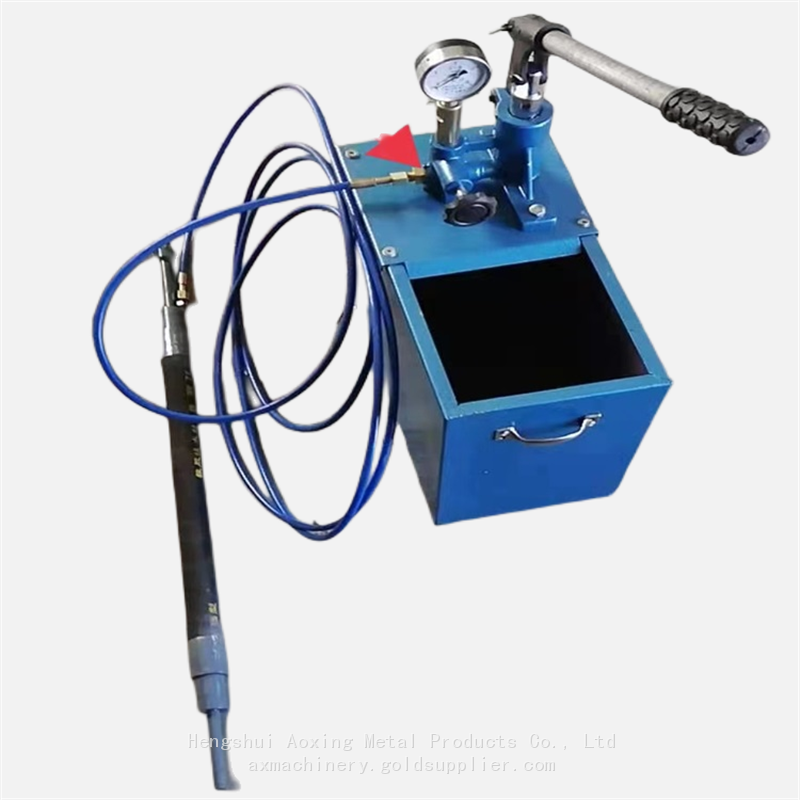

Standard construction includes steel metal parts and a reinforced rubber sleeve element, rubber grouting hose, water/air inflation hose, manual water pump for supplying inflation water, straddle steel pipes, etc.
Rubber membrane reinforced
Abrasive resistant rubber
Extensible Steel fabric
All above elements, size and length can be customized
MAIN SPECIFICATOIN
Sealing hole diameter 30-2000mm (can be processed according to user requirements)
Working pressure 1-8MPa (can be processed according to user requirements)
Working flow: 3-4.5 tons per hour
Hole sealing depth 1-8000m
SIZE | I.D(mm) | O.D(mm) | Expansion Range(mm) | Aperture(mm) | W.P(Mpa) | T.P(Mpa) | B.P(Mpa) |
φ16-2 | 16±0.5 | 30±1.5 | 50 +8/-2 | 40 | 8 | 16 | 32 |
φ16-4 | 16±0.5 | 36±1.5 | 50 +8/-2 | 40 | 20 | 30 | 40 |
φ19-2 | 19±0.5 | 36±1.5 | 60 +8/-2 | 45 | 8 | 16 | 32 |
φ19-4 | 19±0.5 | 40±2.0 | 60 +8/-2 | 45 | 20 | 30 | 40 |
Φ22-2 | 22±0.5 | 39±2.0 | 80 +8/-4 | 50 | 6 | 12 | 24 |
Φ22-4 | 22±0.5 | 45±2.0 | 80 +8/-4 | 50 | 20 | 30 | 40 |
Φ25-2 | 25±0.5 | 42±2.0 | 90 +8/-4 | 65 | 6 | 12 | 24 |
Φ25-4 | 25±0.5 | 48±2.0 | 85 +8/-4 | 55 | 16 | 24 | 32 |
Φ32-2 | 32±0.5 | 50±2.0 | 90 +8/-4 | 60 | 6 | 12 | 24 |
Φ32-4 | 32±0.5 | 54±2.0 | 90 +8/-4 | 60 | 16 | 24 | 32 |
Φ38-2 | 38±0.5 | 55±2.0 | 95 +8/-4 | 65 | 5 | 10 | 20 |
Φ38-4 | 38±0.5 | 60±2.0 | 95 +8/-4 | 65 | 16 | 24 | 32 |
Φ45-2 | 45±0.5 | 63±2.0 | 100 +8/-4 | 75 | 4 | 8 | 16 |
Φ45-4 | 45±0.5 | 69±2.0 | 100 +8/-4 | 75 | 16 | 24 | 32 |
Φ51-2 | 51±0.5 | 69±2.0 | 110 +8/-4 | 90 | 4 | 8 | 16 |
Φ51-4 | 51±0.5 | 75±2.0 | 110 +8/-4 | 90 | 16 | 24 | 32 |
Φ64-2 | 64±0.5 | 84±2.0 | 120 +8/-4 | 100 | 3 | 6 | 12 |
Φ64-4 | 64±0.5 | 90±2.0 | 120 +8/-4 | 100 | 8 | 12 | 16 |
Φ76-2 | 76±0.5 | 94±2.0 | 130 +8/-5 | 110 | 3 | 6 | 12 |
Φ76-4 | 76±0.5 | 99±2.0 | 130 +8/-5 | 110 | 8 | 12 | 16 |
Φ89-2 | 89±0.5 | 109±2.0 | 140 +8/-5 | 130 | 3 | 6 | 12 |
Φ89-4 | 89±0.5 | 114±2.0 | 140 +8/-5 | 130 | 8 | 12 | 16 |
Φ102-2 | 102±0.5 | 122±2.0 | 160 +8/-5 | 150 | 3 | 6 | 12 |
Φ102-4 | 102±0.5 | 128±2.0 | 160 +8/-5 | 150 | 8 | 12 | 16 |
Φ127-2 | 102±0.5 | 141±2.0 | 160 +8/-5 | 180 | 3 | 6 | 12 |
Note: To save your time, it is important to know following basic information when choosing the rubber hose
1) Usage:
2) Borehole Diameters:
3) Gland Rubber Sleeve Length (if any requirement):
4) Single or double packer request:
5) Steel joint pipe length (Straddle zone length if any request in double packer):
