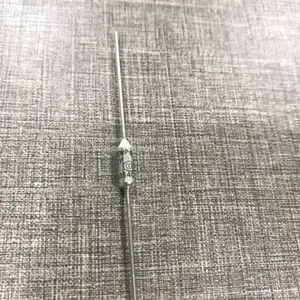

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc thumbnail-1
MICROTEMP® 84 °C Thermal Links From Therm-O-Disc thumbnail-2
MICROTEMP® 84 °C Thermal Links From Therm-O-Disc thumbnail-3
MICROTEMP® 84 °C Thermal Links From Therm-O-Disc thumbnail-4

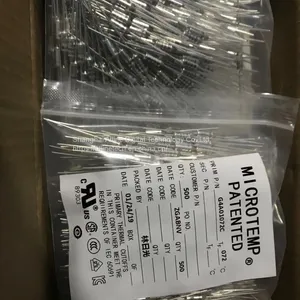

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc thumbnail-5

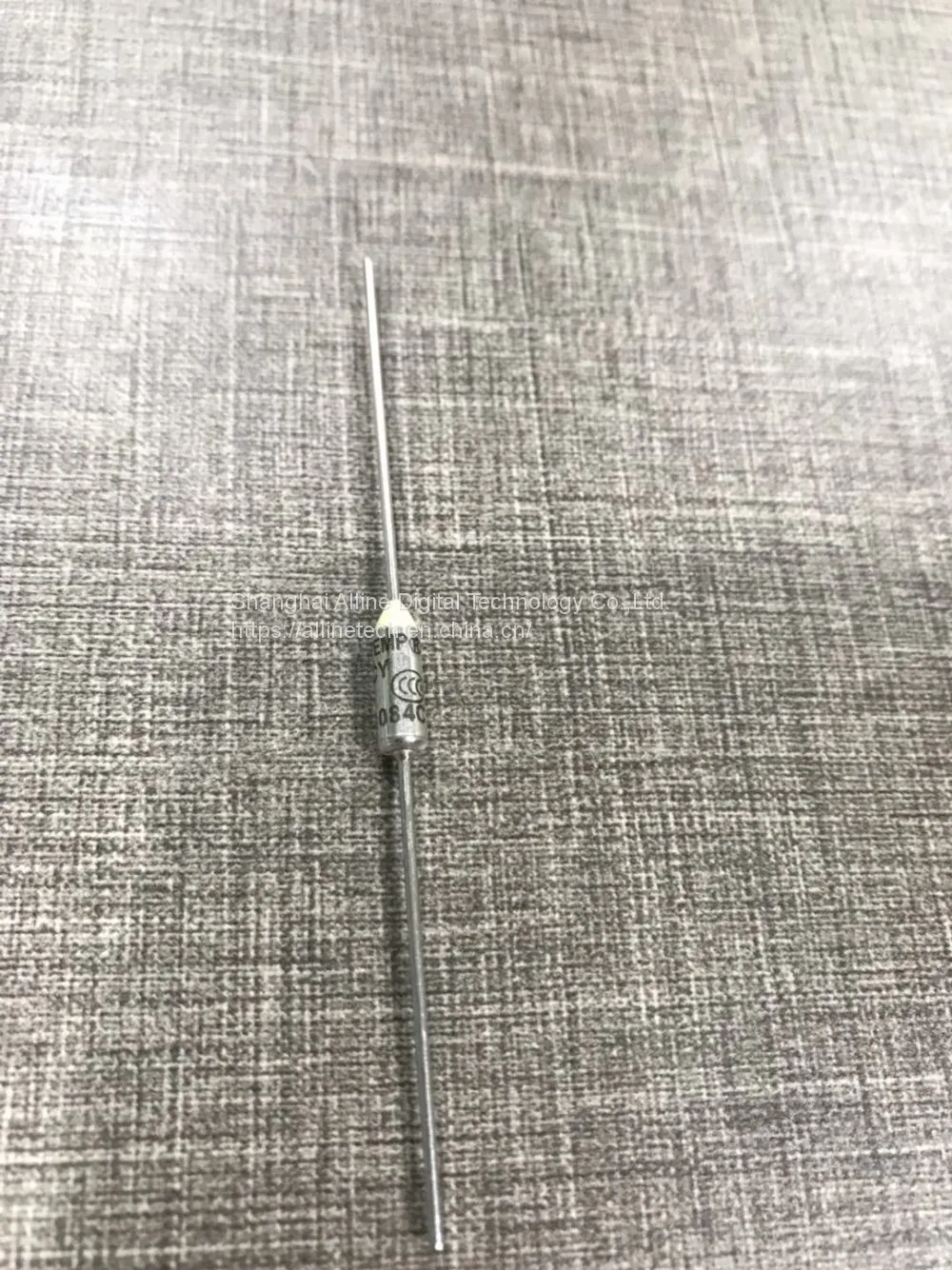

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc photo-1

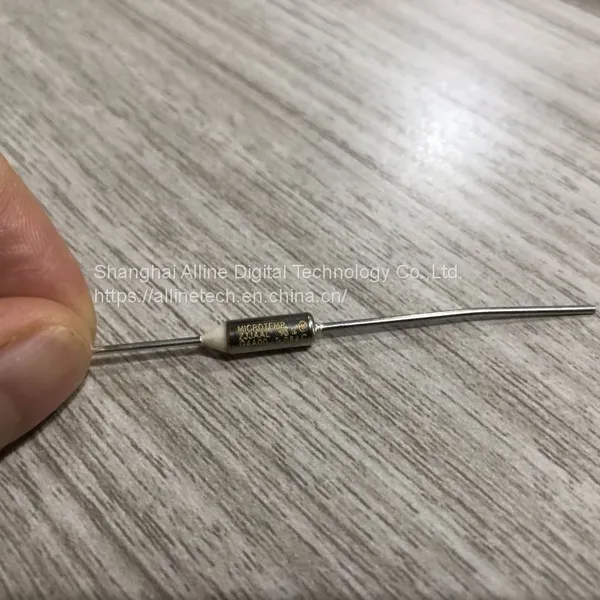

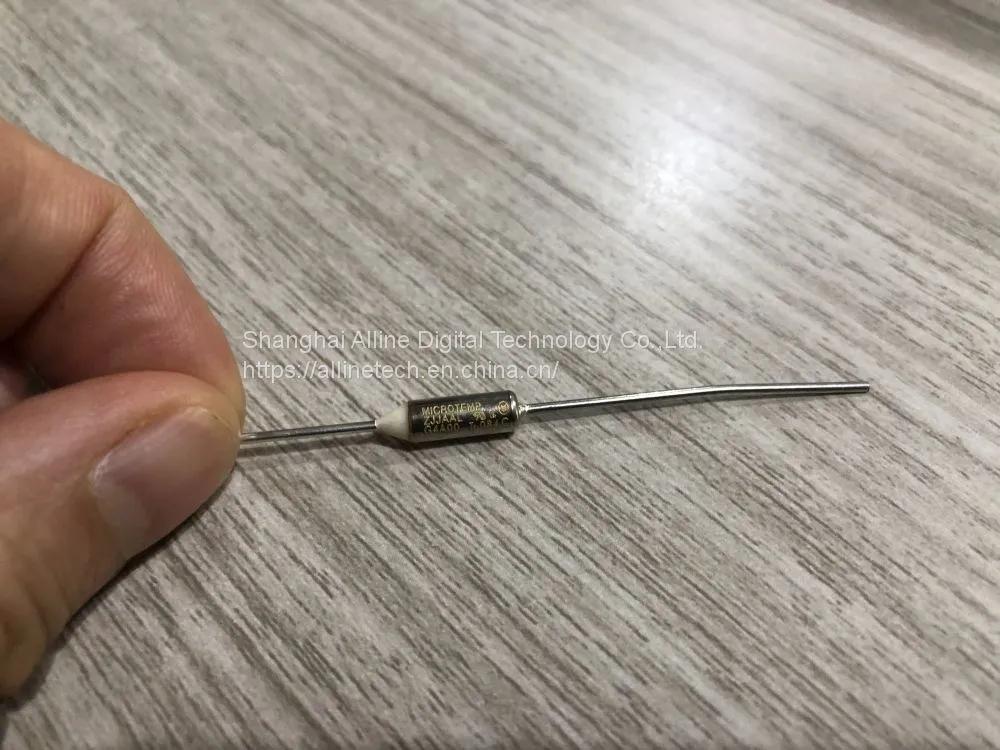

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc photo-2

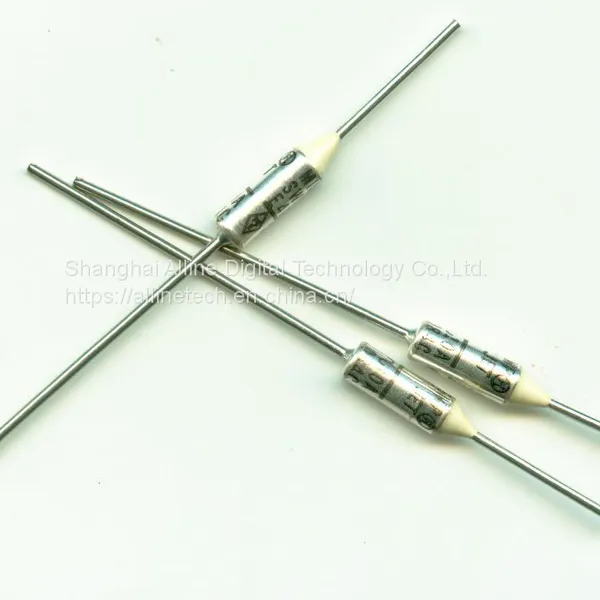

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc photo-3

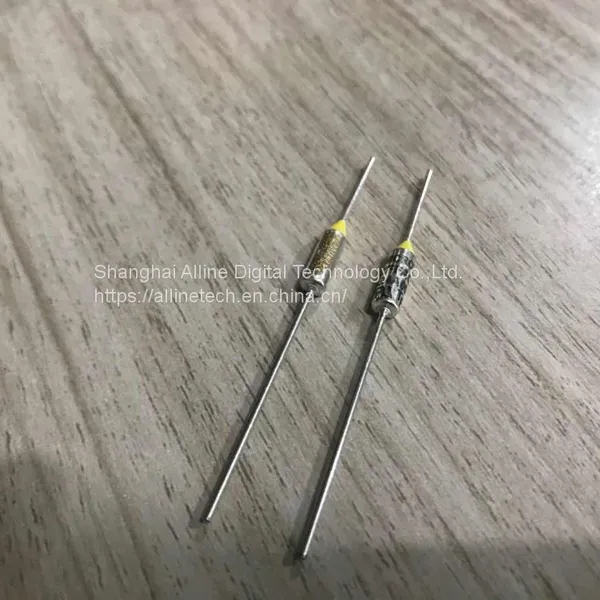

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc photo-4

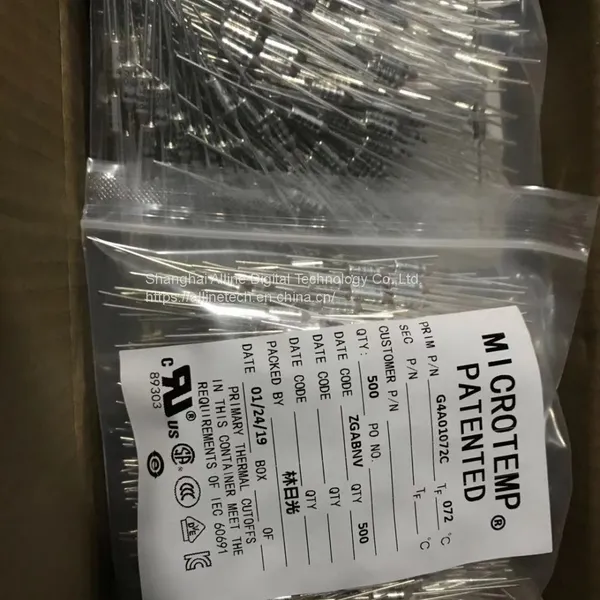

MICROTEMP® 84 °C Thermal Links From Therm-O-Disc photo-5
Negotiable MOQ: 2000 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Temperature Fuse
Shape:
Tablet
Breaking Capacity:
High
Contact Supplier Request Quote Chat Now
Shanghai Alline Digital Technology Co.,Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Hongkong
Delivery Detail:
1 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Temperature Fuse
Shape Tablet
Breaking Capacity High
Standard Other, CCC UL VDE JET KC
Fusing Speed F
Fusing Device Discoloration
Usage Low Voltage
Specification G4A50084C G4A01084C
Trademark MICROTEMP
Origin China

The MICROTEMP® G4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC.

Standard Type: G4A00084C / G4A01084C / G4A50084C / G4A51084C

                         E4A00084C / E4A01084C / E4A50084C / E4A51084C

Electrical Ratings & Agency Recognition:

 UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC

 VDE -- 10A/250VAC

 CCC -- 10A/250VAC

 PSE JET -- 10A/250VAC

 KC -- 10A/250VAC

Overall Length: 63.8mm(G4A00084C) / 82.9mm(G4A01084C)

Rated Functioning Temperature (Tf): 84°C

Holding Temperature (Th): 69°C

Maximum Temperature Limit (Tm): 220°C


The MICROTEMP® G5 Thermal Fuse is rated for continuous operating currents up to 20 amps @ 250VAC.

Standard Type: G5A00084C / G5A01084C / G5A50084C / G5A51084C

                         E5A00084C / E5A01084C / E5A50084C / E5A51084C

Electrical Ratings & Agency Recognition:

 UL/CSA --20A/250VAC, 25A/120VAC,21A/240VAC,20A/277VAC

 VDE -- 20A/250VAC

 CCC -- 20A/250VAC

 PSE JET -- 15A/250VAC

 KC -- 16A/250VAC

Overall Length: 63.8mm(G5A00084C) / 82.9mm(G5A01084C)

Rated Functioning Temperature (Tf): 84°C

Holding Temperature (Th): 69°C

Maximum Temperature Limit (Tm): 220°C


The MICROTEMP® G6 Thermal Fuse is rated for continuous operating currents up to 16 amps @ 250VAC.

Standard Type: G6A00084C / G6A01084C

Electrical Ratings & Agency Recognition:

 UL/CSA --16A/250VAC

 VDE -- 16A/250VAC

 CCC -- 16A/250VAC

 PSE JET -- 15A/250VAC

Overall Length: 63.8mm(G6A00084C) / 82.9mm(G6A01084C)

Rated Functioning Temperature (Tf): 84°C

Holding Temperature (Th): 69°C

Maximum Temperature Limit (Tm): 220°C


The MICROTEMP® G7/E7 Thermal Fuse is rated for continuous operating currents up to 5 amps @ 250VAC and 5 amps @ 24VDC  .

Standard Type: G7F01084C/ G7F51084C / E7F01084C  / E7F51084C

Electrical Ratings & Agency Recognition:

 UL/CSA -- 5A/250VAC,5A/24VDC

 VDE -- 5A/250VAC

 CCC -- 5A/250VAC,5A/24VDC

 PSE JET -- 5A/250VAC

KC -- 5A/250VAC

Overall Length: 82.6mm

Rated Functioning Temperature (Tf): 84°C

Holding Temperature (Th): 69°C

Maximum Temperature Limit (Tm): 125°C


The MICROTEMP® G8 Thermal Fuse is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.

Standard Type: G8A00084C / G8A01084C / G8A50084C / G8A51084C

                         E8A00084C / E8A01084C / E8A50084C / E8A51084C

Electrical Ratings & Agency Recognition:

 UL/CSA --20A/277VAC, 25A/250VAC

 VDE -- 25A/250VAC

 CCC -- 25A/250VAC

 PSE JET -- 25A/250VAC

Overall Length: 63.8mm(G8A00084C) / 82.9mm(G8A01084C)

Rated Functioning Temperature (Tf): 84°C

Holding Temperature (Th): 69°C

Maximum Temperature Limit (Tm): 220°C

Product Tags: Therm-O-Disc 84°C thermal link , Therm-O-Disc 84°C thermal cutoffs , T-O-D 84°C thermal fuses
