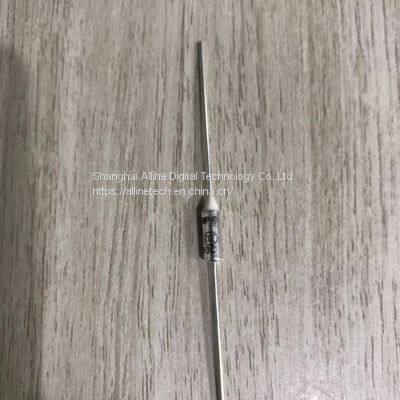

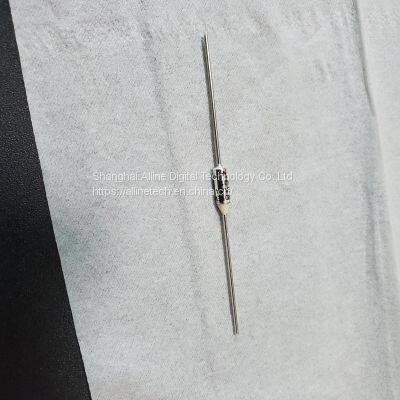

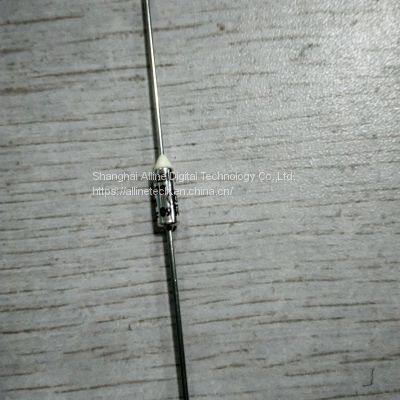

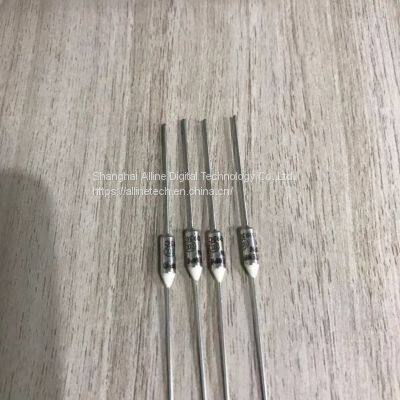

MICROTEMP® 93 °C Thermal Fuses From Therm-O-Disc

The MICROTEMP® G4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC.

Standard Type: G4A00093C / G4A01093C / G4A50093C / G4A51093C

                         E4A00093C / E4A01093C / E4A50093C / E4A51093C

Electrical Ratings & Agency Recognition:

 UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC

 VDE -- 10A/250VAC

 CCC -- 10A/250VAC

 PSE JET -- 10A/250VAC

 KC -- 10A/250VAC

Overall Length: 63.8mm(G4A00093C) / 82.9mm(G4A01093C)

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 300°C

The MICROTEMP® G5 Thermal Fuse is rated for continuous operating currents up to 20 amps @ 250VAC.

Standard Type: G5A00093C / G5A01093C / G5A50093C / G5A51093C

                         E5A00093C / E5A01093C / E5A50093C / E5A51093C

Electrical Ratings & Agency Recognition:

 UL/CSA --20A/250VAC, 25A/120VAC,21A/240VAC,20A/277VAC

 VDE -- 20A/250VAC

 CCC -- 20A/250VAC

 PSE JET -- 15A/250VAC

 KC -- 16A/250VAC

Overall Length: 63.8mm(G5A00093C) / 82.9mm(G5A01093C)

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 410°C

The MICROTEMP® G7/E7 Thermal Fuse is rated for continuous operating currents up to 5 amps @ 250VAC and 5 amps @ 24VDC  .

Standard Type: G7F01093C/ G7F51093C / E7F01093C  / E7F51093C

Electrical Ratings & Agency Recognition:

 UL/CSA -- 5A/250VAC,5A/24VDC

 VDE -- 5A/250VAC

 CCC -- 5A/250VAC,5A/24VDC

 PSE JET -- 5A/250VAC

KC -- 5A/250VAC

Overall Length: 82.6mm

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 140°C

The MICROTEMP® G8 Thermal Fuse is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.

Standard Type: G8A00093C / G8A01093C / G8A50093C / G8A51093C

                         E8A00093C / E8A01093C / E8A50093C / E8A51093C

Electrical Ratings & Agency Recognition:

 UL/CSA --20A/277VAC, 25A/250VAC

 VDE -- 25A/250VAC

 CCC -- 25A/250VAC

 PSE JET -- 25A/250VAC

Overall Length: 63.8mm(G8A00093C) / 82.9mm(G8A01093C)

Rated Functioning Temperature (Tf): 93°C

Holding Temperature (Th): 78°C

Maximum Temperature Limit (Tm): 410°C
