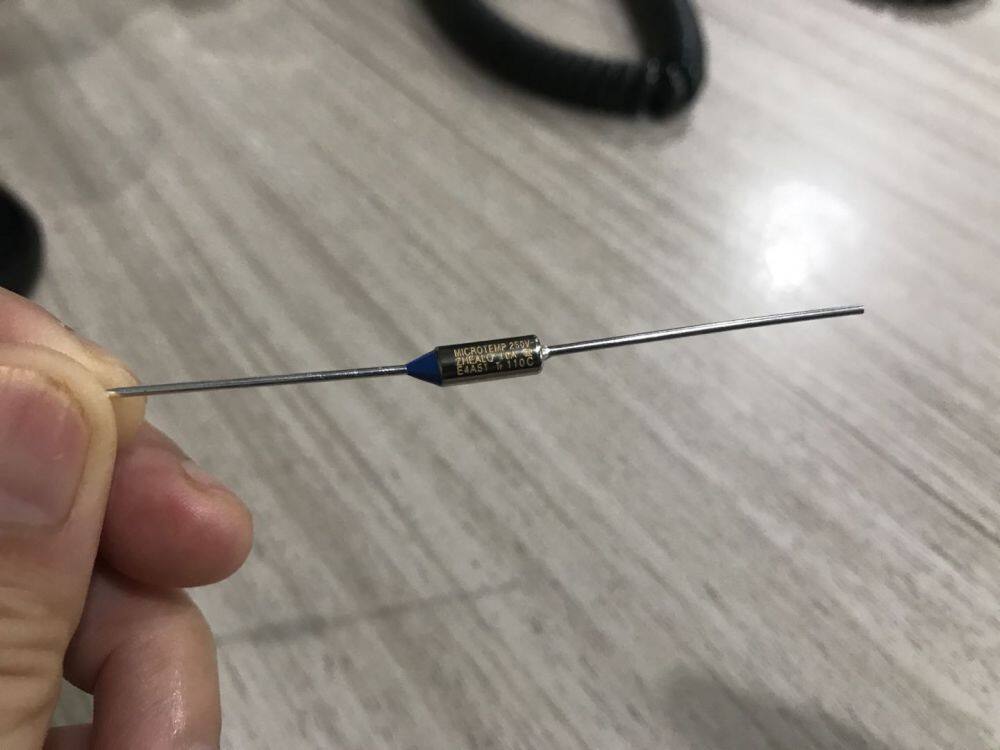

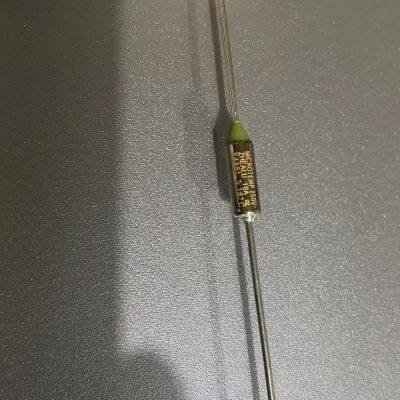

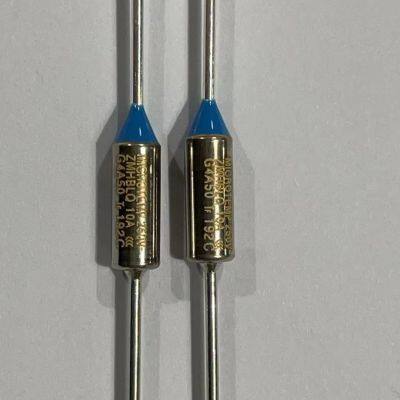

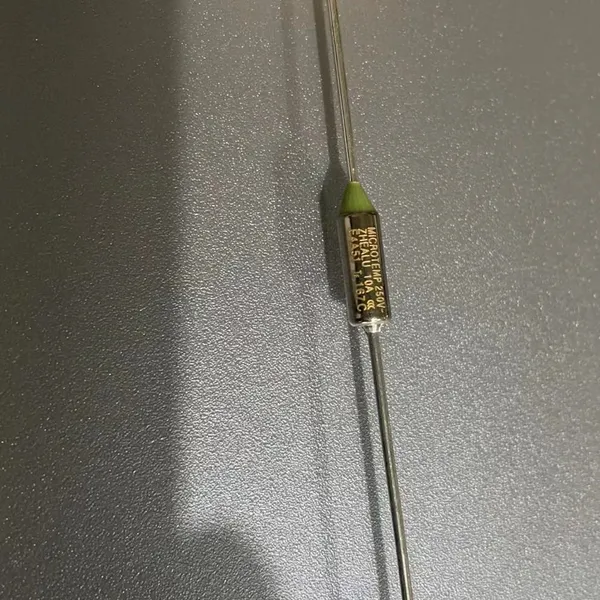

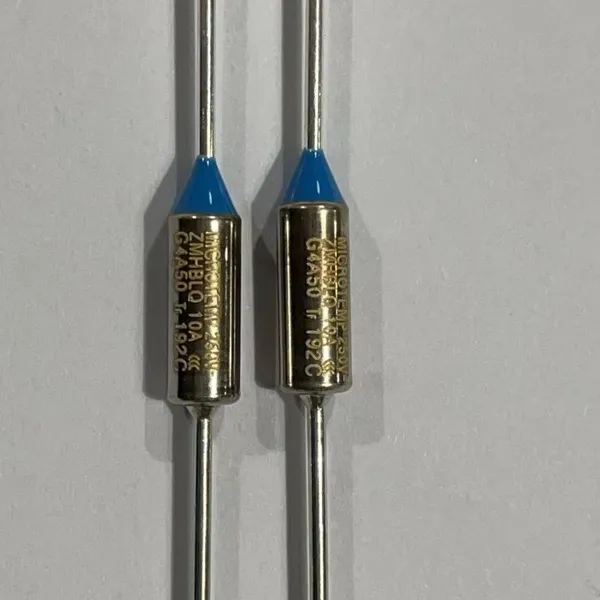

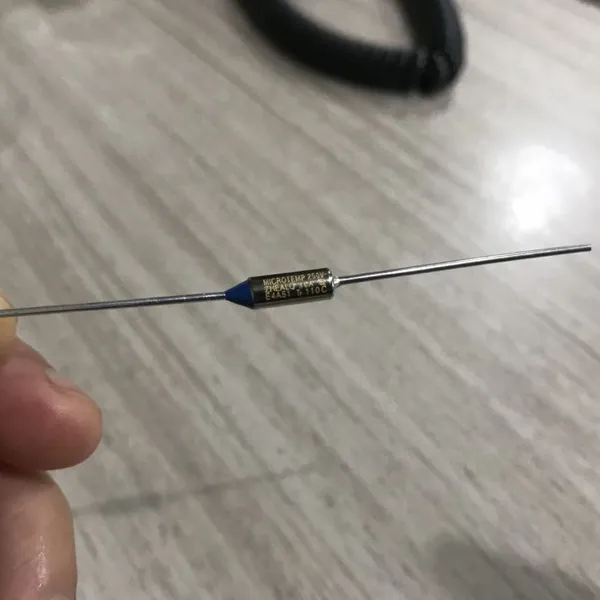

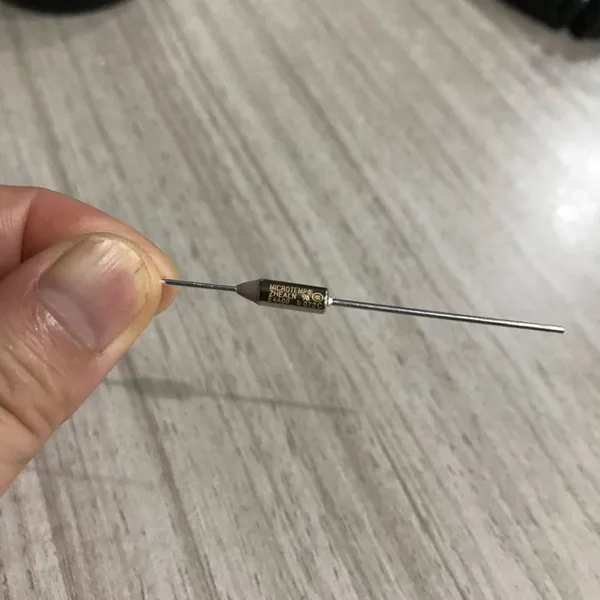

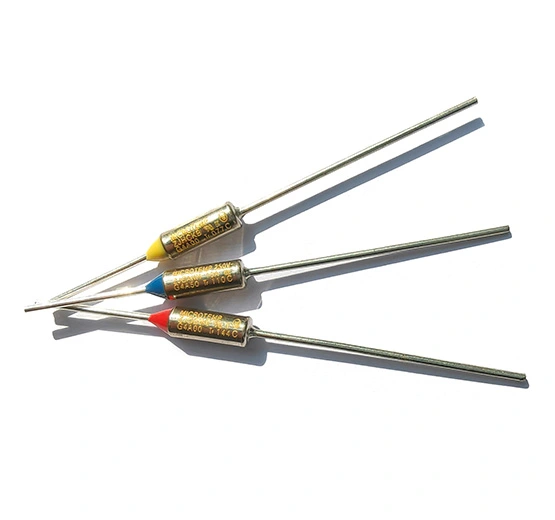

Therm-O-Disc MICROTEMP G4A50/G4A51/E4A50/E4A51 Thermal Cutoffs JET 250V ~ 10A

MICROTEMP® thermal fuse from Therm-O-Disc offers the broadest combination of Ministry of EconomyTrade and Industry of Japan certified temperatures and electrical loads.

The active trigger mechanism of the thermal fuse is an exclusively formulated, electrically nonconductive pellet. Under normal operating temperatures, the solid pellet holds spring loaded contacts closed. When a predetermined temperature is reached, the pellet melts, allowing the compression spring to relax. The trip spring then slides the contact away from the lead and the circuit is opened.

The MICROTEMP® G4 and E4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC.

Electrical Ratings: 10A/250VAC

Agency Recognition: PSE JET

Overall Length: 63.8mm(Standard Leads) / 82.9mm(Long leads)

Standard Type:

MICROTEMP  250~

Zxxxxx 10A CCC

E4A50   TFXXXC

MICROTEMP  250~

Zxxxxx 10A CCC

E4A51   TFXXXC

MICROTEMP  250~

Zxxxxx 10A CCC

G4A50   TFXXXC

MICROTEMP  250~

Zxxxxx 10A CCC

G4A51   TFXXXC

Part Number:

 E4A51 TF072C、E4A50 TF072C、E4A51 TF073C、E4A50 TF073C、E4A51 TF077C、E4A50 TF077C、E4A51 TF084C、E4A50 TF084C、E4A51 TF093C、E4A50 TF093C、E4A51 TF098C、E4A50 TF098C、E4A51 TF104C、E4A50 TF104C、E4A51 TF110C、E4A50 TF110C、E4A51 TF117C、E4A50 TF117C、E4A51 TF121C、E4A50 TF121C、E4A51 TF128C、E4A50 TF128C、E4A51 TF134C、E4A50 TF134C、E4A51 TF141C、E4A50 TF141C、E4A51 TF144C、E4A50 TF144C、E4A51 TF152C、E4A50 TF152C、E4A51 TF158C、E4A50 TF158C、E4A51 TF167C、E4A50 TF167C、E4A51 TF172C、E4A50 TF172C、E4A51 TF184C、E4A50 TF184C、E4A51 TF190C、E4A50 TF190C、E4A51 TF192C、E4A50 TF192C、E4A51 TF205C、E4A50 TF205C、E4A51 TF216C、E4A50 TF216C、E4A51 TF229C、E4A50 TF229C、E4A51 TF240C、E4A50 TF240C、E4A51 TF257C、E4A50 TF257C

G4A51 TF072C、G4A50 TF072C、G4A51 TF073C、G4A50 TF073C、G4A51 TF077C、G4A50 TF077C、G4A51 TF084C、G4A50 TF084C、G4A51 TF093C、G4A50 TF093C、G4A51 TF098C、G4A50 TF098C、G4A51 TF104C、G4A50 TF104C、G4A51 TF110C、G4A50 TF110C、G4A51 TF117C、G4A50 TF117C、G4A51 TF121C、G4A50 TF121C、G4A51 TF128C、G4A50 TF128C、G4A51 TF134C、G4A50 TF134C、G4A51 TF141C、G4A50 TF141C、G4A51 TF144C、G4A50 TF144C、G4A51 TF152C、G4A50 TF152C、G4A51 TF158C、G4A50 TF158C、G4A51 TF167C、G4A50 TF167C、G4A51 TF172C、G4A50 TF172C、G4A51 TF184C、G4A50 TF184C、G4A51 TF190C、G4A50 TF190C、G4A51 TF192C、G4A50 TF192C、G4A51 TF205C、G4A50 TF205C、G4A51 TF216C、G4A50 TF216C、G4A51 TF229C、G4A50 TF229C、G4A51 TF240C、G4A50 TF240C、G4A51 TF257C、G4A50 TF257C
