MICROTEMP® 77 °C Thermal Links From Therm-O-Disc

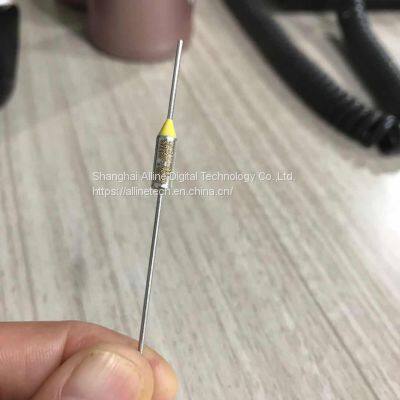

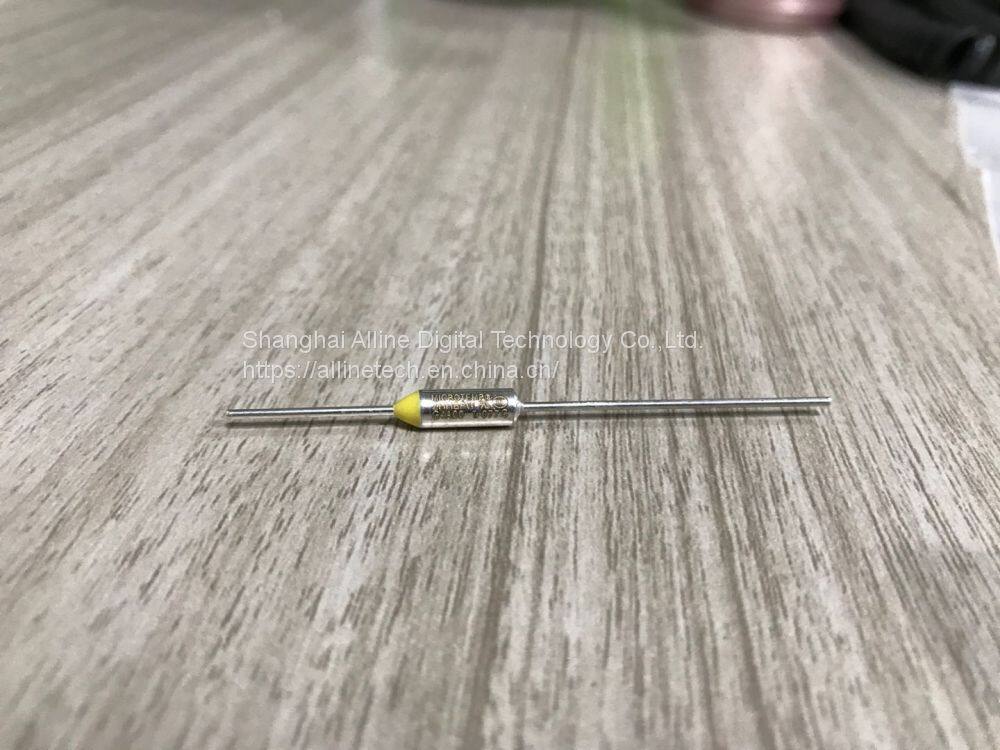

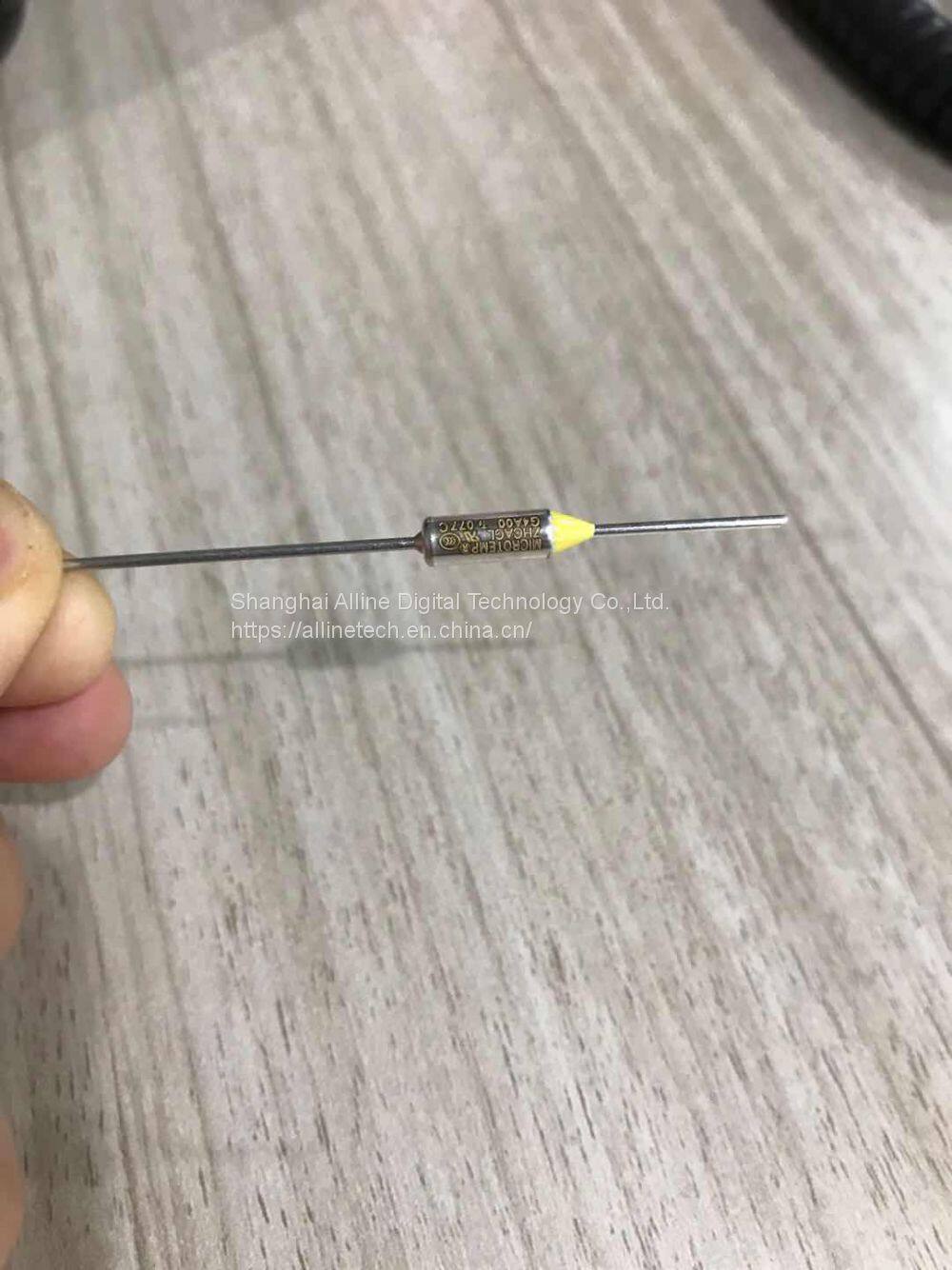

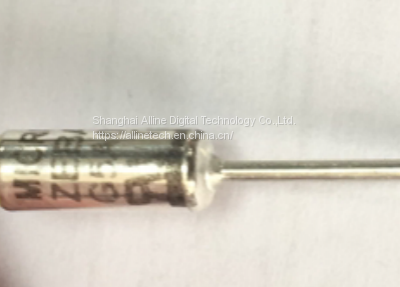

The MICROTEMP® G4 Thermal Fuse is rated for continuous operating currents up to 10 amps @ 250VAC.

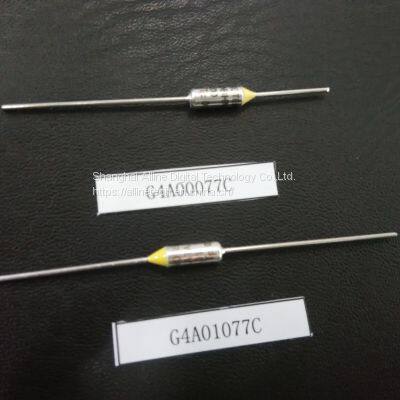

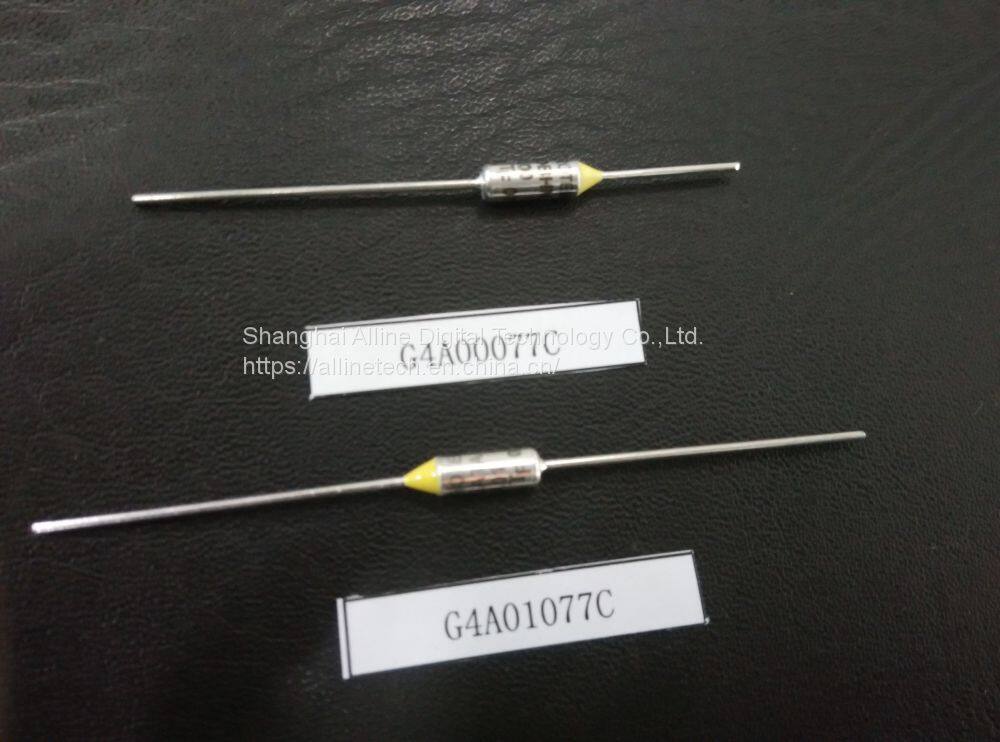

Standard Type: G4A00077C / G4A01077C / G4A50077C / G4A51077C

                         E4A00077C / E4A01077C / E4A50077C / E4A51077C

Electrical Ratings & Agency Recognition:

 UL/CSA --10A/250VAC, 15A/120VAC,5A/24VDC

 VDE -- 10A/250VAC

 CCC -- 10A/250VAC

 PSE JET -- 10A/250VAC

 KC -- 10A/250VAC

Overall Length: 63.8mm(G4A00077C) / 82.9mm(G4A01077C)

Rated Functioning Temperature (Tf): 77°C

Holding Temperature (Th): 62°C

Maximum Temperature Limit (Tm): 300°C

The MICROTEMP® G5 Thermal Fuse is rated for continuous operating currents up to 20 amps @ 250VAC.

Standard Type: G5A00077C / G5A01077C / G5A50077C / G5A51077C

                         E5A00077C / E5A01077C / E5A50077C / E5A51077C

Electrical Ratings & Agency Recognition:

 UL/CSA --20A/250VAC, 25A/120VAC,21A/240VAC,20A/277VAC

 VDE -- 20A/250VAC

 CCC -- 20A/250VAC

 PSE JET -- 15A/250VAC

 KC -- 16A/250VAC

Overall Length: 63.8mm(G5A00077C) / 82.9mm(G5A01077C)

Rated Functioning Temperature (Tf): 77°C

Holding Temperature (Th): 62°C

Maximum Temperature Limit (Tm): 410°C

The MICROTEMP® G6 Thermal Fuse is rated for continuous operating currents up to 16 amps @ 250VAC.

Standard Type: G6A00077C / G6A01077C

Electrical Ratings & Agency Recognition:

 UL/CSA --16A/250VAC

 VDE -- 16A/250VAC

 CCC -- 16A/250VAC

 PSE JET -- 15A/250VAC

Overall Length: 63.8mm(G6A00077C) / 82.9mm(G6A01077C)

Rated Functioning Temperature (Tf): 77°C

Holding Temperature (Th): 62°C

Maximum Temperature Limit (Tm): 300°C

The MICROTEMP® G7/E7 Thermal Fuse is rated for continuous operating currents up to 5 amps @ 250VAC and 5 amps @ 24VDC  .

Standard Type: G7F01077C/ G7F51077C / E7F01077C  / E7F51077C

Electrical Ratings & Agency Recognition:

 UL/CSA -- 5A/250VAC,5A/24VDC

 VDE -- 5A/250VAC

 CCC -- 5A/250VAC,5A/24VDC

 PSE JET -- 5A/250VAC

KC -- 5A/250VAC

Overall Length: 82.6mm

Rated Functioning Temperature (Tf): 77°C

Holding Temperature (Th): 62°C

Maximum Temperature Limit (Tm): 125°C

The MICROTEMP® G8 Thermal Fuse is rated for continuous operating currents up to 25 amps @ 250VAC and 20 amps @ 277VAC.

Standard Type: G8A00077C / G8A01077C / G8A50077C / G8A51077C

                         E8A00077C / E8A01077C / E8A50077C / E8A51077C

Electrical Ratings & Agency Recognition:

 UL/CSA --20A/277VAC, 25A/250VAC

 VDE -- 25A/250VAC

 CCC -- 25A/250VAC

 PSE JET -- 25A/250VAC

Overall Length: 63.8mm(G8A00077C) / 82.9mm(G8A01077C)

Rated Functioning Temperature (Tf): 77°C

Holding Temperature (Th): 62°C

Maximum Temperature Limit (Tm): 410°C
