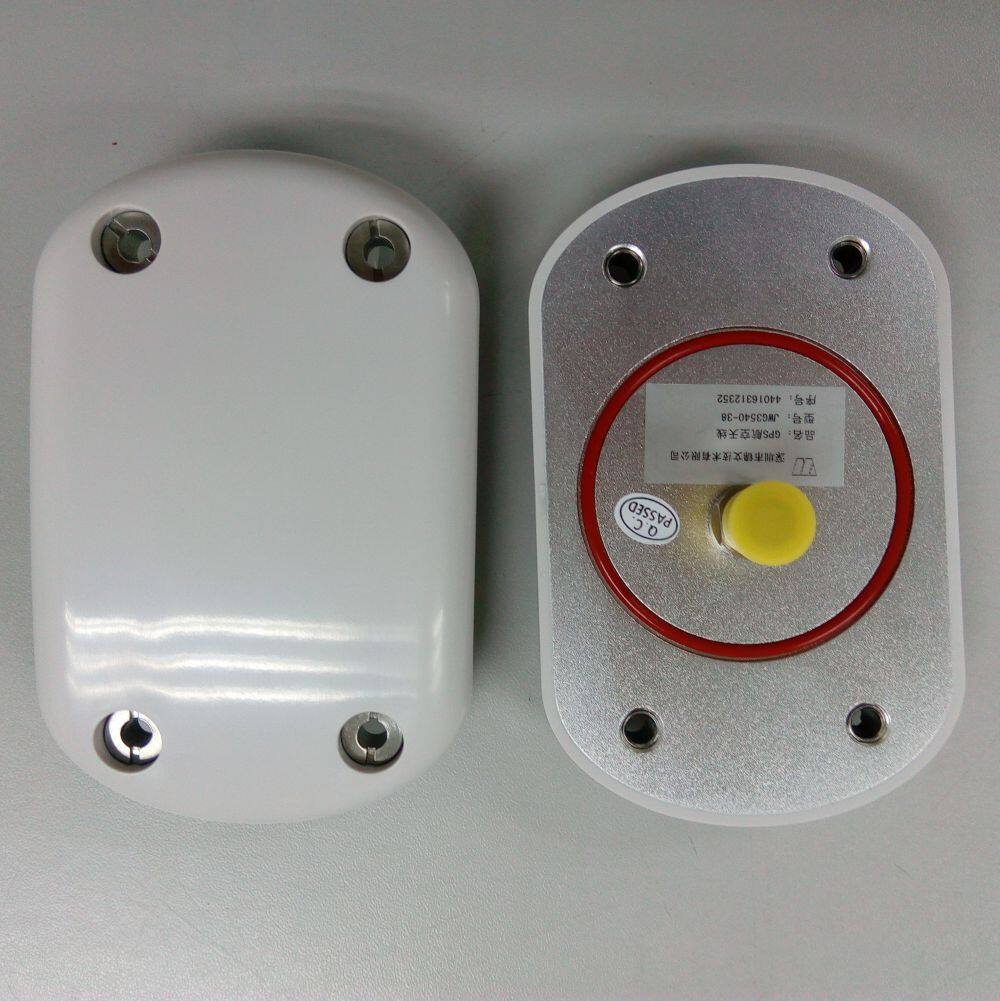

Shenzhen Jinwen Mini GPS Aerial Antenna With High Gain and Good Suppression 85X55X32mm Supports Customization
US$ 65 - 70
/ Piece
10 Pieces(Min. Order)
- shenzhen
- T/T
- 30 days
You May Like
-
RTK High Precision UAV Antenna 3 Star 7 Frequency Four-Arm Spiral Antenna Waterproof and Anti-jamming 25g Diameter
-
Shenzhen Jinwen JWGPS1840 Active Built-in GPS Antenna 18*18*4mm
-
RTK High Precision GPS /B1/B2/B3/GLONASS Samsung Octa-Band Measurement Active Antenna
-
Jinwen GPS Amplifier GNSS Signal Amplification Low Noise for Stations, Basements, Bridges
-
Jinwen 4G FDD LTE1800MHZ (bAND3) Integrated RF Microwave Power Amplifier Electronic Fence System
-
Shenzhen Jinwen Active Beidou GPS Antenna Has Low Noise and High Rejection 20X6X4mm
Product Details
| Operating Temperature | Other | Shape | Other, ellipse | |
| Conductive Type | Other | Specification | 85X55X32mm | |
| Trademark | jinwen | Origin | china |
Product Description
Aviation antenna series
Scope of application: GPS L1
Gain performance: +4.5 dBi
Appliance characteristics: 5 VDC +/- 5%
Polarization method: right-handed polarization (right-handed spiral)
Receive frequency: 1575.42+/-10 MHz
Interface: TNC interface
Weight: 102g
Impedance: 50 ohms
VSWR: less than or equal to 2
