Help CenterJinwen UAV Self-organizing Network 1400MHz 2-watt Single Transmitter Dual Receiver RF Power Amplifier JWTD1430-2W
Related Products
-
Jinwen LTE Broadband Power Amplifier TDD450-1700MHz 2X2 WattUS$ 800 - 845MOQ: 10 Units -
Jinwen JWPA512-50B Broadband RF Power Amplifier Module 20-512MHz 100w With Monitoring for Drone JammersUS$ 800 - 845MOQ: 10 Units
-
Jinwen 450-1700M5 Watt Broadband Self-organizing Network Power AmplifierUS$ 800 - 845MOQ: 10 Units
-
Jinwen Satellite Beacon (Tracking) Receiver 950 -1750MHz JW0951750-LUS$ 1050 - 1150MOQ: 2 Units
-
Jinwen RF Power Amplifier 10M-2000MHz, 10 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcNegotiableMOQ: 1 Unit

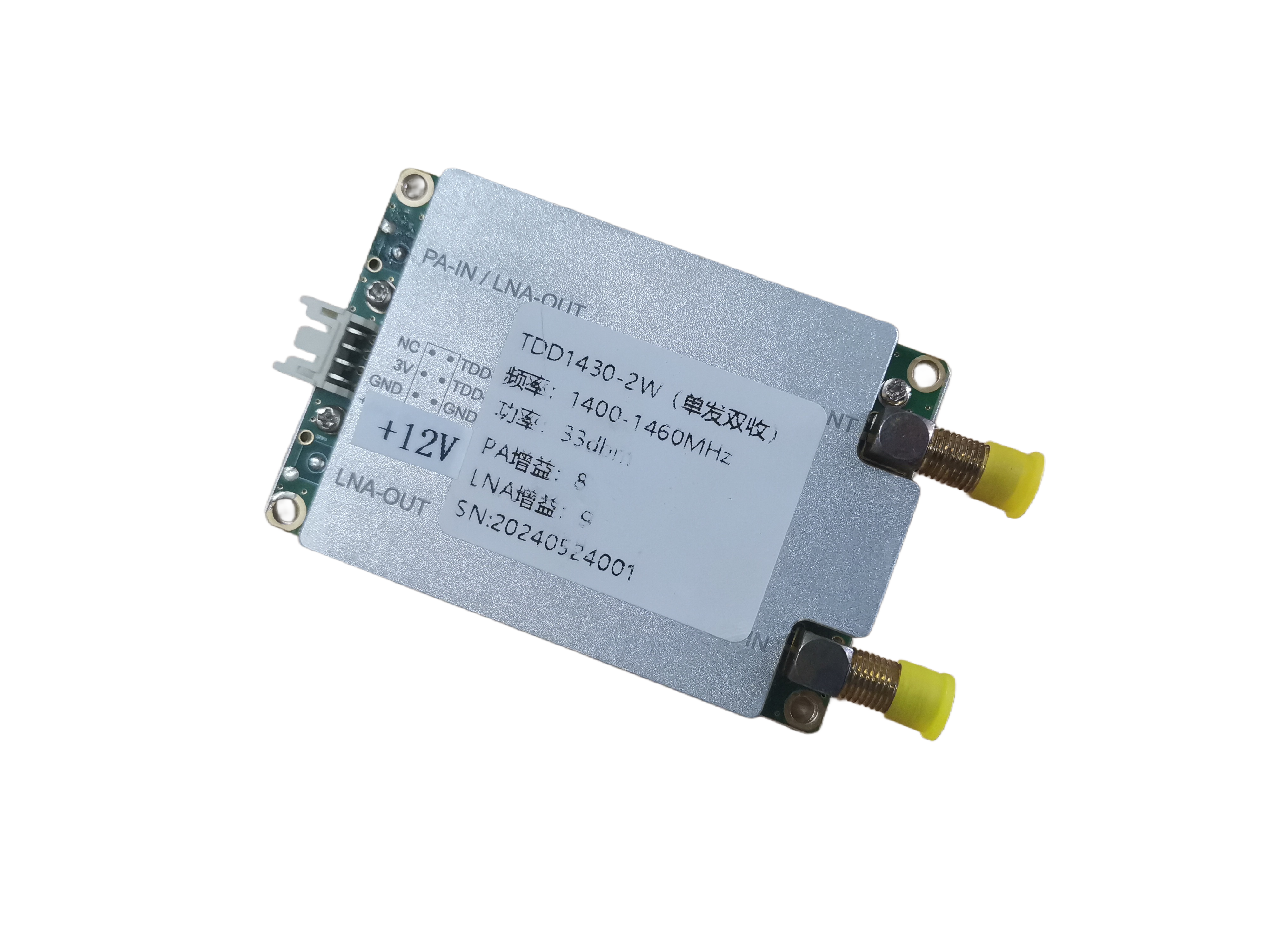

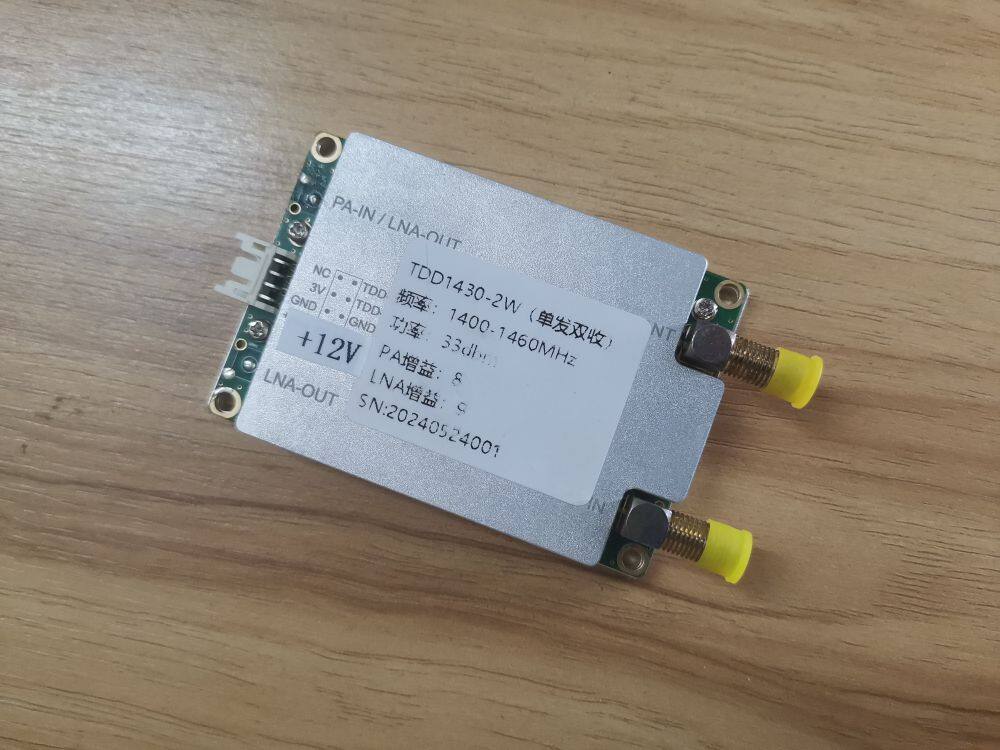

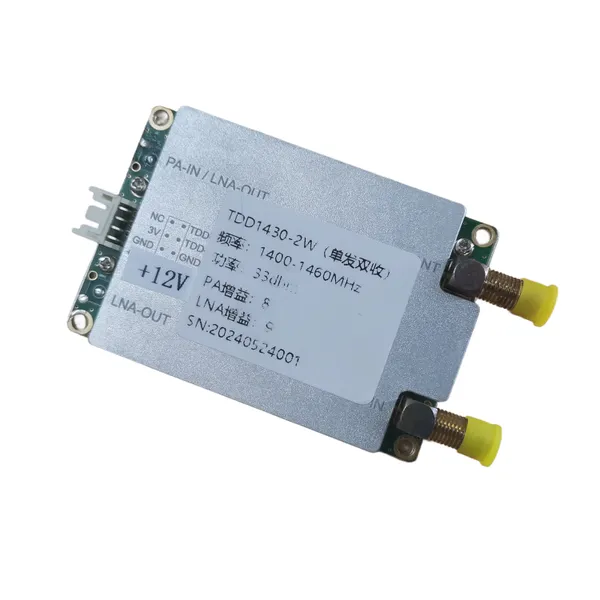

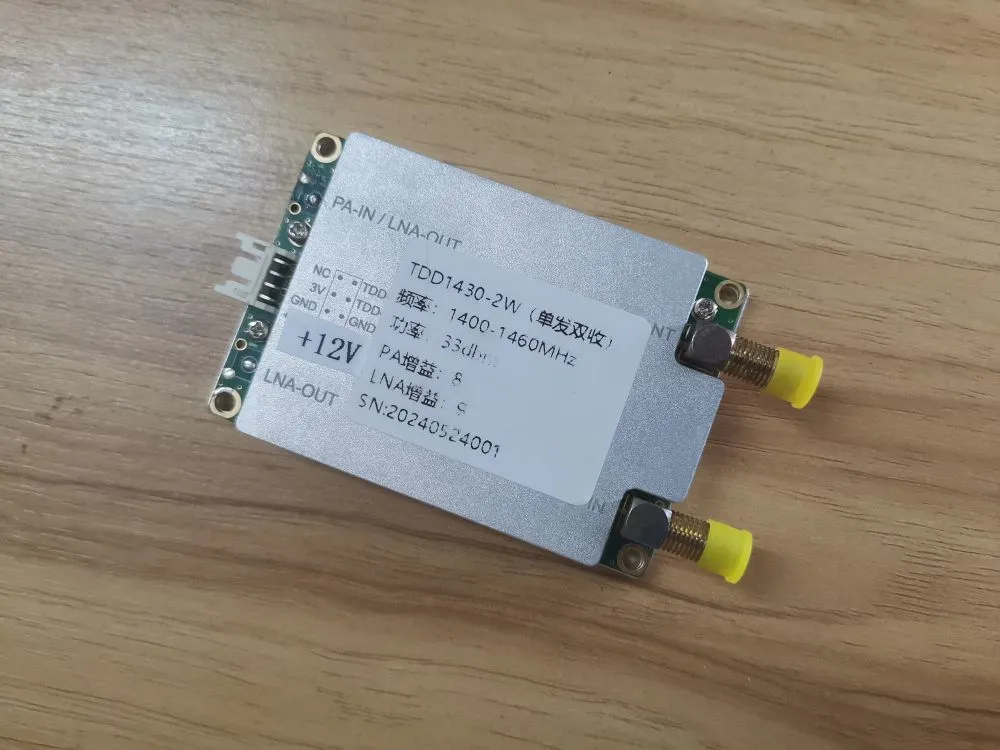

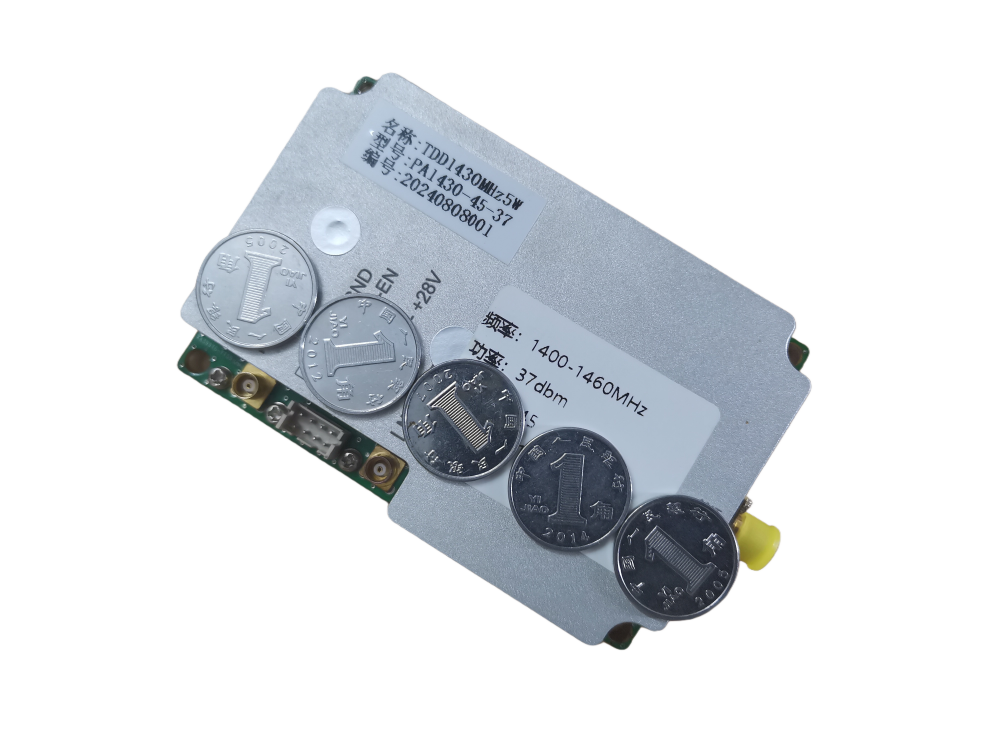

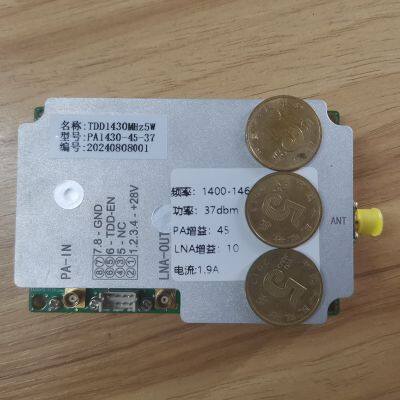

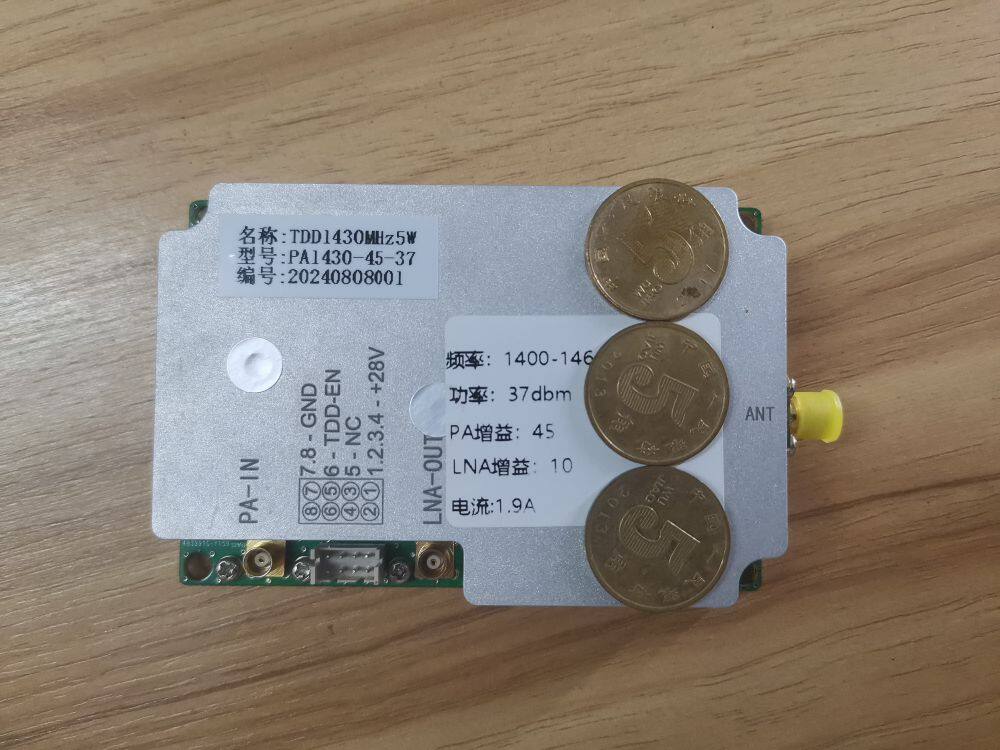

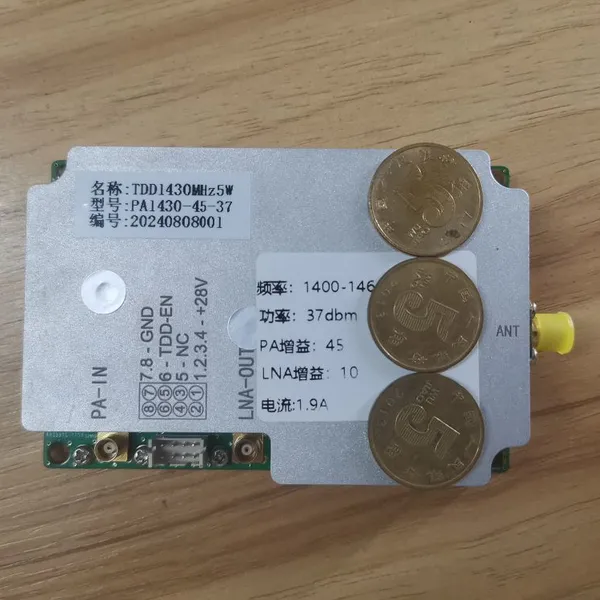

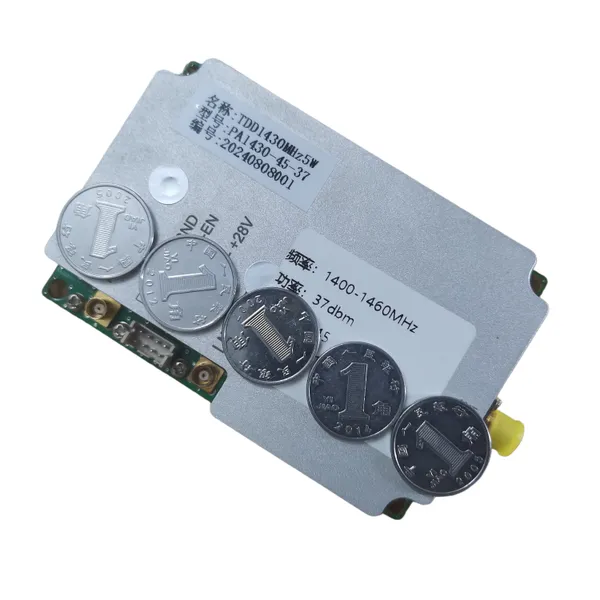

TDD-1430-2W RF module specifications (single transmitter dual receiver) SN: 20220531001 Test project indicator notes ————————LNA section - Operating frequency (MHz) 1425-1450MHz Maximum output power (dBm) 0 ± 1 Maximum gain (dB) 8 ± 1 Gain flatness (dB) ≤ 1.5 (peak to peak value within the operating frequency band) Input port standing wave ratio ≤ 1.4 Output port standing wave ratio ≤ 1.4 ACPR (WCDMA) adjacent channel ACPR ≤ -45dBC Spurious emission Within the working frequency band: ≤ -36dBm/30kHz Outside the working frequency band: ≤ -30dBm/30kHz Maximum input level ≥ -10dBm Up and down isolation ≥ 70dB Power stability ± 1dB@25 ℃～+55℃ Gain stability ± 1dB@25 ℃～+55℃
————————PA section - Operating frequency (MHz) 1400-1460MHz Output power (dBm) 33 ± 1 dBm Maximum gain (dB) 15 ± 1 Gain flatness (dB) ≤ 1 (peak to peak value within the operating frequency band) ACPR (WCDMA) adjacent channel ACPR ≤ -36dBC Input/output port standing wave ratio ≤ 1.4 Spurious emission Within the working frequency band: ≤ -36dBm/30kHz Outside the working frequency band: ≤ -30dBm/30kHz Power stability ± 1dB@25 ℃～+55℃ Gain stability ± 1.5dB@25 ℃～+55℃ common part Power supply requirement+12VDC; ≤1.4A； PA/LA switch characteristics TTL level,+3.3V (PA turns on LNA) Off) 0V (PA off, LNA on) Switching delay time ≤ 2us Working environment temperature -25~+65 ℃
