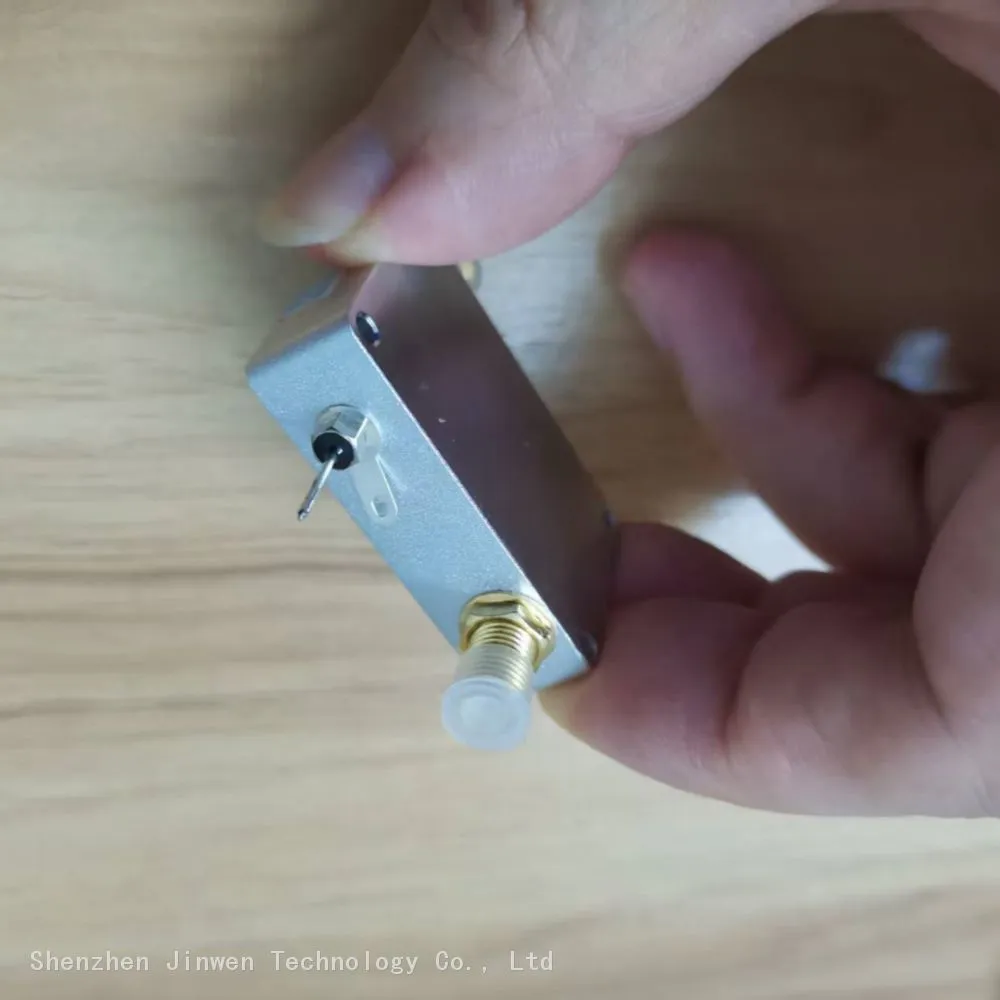

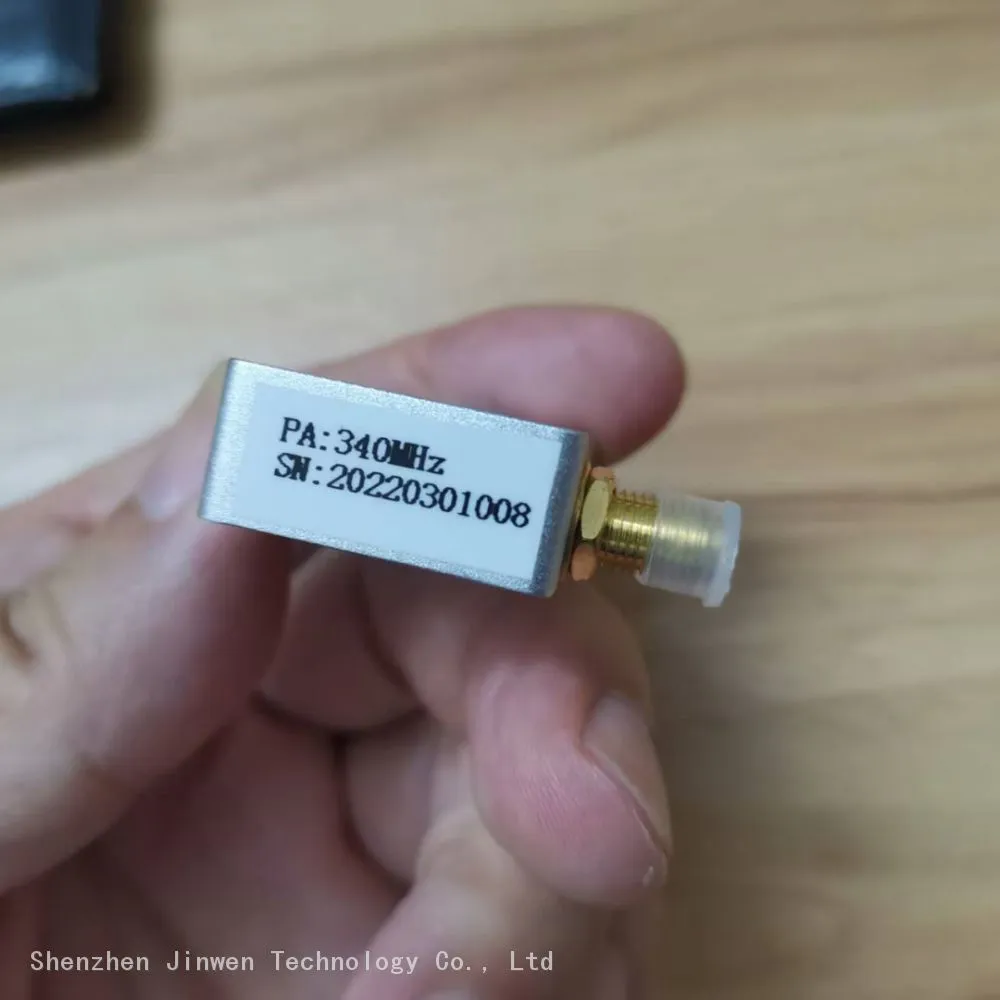

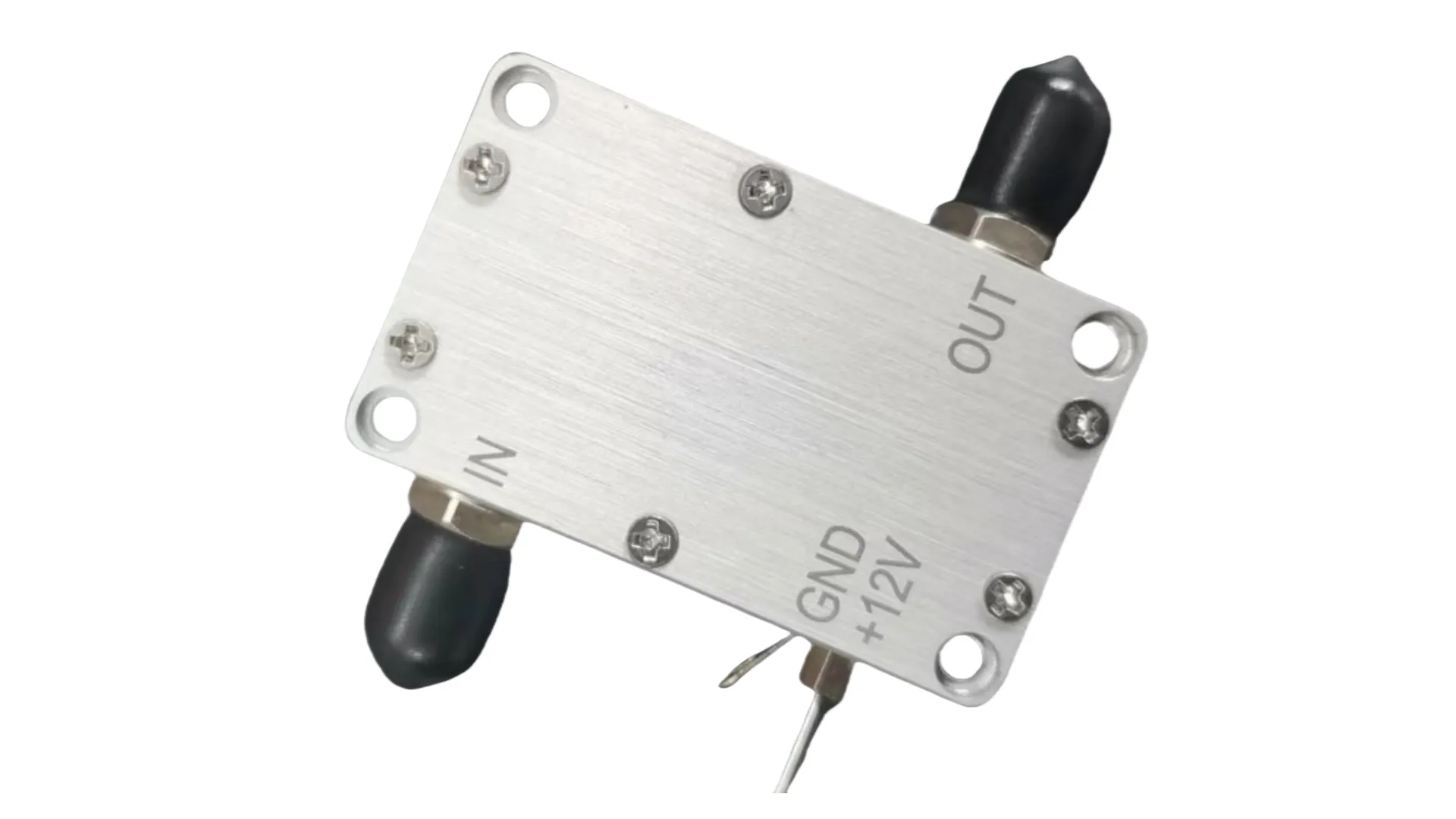

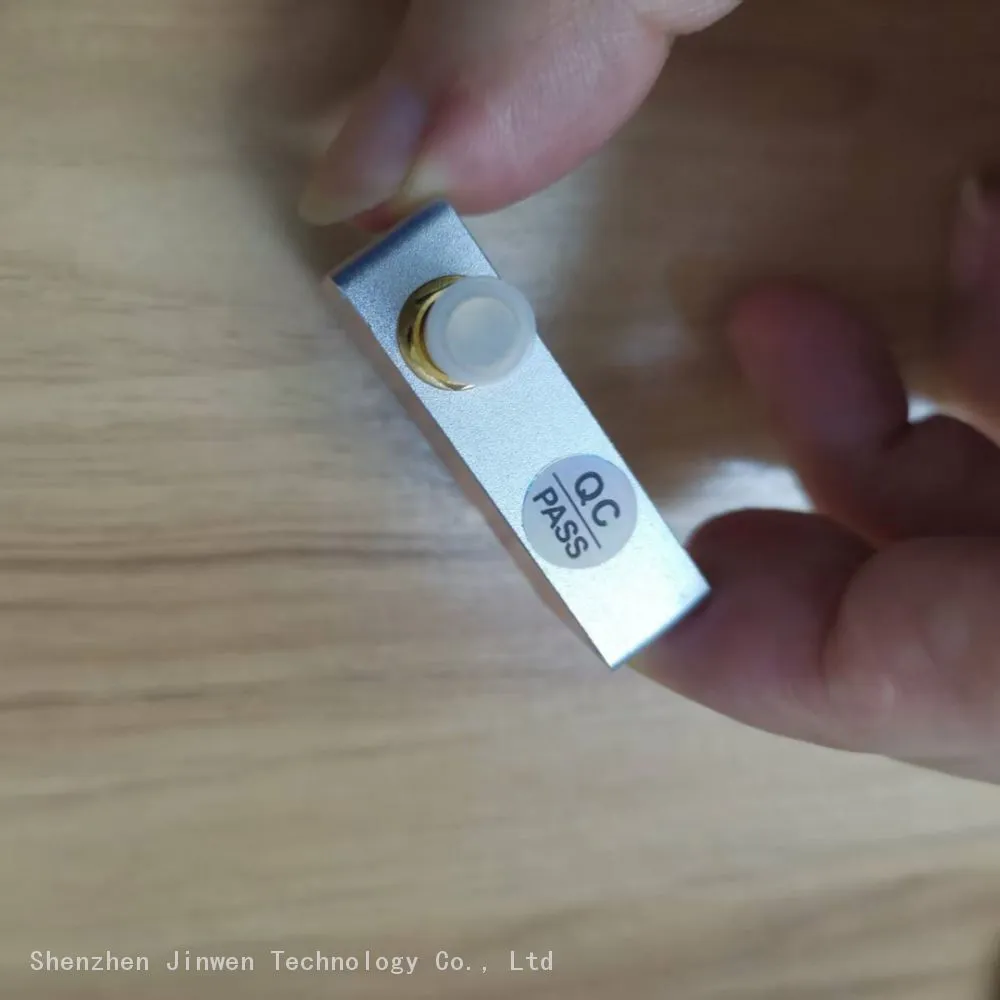

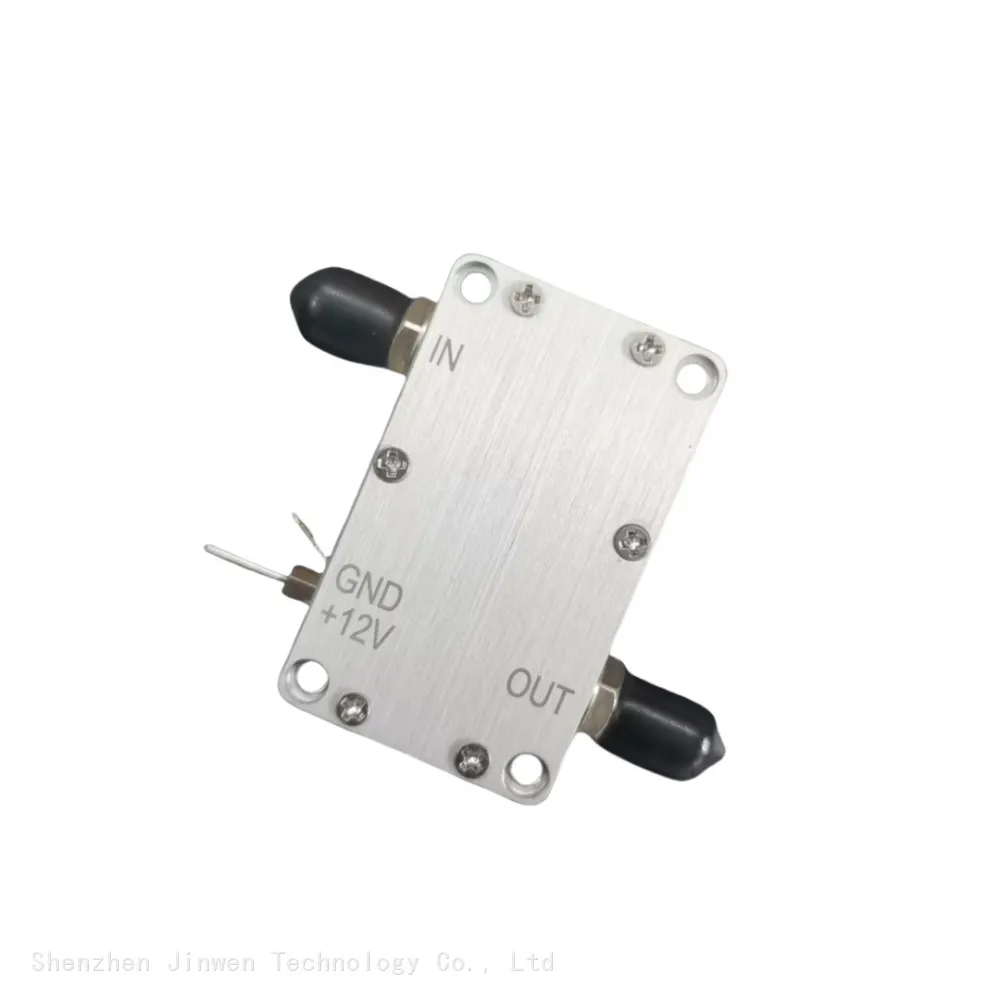

Shenzhen Jinwen COFDM 340MHz 2-watt Drone Image Transmission Power Amplifier JWPA300-2A
Product Spotlights
1. Linear high ACPR ≤ -40dbc；2. High efficiency ≥ 20%; 3.small volume 43X26X12mm
US$ 285
10 - 49 Units
US$ 252
50 - 99 Units
US$ 225
≥100 Units
Key Specifications
Get Latest Price
Usage:
Workstation, Other, Drone image transmission
Information Content:
Other, COFDM data
Condition:
New
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
30 days
Related Products
-
Jinwen UAV Self-organizing Network 1400MHz 2-watt Single Transmitter Dual Receiver RF Power Amplifier JWTD1430-2WUS$ 255 - 285MOQ: 10 Units -
Jinwen JWPA512-50B Broadband RF Power Amplifier Module 20-512MHz 100w With Monitoring for Drone JammersUS$ 800 - 845MOQ: 10 Units
-
Jinwen 450-1700M5 Watt Broadband Self-organizing Network Power AmplifierUS$ 800 - 845MOQ: 10 Units
-
Jinwen RF Power Amplifier 10M-2000MHz, 10 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcNegotiableMOQ: 1 Unit
-
Jinwen RF Power Amplifier 500-600MHz, 300 Watts, Used for Unmanned Aerial Vehicle Jamming, Electronic Countermeasures, EtcUS$ 1000 - 1150MOQ: 1 Unit
Usage
Workstation, Other, Drone image transmission
Information Content
Other, COFDM data
Condition
New
Support Network
Other, COFDM
Specification
43x26x12mm
Trademark
jinwen
Origin
shenzhen
340MHz-2WImage transmission amplifier module specifications
340MHz-2W Image Transmission Amplifier Module Specifications 300MHz-1800MHz 2-10W Customizable
project |
Indicator requirements |
Frequency range |
335～345MHz |
output power(dBm) |
33±1 |
gain( dB) |
41±1 |
ACPR(WCDMA)/13V/12V/11V/10V |
Adjacent Road ACPR≤－38dBC |
Second Harmonic |
≤-45 dBc |
Passband Ripple( dB) |
≤1.0 dB |
standing wave |
≤1.50 |
Maximum input power |
≥-10dBm |
Ambient Temperature（℃） |
-40～+85℃ |
Power supply requirements |
DC+12V |
dynamic current |
≤1A |
RF Connector |
SMA-50DKFD |
appearance |
Cover plate, characters, screws |
