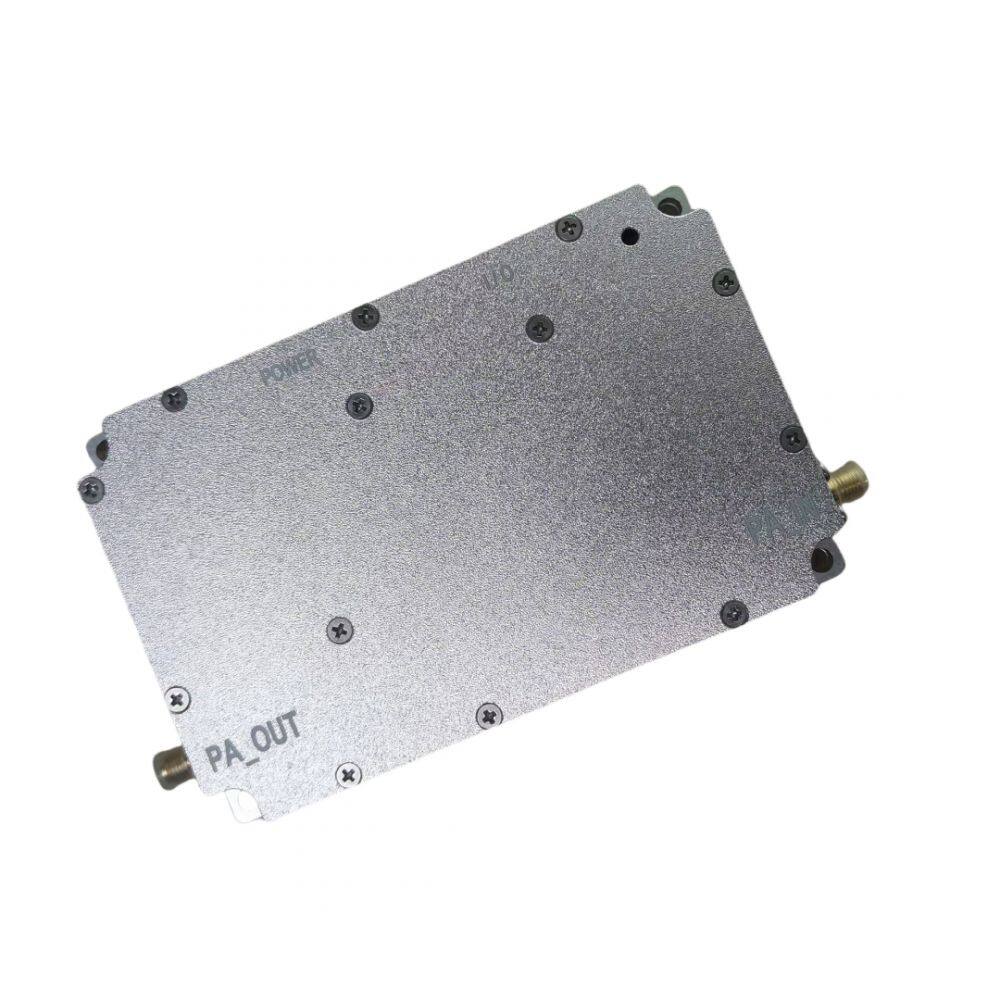

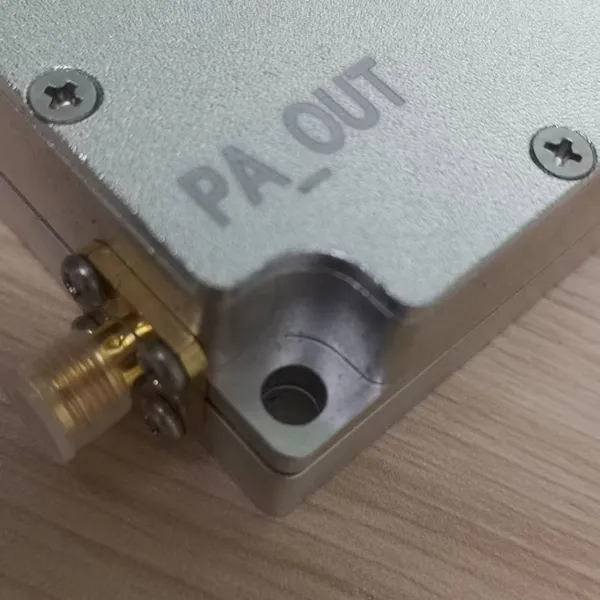

Jinwen JWPA512-50B Broadband RF Power Amplifier Module 20-512MHz 100w With Monitoring for Drone Jammers
Technical Specification for 20-512MHz 100W RF Amplifier Module
1, Electrical specifications:
serial number |
index |
Parameters |
remarks |
1 |
Frequency range |
20~512MHz |
|
2 |
output power |
≥100W(50dBm) |
Continuous wave |
3 |
gain |
16±2dB |
|
4 |
passband ripple |
≤3.5dB |
|
5 |
Input VSWR |
<2.0 |
|
6 |
Working current |
≤10A |
+28VSupply voltage+28V |
7 |
Positive power detection |
0~3V@31mV/dB |
|
8 |
Standing wave alarm protection |
When the standing wave ratio is greater than 3.5, the power amplifier is turned off and an alarm is triggered |
|
9 |
temperature detection
|
500mV+T(℃)*10mV/℃ |
|
10 |
Over Temperature Protection |
If the temperature exceeds 85 ± 5 ℃, turn off the power amplifier and sound an alarm. If the temperature is 65 ± 5 ℃, the power amplifier will automatically resume operation. |
|
11 |
operation temperature |
-40~+65C |
|
12 |
Supply Voltage |
+28V±1V |
