BENCHTOP PLASMA CLEANERS
Our plasma cleaners are benchtop, inductively coupled plasma devices that serve as excellent tools for surface cleaning, surface preparation, and surface modification. Plasma treatment may be applied to a wide variety of materials,including metals, ceramics, composites, plastics, polymers and biomaterials.
Our plasma cleaners may be employed in a broad range of surface engineering applications,including surface cleaning, surface sterilization, surface activation, surface energy alteration, surface preparation for bonding and adhesion, modification of surface chemistry, as well as the surface treatment of polymers and biomaterials through activation, grafting and surface coating.
Our products are specifically designed for laboratory and R&D use. They offer inexpensive,compact functionality. Key applications areas include materials science,microfluidics, polymer science, biomedical materials, optics, and sterilization of dental and medical implants and instruments.
▶ PRODUCTS

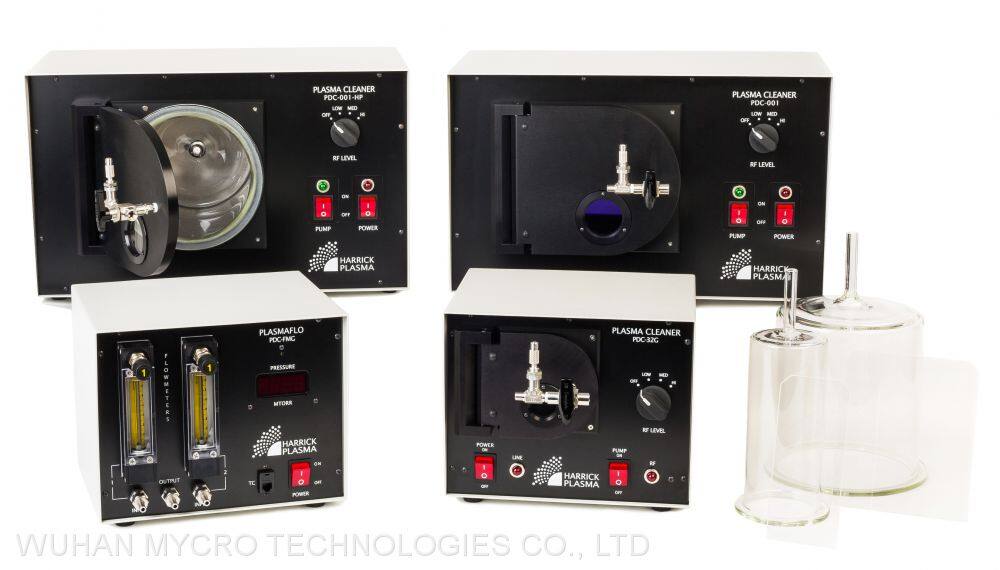

BASIC PLASMA CLEANER
PDC-32G (115V) | PDC-32G-2 (230V)
A compact,inexpensive benchtop plasma instrument suitable for nanoscale surface cleaningand activation of small samples.
EXPANDED PLASMA CLEANER
PDC-001 (115V) | PDC-002 (230V)
A larger tabletop plasma instrument and extensively used for nanoscale surface cleaning and surface activation.
HIGH POWER EXPANDED PLASMA CLEANER
PDC-001-HP (115V) | PDC-002-HP (230V)
With twice the cleaning rate as the Expanded Plasma Cleaner, the High Power Expanded model is a versatile instrument.
FEATURES
Larger, benchtop unit
Adjustable RF power settings (Low, Medium, High)
Maximum RF powerof 45W
Low RF power setting is equivalent to High RF power setting on PDC-001/PDC-002
Includes a 6″ diameter x 6.5″ length Pyrex chamber
Hinged door with viewing window
Active fan cooling
Integral switch for a vacuum pump
1/8″ NPT metering valve to qualitatively control gas flow and vacuum pressure
1/8″ NPT 3-way valve to quickly switch from bleeding in gas, isolating the chamber, and venting
Weight: 37 lbs
Size: 11″ H x 18″ W x 9″ D
Optional PlasmaFlo gas mixer allows quantitative control of up to two (2) process gases and monitoring of chamber pressure
Optional quartz chamber and sample tray
Compatible vacuum pump available
REQUIREMENTS
Our Plasma Cleaners require a vacuum pump with a minimum pump speed of 1.4 m3/hr (23L/min) and ultimate total pressure of 200 mTorr (0.27 mbar) or less.
▶ APPLICATIONS
NANOSCALE CLEANING
Plasma surface treatment removes nanoscale organic contamination and alters surface chemistry without affecting the bulk material.
ALTER SURFACE CHEMISTRY
Tailoring surfaces with specific chemical functionalities is often vital for optimal material performance. Plasma can alter surfaces to be more hydrophilic or hydrophobic or to introduce specific chemical functionalities to the surface without affecting the bulk material.
DEVICE FABRICATION
Plasma enables the fabrication of devices through covalent bonding (microfludic devices) or by facilitating the adhesive potential of intermediate epoxys, glues or other adhesives.
BIOLOGY & BIOMEDICAL
Plasma treatment cleans, sterilizes and activates biomaterial surfaces, improving biocompatability and antibiofouling traits. As a result, plasma is used extensively for cell seeding, protein adsorption, biomaterial coating, and implant surface activation.
SURFACE PATTERNING
Plasma can be employed in various ways to facilitate surface patterning, which is often a required processing step for the fabrication of multilayer devices, such as solar cells, sensors, and microfluidic chips.
