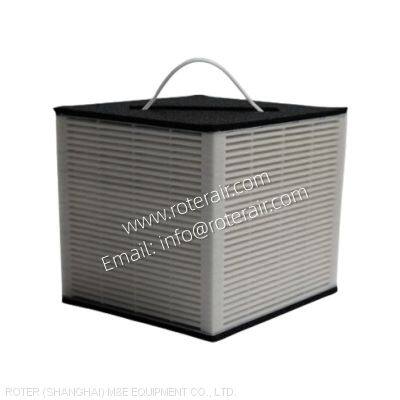

Plate frame enthalpy E.R. paper heat exchanger for air handling unit to transfer energy from exhaust air to fresh air

Working principle

The heat exchange paper and corrugated paper form a rectangular channel, when the fresh air and exhaust air pass through the two sides of the energy recovery plate respectively, the heat and moisture are transferred from the hot side to the cold side, then be sent to indoor together with supply air.

Features of plate fin enthalpy heat exchangers

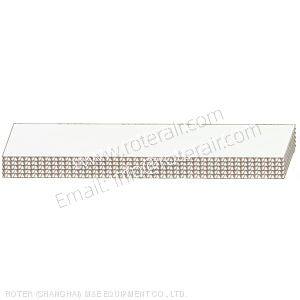

(1) The E.R. paper is made of special fiber through special process, and the corrugated paper gives enough support

(2) Third generation of E.R. paper is flame retardant, mildew proof, high moisture permeability, good air tightness, excellent tear resistance, and aging resistance

(3) Factory standard GI frame; GI frame with painting, Alu-zinc frame, Stainless steel frame & ABS frame are for option

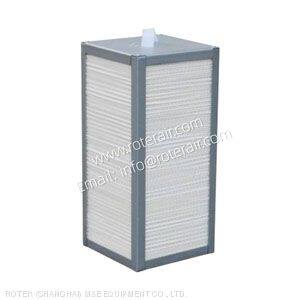

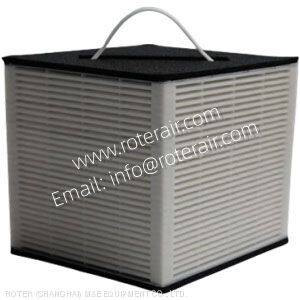

                      GI frame                                                             ABS plastic frame

(4) Rectangular channel structure, reasonable plate spacing and less internal support, all these make Roter plate enthalpy heat exchanger with smaller air resistance, larger heat transfer area and higher energy recovery efficiency

(5) Modular structure, can make a bigger heat exchanger by combining several small modules

(6) Air flows crosswise
