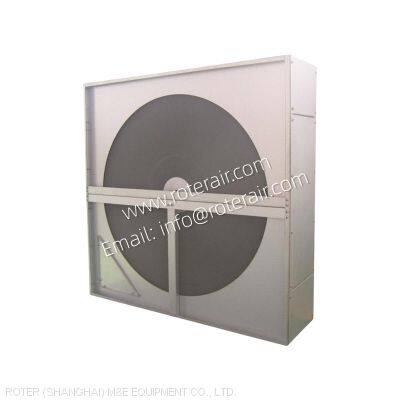

Desiccant heat recovery wheel HRW used in air handler and air handling unit

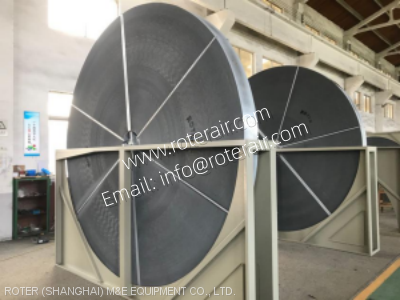

Heat Recovery wheel

Working  Principle:

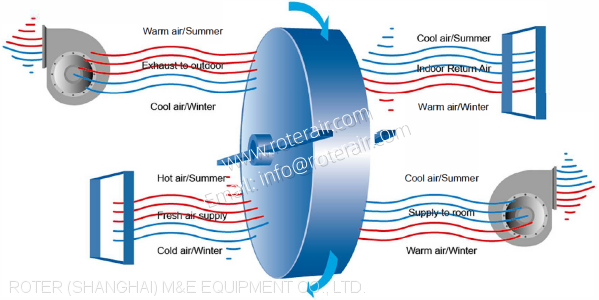

The heat recovery wheel continuously rotates at 10rpm and the wheel acts as a heat storage media. When the fresh air passes through a semicircle part of the HRW, the exhaust air passes through the other semicircle part in the opposite direction at the same time. In this way, fresh air and exhaust air alternately pass through the wheel in opposite directions, and the exhaust air releases energy into the heat or cold storage media, and the fresh air will bring the energy from the heat storage media into room.

The enthalpy heat recovery wheel also ensures the transfer of humidity. The moisture separated from the return air can enter the 3A molecular sieve desiccant coating of the heat storage media, and is released when the wheel is turned to fresh air. This process of humidity transfer is also accompanied by heat transfer. The HRW can pre-cool the outdoor fresh air and dry the air in summer and pre-heat and humidify the air in winter, the efficiency can achieve more than 75%.

The molecular sieve is only 3 angstroms, the critical diameter of water molecules is 2.8 angstroms, and water molecules are very polar molecules. 3A molecular sieve has a very strong affinity for it, so it can only absorb water, and can not absorb any other compositions in air.

General Features:

◆ Sensible heat type HRW and enthalpy type HRW both are available;

◆ The 3A molecular sieve desiccant only allows water molecules to pass through and rejects all other pollutants;

◆ Roter heat recovery wheels own particularly high structural strength (0.04mm / 0.05mm / 0.06mm thick aluminum foil are for option);

◆ 2.0mm and 2.5mm wave height (honeycomb aperture height) are for option. The wheel thickness can be optional 200mm or 270mm;

◆ Optional cassette materials: factory standard is powder coating cold-rolled steel, but galvanized steel, stainless steel and aluminum-zinc steel cassettes are available too;

◆ Wheel dia. can be selected from Φ500mm to Φ5000mm;

◆ Wheel can be delivered with different wheel sections; Cassette can be one-piece type or split type;

◆ Highly polished surface: Within the range of 2000mm on the vertical surface, the horizontal deflection distance is less than 2mm, so that the air leakage rate can be minimized;

◆ High heat recovery rate: When facing velocity is 3.5m/s and the air resistance is 170Pa, the rated heat recovery efficiency can be as high as 79%;

◆ Built-in purge sector eliminates cross-contamination

◆ The flexible dustproof brush minimizes the heat loss, also reduces friction, and prolongs the service life of the driving motor.

◆ VFD controller is optional

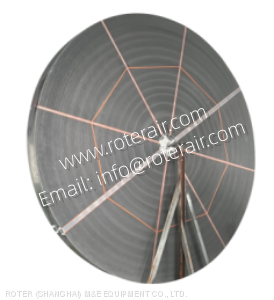

Wheel Material

1. Sorption wheel’s material (total heat type / enthalpy type):

Made of special aluminium foil with 3A molecular sieve coating

2. Condensing wheels’ materials (sensible heat type):

(1) Standard series (Code B): made of aluminium foil, optional thickness 0.04mm / 0.05mm / 0.06mm

(2) Anti-corrosive series (Code F): aluminium foil with epoxy coating

(3) High-temperature resistant series (Code G): aluminium magnesium alloy or chromite steel foil

Wheel Size

(1) Wheel Dia.: from 500 to 5000mm are for option

(2) Wave height: 2.0mm and 2.5mm are for option

(3) Wheel thickness: 200mm and 270mm are for option

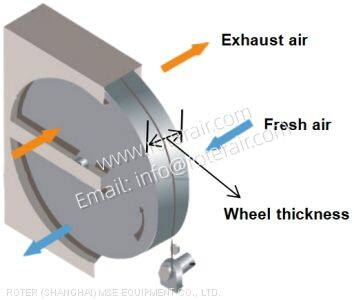

                  Wheel diameter                                                  Wheel thickness

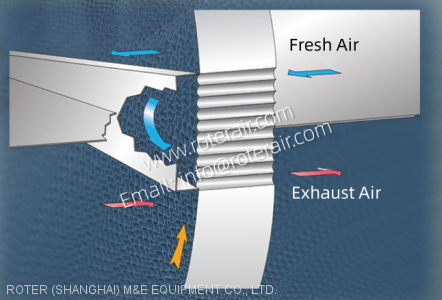

Purge Sector: Why the purge sector should be added ?

With the rotating of the wheel, when the heat storage honeycomb rotates from the dirty exhaust air side into the fresh air side, the remaining dirty air in the honeycomb would be mixed into the fresh air to lead to indoor cross-pollution. At this time, the purge sector can be selected to avoid this case.

Cassette

Factory standard cassette material of HRW is SPCC cold-rolled steel with powder coating, it has features of temperature resistance, corrosion resistance, high strength and no deformation.

(1) Cassette structure: ❶ One-piece cassette    ❷ Split cassette

(2) Cassette material: ❶ Standard material is SPCC cold-rolled steel with powder coating   ❷ Stainless steel cassette is optional

(3) Cassette installation: ❶ Without side plate: inner-loaded type, always installed inside air handling unit  ❷ With side plate: exposed type, for example, installed between air ducts

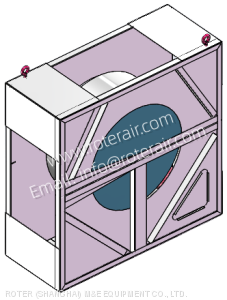

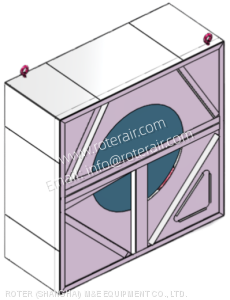

                                                Withou side plate                                   With side plate

(4) Cassette with removable lifting holes

Driving Motor And Belt

(1) Synchronous motor with gear reducer, belt driving, with automatic tension spring group which can automatically adjust the tightness of the belt.

(2) MITSUBOSHI brand belt imported from Japan, also equipped with a special belt tightening device and mechanical belt lock.
