Energy Recovery Ventilator for Commercial Use in Building

Energy Recovery Ventilator / Heat Recovery Ventilator

General Features:

◆ Equipped with high efficiency air to air heat exchangers:

Can recover the energy from the exhaust air then transfer to fresh air, to save the power consumption of air conditioning systems.

◆ Different air filters are for option:

(1)Primary filter - G4 plated filter: non-woven fiber material, mainly used to filter dust particles above 5μm in outdoor fresh air

(2)Activated carbon filter: can be used to remove odor in the air, formaldehyde, ammonia, benzene, xylene, radon and other pollutants, so also known as deodorization filter

(3)Medium filter - F8 bag filter: can fully filter PMIO, fine dust, etc., and can effectively pre-filter the PM2.5

(4)HEPA filter: can filter the suspended particles ≦0.5μm, the purification rate of PM2.5 is up to 95%

◆ Electrostatic precipitator can be selected

The electrostatic precipitator uses the high voltage electric field to ionize the flue gas, and the dust in the air stream is charged and separated from the air stream under the action of the electric field. The metal dust collecting plate (plate) and corona pole (pole line) are used to generate corona and trap dust. High dust removal efficiency, suitable for removing 0.01-50um dust in the flue gas, and can be used in the case of high temperature and high pressure.

◆ AC motor , EC fan and BLDC motor are for option

◆ Auxiliary electric heater is for option

◆ Different air sensors are available for choice, for example, CO2 sensor

◆ Bypass function is optional: motorized bypass damper

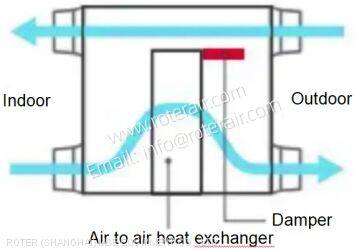

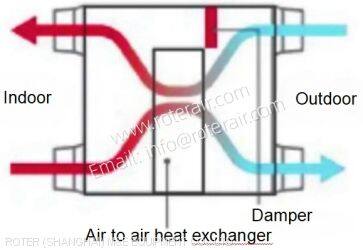

                    Heat recovery mode                                                        Bypass mode

◆ Adopt metal plate insulated with foaming, which not only can be thermal insulation but also sound insulation

Products Series:

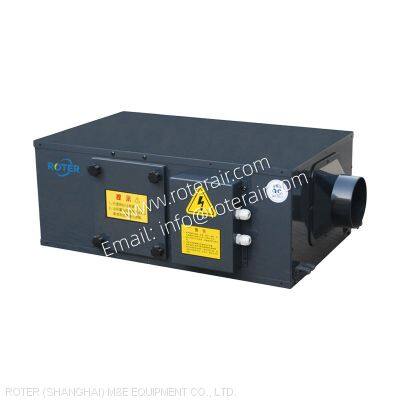

1. Unidirectional Flow Fresh Air Ventilator (200/300/500/800m3/h)◎ Small size and easy for ceiling mounting

◎ AC fan, without air to air heat exchanger

◎ Left / right access door for option

◎ Double filteration: primary + high efficiency filter

◎ PM2.5 removal rate 99.9%

◎ Smart controller: HD LCD screen

◎ Air quality sensors, electric heater and electrostatic precipitator are for option

2. AC Energy Recovery Ventilator (200/300/500/800/1000m3/h)

◎ Adopt enthalpy heat exchanger, efficiency higher than 60%

◎ AC fan is used, and 50 / 60Hz power supply for option

◎ Left / right access door for option

◎ HEPA filter is for option; PM2.5 removal rate 99.9%

◎ Bypass function is optional

◎ Air quality sensors, electric heater and electrostatic precipitator are for option

3. BLDC Energy Recovery Ventilator (200/300/500/800/1000m3/h)

◎ Adopt enthalpy heat exchanger, efficiency higher than 60%

◎ BLDC motor is used, and 50 / 60Hz power supply are for option

◎ Left / right access door for option

◎ HEPA filter is for option; PM2.5 removal rate 99.9%

◎ Bypass function is optional

◎ Air quality sensors, electric heater and electrostatic precipitator are for option

4. Wall Mounted Energy Recovery Ventilator (120m3/h)

◎ Adopt enthalpy heat exchanger, efficiency higher than 60%

◎ High efficiency fan with BLDC motor

◎ Multiple HEPA purification, efficiency up to 90%

◎ Can switch air internal circulation and external circulation mode

◎ Indoor AQI monitoring, and comes with CO2 and PM2.5 sensor

◎ Adopt 4.3inch LCD touch screen

5. Package Energy Recovery Ventilator (300/500/800m3/h)

◎ Adopt enthalpy heat exchanger, efficiency higher than 60%

◎ High efficiency fan with dual BLDC motor

◎ Multiple HEPA purification, efficiency up to 99%

◎ Can switch air internal circulation and external circulation mode

◎ Indoor AQI monitoring, and comes with CO2 and PM2.5 sensor

◎ Adopt 4.3” or 5” LCD touch screen, with WIFI function

◎ With filter replacement alarm
