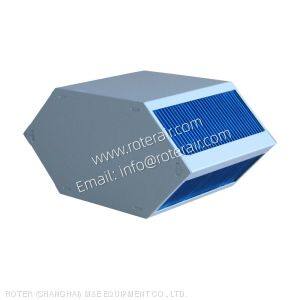

Help CenterCross Counter Flow Aluminum Plate Heat Exchanger Direct Factory Sales
Related Products
-
Desiccant Heat Recovery Wheel HRW Used in Air Handler and Air Handling UnitUS$ 500 - 5000MOQ: 10 Pieces -
Heat Pipe Heat Exchanger for Heat Recovery in Air ConditioningUS$ 100 - 2000MOQ: 200 Pieces
-
Dehumidifying Heat Pipe Dry Heat Pipe U Shape Heat Pipe for HVAC SystemUS$ 100 - 2000MOQ: 200 Pieces
-
Air to Air Plate Enthalpy and Sensible Heat Exchangers Used in Fresh Air Energy Recovery Ventilation SystemUS$ 50 - 500MOQ: 200 Pieces
-
Plate Frame Enthalpy E.R. Paper Heat Exchanger for Air Handling Unit to Transfer Energy From Exhaust Air to Fresh AirUS$ 50 - 500MOQ: 200 Pieces
Working principle
Operating on the principle of hot air and cold air flow crosswise and oppositely simultaneously. The two close aluminum fins form a supply air / exhaust air channel, and because the supply air and exhaust air pass through the two different side of the aluminum fin, the heat is transferred to the cold side from the hot side, to achieve the heat exchange between fresh air and exhaust air.
Features
◆ High quality hydrophilic aluminum fin as the heat exchange material through special process, make the HRPS higher efficiency and long service life.
◆ The air intake edge is with double 5 layer thickness process, the strength is higher
◆ The fin is with edge bite treatment and glue sealing, the air tightness is better
◆ The surface of aluminum fin is treated with spiral corrugated stamping, which makes the heat exchange area is 10% larger
Double 5 layer thickness Edge bite and glue seal
Spiral corrugated stamping
◆ Fin spacing (plate distance) are available from 2.5mm to 12mm
Materials (for different Applications)
(1) B series: Standard type
Made of hydrophilic aluminum fin, and galvanized steel frame; Max working temperature is 100ºC; Suitable for almost working conditions.
(2) F series: Anti-corrosion type
Made of epoxy resin coated aluminum fin, and galvanized steel frame; Max working temperature is 100ºC; Suitable for strong corrosion working conditions.
(3) G series: Temperature resistant type
Made of stainless steel fin, and stainless steel frame, sealed with special sealant; Max working temperature is 300ºC; Suitable for high temperature airflow working conditions.
