Double Deck Rotary Vibrating Screen Plant Used For Gold Ore

Name: Double Deck Rotary Vibrating Screen Plant Used For Gold Ore
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Place of Origin:	China	Certification:	ISO9001-2008 international quality management system certification and European CE certification
Application:	Ore	After-sales Service Provided:	Engineers available to service machinery overseas	Condition:	New

Product Description

ZY Series Self-aligning Damping Vibrating Screen is designed for the screening of stones in the quarry, and it can also be used for product grading in the departments of coal mine, mineral processing, building materials, electric power and chemical industry. By adopting modular design, we can quickly replace accessories, and minimize downtime of ZY Series Self-aligning Damping Vibrating Screen. Self-aligning design can effectively correct screen's misalignment while working and greatly extend the service life of the equipment. ZY Series Self-aligning Damping Vibrating Screen is widely used in material screening from steel, mining, chemical industry. It is the screening equipment with lowest cost.

PRODUCT PARAMETERS

Model	Layer of Screen	Size of Sieve Pore(mm)	Max. Feed Size (mm)	Capicity （t/h）	Double Amplitude (mm)	Motor Power (kw)	Screen Specification (mm)
2ZY1237	2	3-50	200	10-100	7-10	11	1200×3600
3ZY1237	3	3-50	200	10-100	7-10	11	1200×3600
2ZY1548	2	3-80	300	22-165	7-10	15	1500×4800
3ZY1548	3	3-80	300	22-165	7-10	15	1500×4800
2ZY1848	2	3-80	300	35-275	7-10	18.5	1800×4800
3ZY1848	3	3-80	300	35-275	7-10	18.5	1800×4800
2ZY1860	2	3-80	300	65-590	7-10	22	1800×6000
3ZY1860	3	3-80	300	65-590	7-10	22	1800×6000
4ZY1860	4	3-80	300	65-590	7-10	30	1800×6000
2ZY2070	2	3-100	300	95-700	7-10	30	2000×7000
3ZY2070	3	3-100	300	95-700	7-10	30	2000×7000
4ZY2070	4	3-100	300	95-700	7-10	37	2000×7000
2ZY2160	2	3-100	300	85-750	7-10	30	2100×6000
3ZY2160	3	3-100	300	85-750	7-10	30	2100×6000
4ZY2160	4	3-100	300	85-750	7-10	37	2100×6000
2ZY2460	2	3-120	300	90-850	6-9	37	2400×6000
3ZY2460	3	3-120	300	90-850	6-9	37	2400×6000
4ZY2460	4	3-120	300	90-850	6-9	45	2400×6000
2ZY2860	2	3-120	300	110-1000	6-9	45	2800×6000
3ZY2860	3	3-120	300	110-1000	6-9	45	2800×6000
2ZY3073	2	3-120	300	150-1300	6-9	30×2	3000×7300
3ZY3073	3	3-120	300	150-1300	6-9	30×2	3000×7300
2ZY3673	2	3-120	300	180-1600	6-9	30×2	3600×7300
3ZY3673	3	3-120	300	180-1600	6-9	37×2	3600×7300

Main features:

▲ The module design of vibration exciter, aligning devices and cabient can simplify maintanance, convenient replacement and maxed reduce downtime.
▲ Vibrating support device adopts spindle which can be adjusted between 10 to 20 degrees to meet customers' different requiremnets.
▲ Drivers are added to improve motor transmission efficiency and prolong service life of V-belt, which can ensure the concentricity when operating, thus prolongs the service life of bearing.
▲Lateral damper, controlling the transverse oscillation amplitude, prolongs service life of engine body and complex-spring.

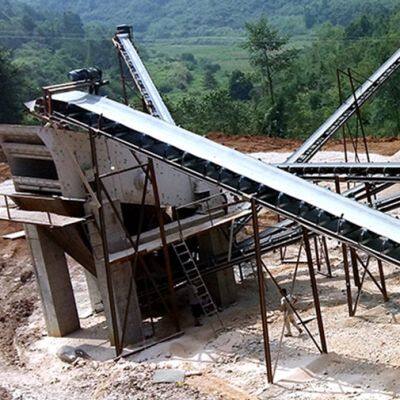

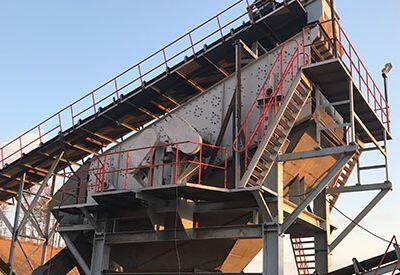

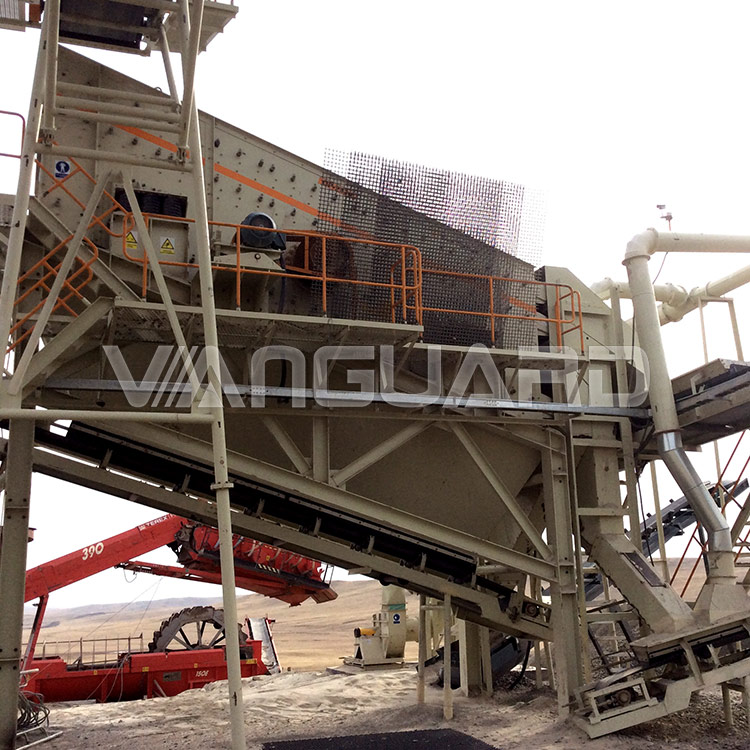

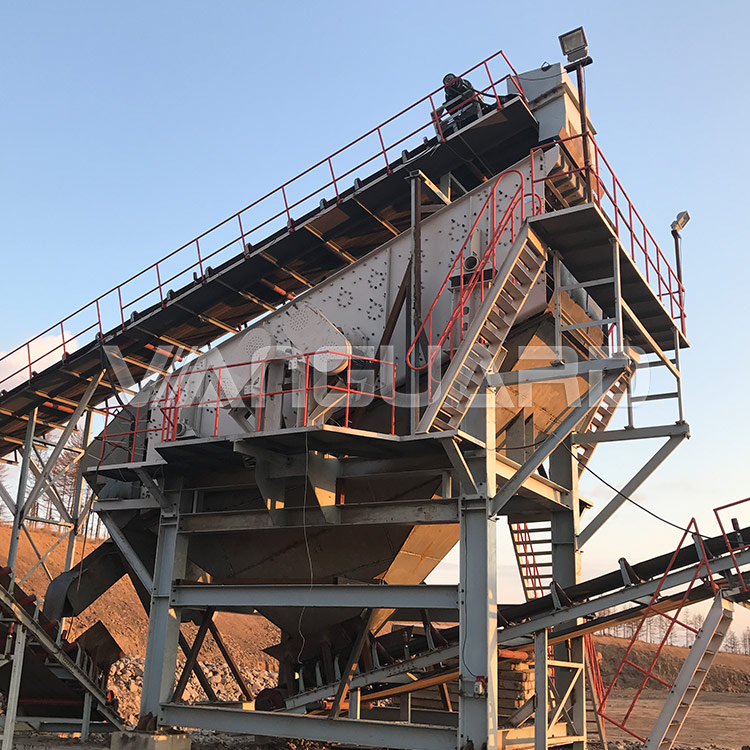

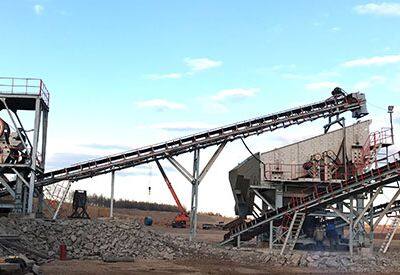

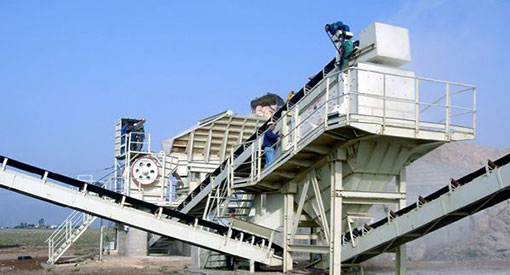

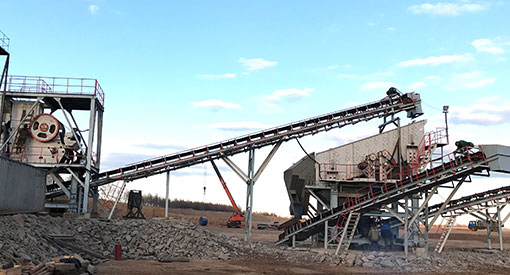

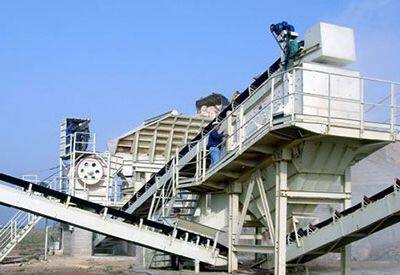

CUSTOMER SITES

Packaging and Shipping

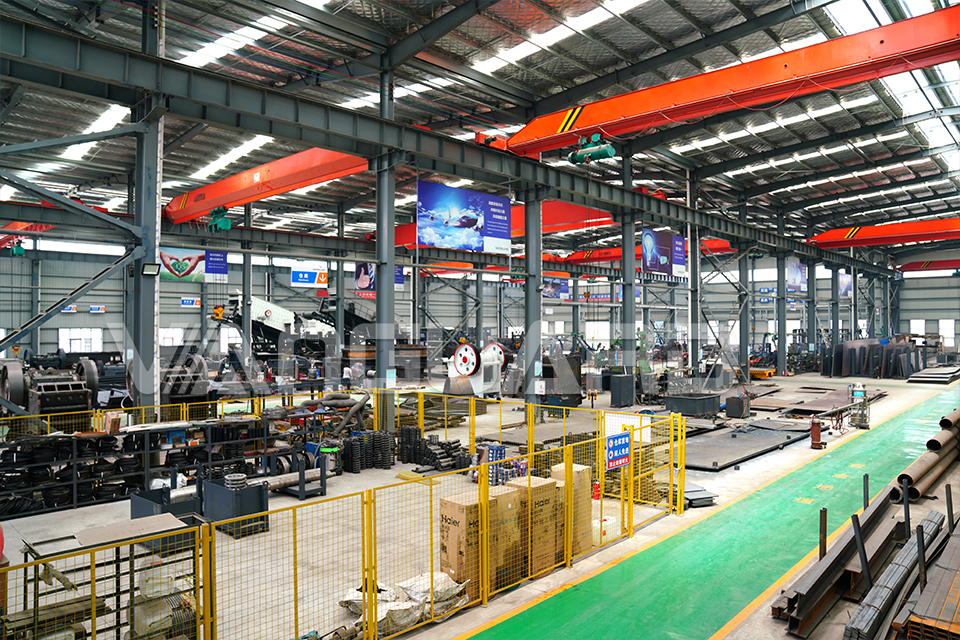

About VANGUARD

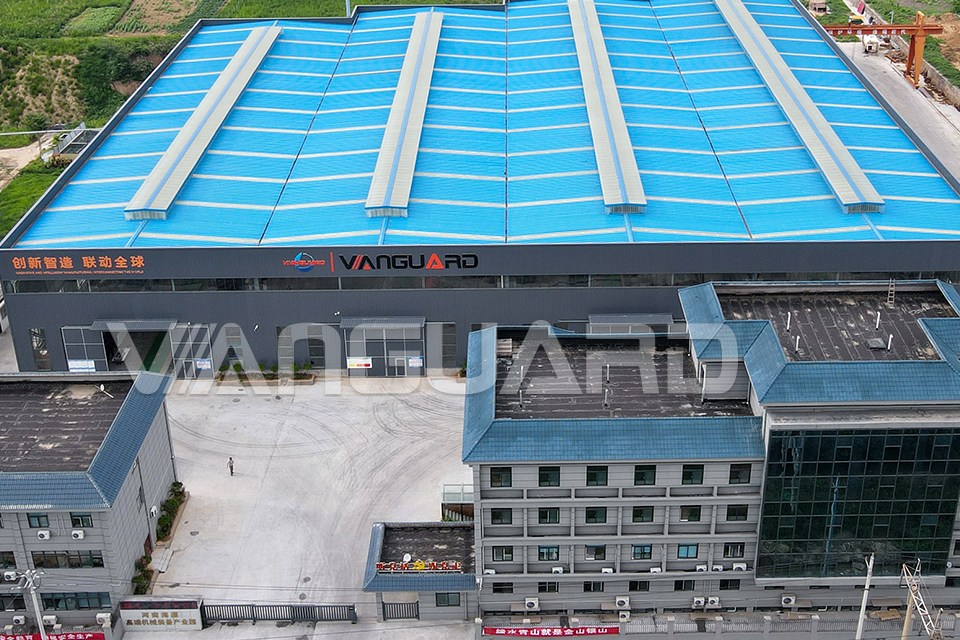

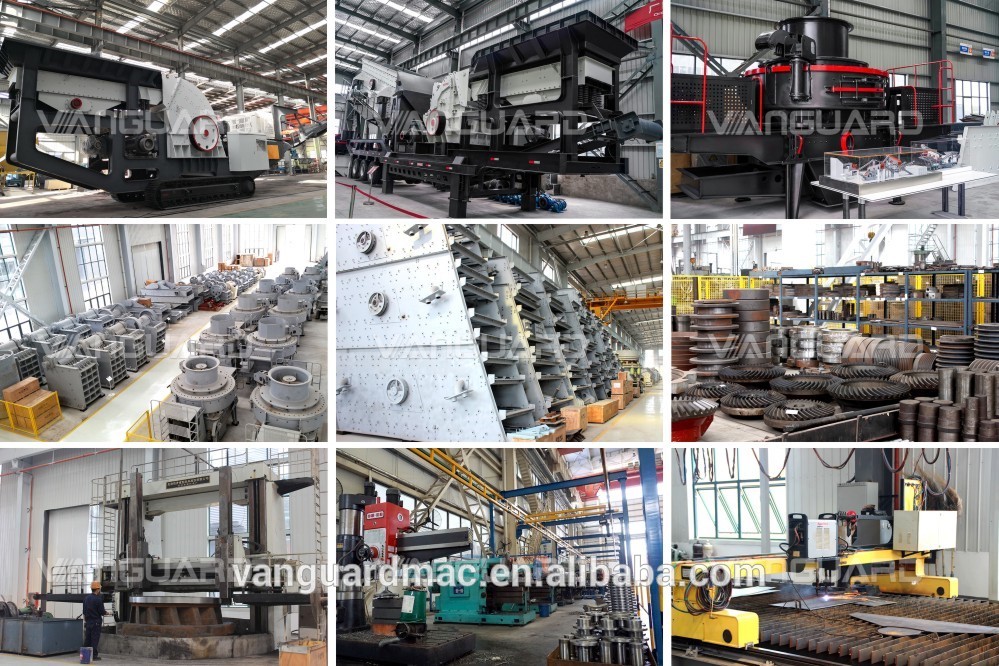

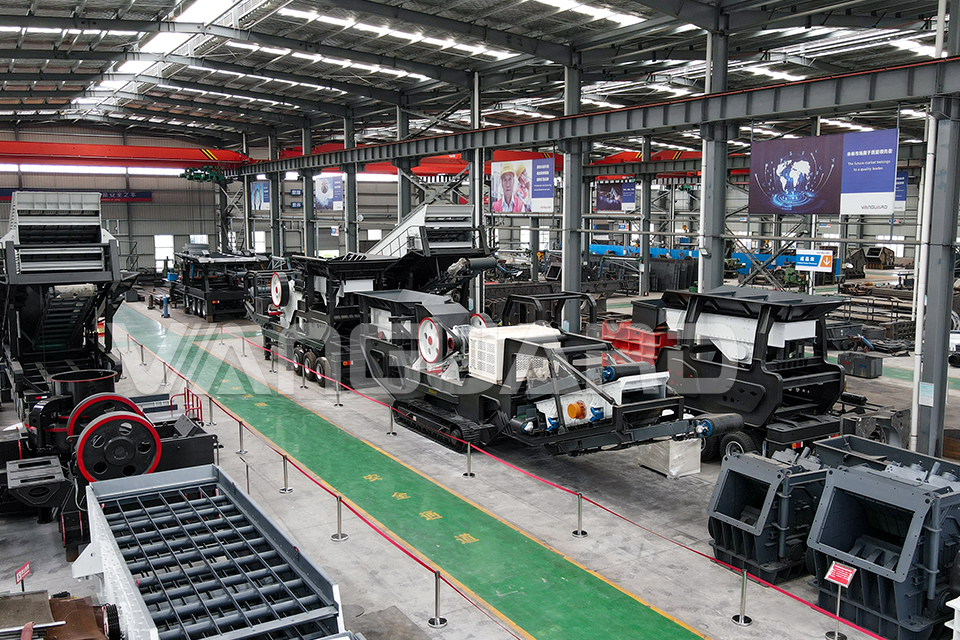

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get best service at lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at the lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3: Do you supply oversea service?
A: Yes, we do. Engineers available to service machinery overseas.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
