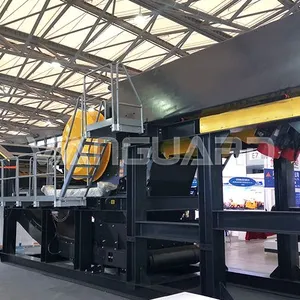

Big Capacity Rock Iron Ore Mining Crushing Jaw Crushing Plant

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VANGUARD	Place of Origin	China
Type	Jaw Crusher	Certification	ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 months
Application	stone,ore,coal,sand	Condition	New
Motor Type	AC Motor	Capacity(t/h)	15-650TPH

Product Description

Factory Price Stone Rock Lime Jaw Crusher Breaker Crushing Plant

MBP series jaw crushing plant uses the optimized frame structure and movable jaw design, mainly used for the coarse crushing of minerals and rocks. According to the different production capacity, it can be designed and matched with different specifications of the feeder, jaw crusher, belt conveyor and other modular structural parts.

PRODUCT PARAMETERS

Project	Device Name		Models and Specifications	Power (KW)	Amount
Project	Device Name		Models and Specifications	Power (KW)	Amount
C106 Jaw Crusher + ZSW4211 Feeder	feeding machine	equipment	ZSW4211	/	1
	feeding machine	motor	Standard	15	1
	jaw crusher	equipment	C106	/	1
		triangle belt	Standard	/	10
		motor	Standard	110	1
	Modular steel structure		Standard	/	1
	main conveyor	Specification	B1000*12m	11	1
	main conveyor	drive mode	electric drum drive	/	1
	magnetic separator	Specification	RCYQ-10	2.2	1
	magnetic separator	drive mode	reducer	/	1
	Electrical System	Electric control cabinet	Feeder motor variable frequency speed regulation, host soft start, electrical components Chint	/	1 set
				/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 138.2KW

Project	Device Name		Models and Specifications	Power (KW)	Amount
Project	Device Name		Models and Specifications	Power (KW)	Amount
PE57 Jaw Crusher + ZSW3090 Feeder	feeding machine	equipment	ZSW3090	/	1
	feeding machine	motor	Standard	11	1
	jaw crusher	equipment	PE57	/	1
		triangle belt	Standard	/	5
		motor	Standard	55	1
	Modular steel structure		Standard	/	1
	main conveyor	Specification	B650*12m	5.5	1
	main conveyor	drive mode	electric drum drive	/	1
	magnetic separator	Specification	RCYQ-6.5	1.5	1
	magnetic separator	drive mode	reducer	/	1
	Electrical System	Electric control cabinet	Feeder motor variable frequency speed regulation, host soft start, electrical components Chint	/	1 set
				/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 73KW

Project	Device Name		Models and Specifications	Power (KW)	Amount)
Project	Device Name		Models and Specifications	Power (KW)	Amount)
PE69 Jaw Crusher + ZSW3896 Feeder	feeding machine	equipment	ZSW3896	/	1
	feeding machine	motor	Standard	11	1
	jaw crusher	equipment	PE69	/	1
		triangle belt	Standard	/	5
		motor	Standard	75	1
	Modular steel structure		Standard	/	1
	main conveyor	Specification	B800 * 12m	7.5	1
	main conveyor	drive mode	electric drum drive	/	1
	magnetic separator	Specification	RCYQ-8	1.5	1
	magnetic separator	drive mode	reducer	/	1
	Electrical System	Electric control cabinet	Feeder motor variable frequency speed regulation, host soft start, electrical components Chint	/	1 set
				/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 95KW

Special Design of different models of the mobile crushing plant will be available upon request.

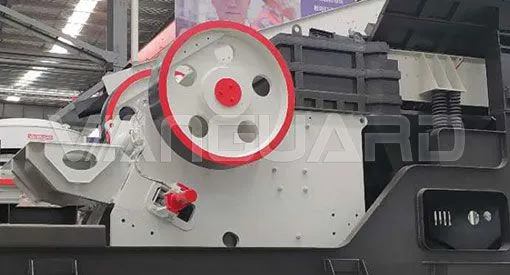

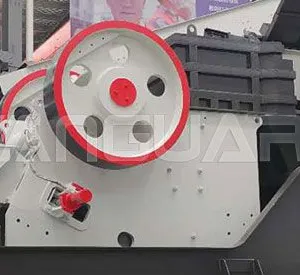

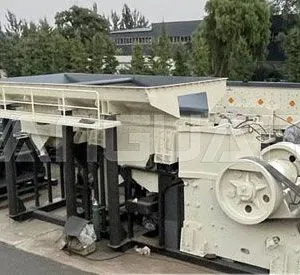

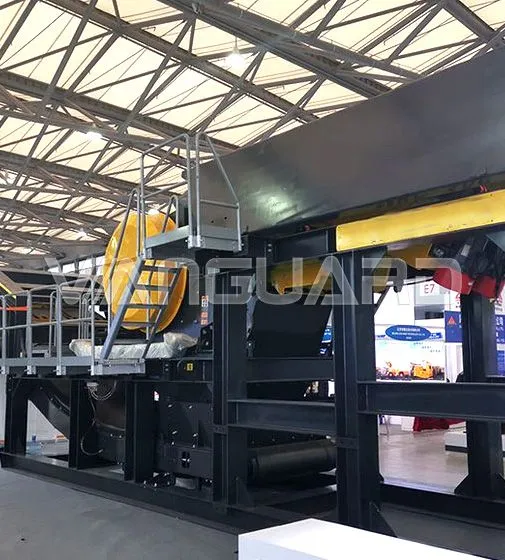

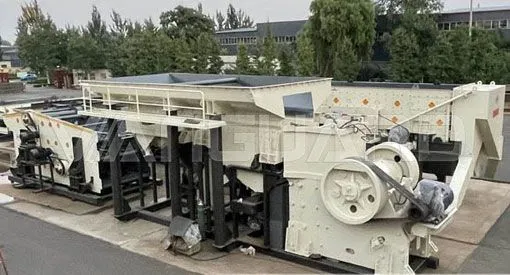

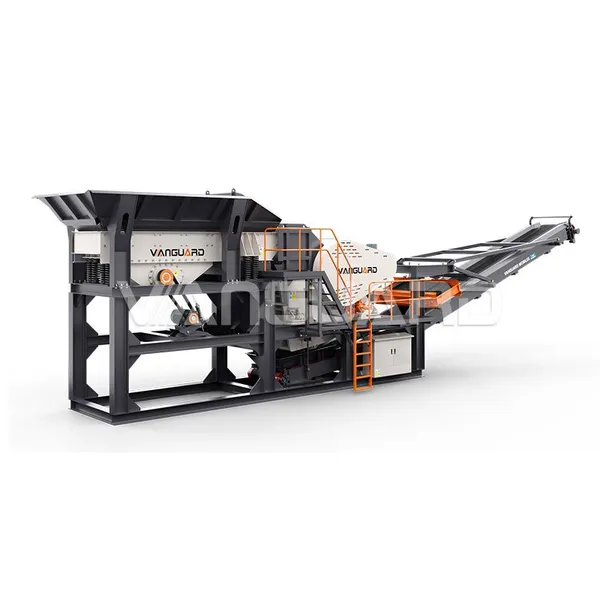

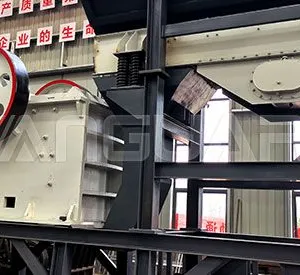

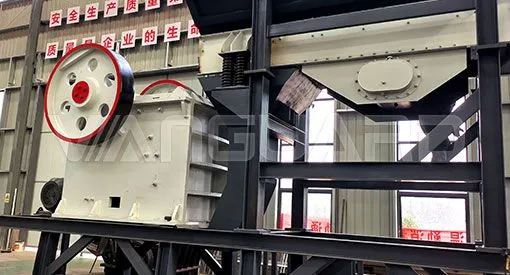

PRODUCT EXHIBITION

PRODUCT ADVANTAGES

Rugged construction

The frame is divided into welding type and assembled type. The small and medium-sized specifications generally adopt the welding type, and the large-scale specifications generally adopt the assembled type.
The welding type adopts large arc transition fillet and low stress area welding method, which has the characteristics of impact resistance, uniform force and low failure rate.

Superior cavity design, large feeding granularity

The V-shaped crushing cavity design is adopted, the toggle plate has a large inclination angle and a large stroke. Compared with the traditional PE series jaw crusher, it has the larger feeding particle size, the higher output, more uniform the particle size, and reduced the jaw plate wear.

Integral bearing seat

The integral cast steel bearing seat structure ensures complete coordination with the frame, which makes the bearing run more smoothly and avoids unnecessary radial load on the bearing during the tightening process of the combined bearing seat.

Anti-vibration installation design

The crusher is fixed by a special rubber shock absorption device, which effectively absorbs the peak vibration of the equipment and allows the vertical and longitudinal displacement of the crusher, thereby reducing the impact on the foundation.

 PRODUCT APPLICATION

Processed Material:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, mineral processing machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most  suitable proposal based on raw materials.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
