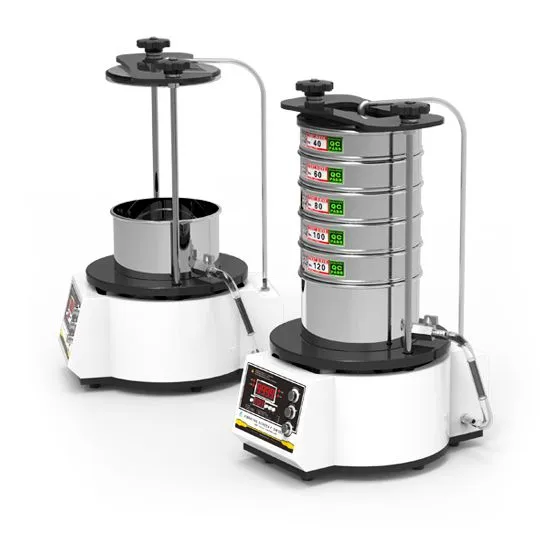

J-SW200 wet three-dimensional vibration screening instrument

The digital high-frequency mechanical vibration screening instrument J-SW200 is dedicated to solving the screening task of dry and wet samples in the laboratory. It is suitable for screening 20g-3kg dry, wet or liquid samples. The product follows the design concept of precision, efficiency and * *, and is equipped with a time control panel to achieve intermittent screening with constant amplitude, timing, internal/external circulation wet screening. It includes password lock screen protection and one click reset function. It is easy to use, simple to operate, quiet and comfortable, safe and reliable.

Product Name: Wet 3D Vibration Screening Instrument

Model: J-SW200

Processing principle: High frequency three-dimensional parabolic motion

Application sample characteristics: powder like | granular | small block like | loose | suspended solids, etc

Processing type: particle size determination, separation, grading

Maximum load: 3 kg

Number of sieve layers: 1-8 layers

Maximum screening tower mass: 4 kg

Amplitude: 0.2-3 mm

Vibration frequency: 3000 times/minute

Screening particle size range: 20 μ m-125 mm

Maximum usable sieve diameter: 200mm

Maximum screening tower height: 510mm

Main functions: digital control | timing | continuous screening | intermittent screening

Additional features: Comfortable visual screen pressing plate | Liquid circulation system

Screening method: dry | wet

Electrical description: 100-120V/200-240V AC, 50-60Hz, 200W

Power ports: National/European/American/British standards, etc

Net weight: 37 kg

Dimensions (width, thickness, height): 300 * 405 * 730mm

Protection level: IP65
