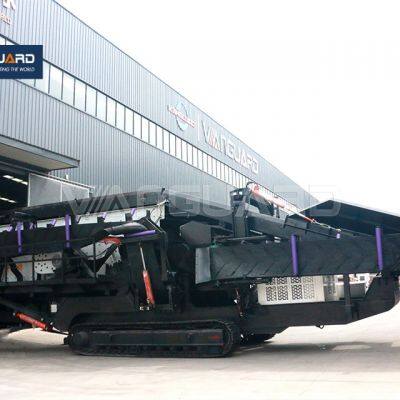

Round Vibrating Screen Crawler Type Mobile Gyratory Vibrating Screening Plant For Sale

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VANGUARD	Place of Origin	China
Type	Jaw Crusher	Certification	ISO9001-2008 international quality management system certification and European CE certification
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 months
Application	stone,ore,coal,sand	Condition	New
Motor Type	AC Motor	Capacity(t/h)	50-400 T/H

Product Description

Crawler type Mobile Screening Plant with pedrail can move on the production site automatically. It adopts crawler-type vehicle chassis, fully hydraulic drive, equipped with vibrating screen, forming an integrated group operation mode. This patented machine can be adapted to mountainous region, wet land, etc. landforms. Vanguard Machinery crawler-type mobile screening plant has high reliability and adaptability, whether narrow terrain and harsh environments, and are widely used in road and bridge construction, urban construction, metallurgy, energy, and other fields.

PRODUCT PARAMETERS

Crawler-type mobile screening plant		2YA1860 crawler-type mobile screening plant		2YA2160 crawler-type mobile screening plant		3YA1860 crawler-type mobile screening plant		3YA2160 crawler-type mobile screening plant
Model		Items and specifications	power (kw)	Items and specifications	Power (kw)	Items and specifications	Power (kw)	Items and specifications	Power (kw)
Vibrating Screen	Equipment	2YA1860	/	2YA2160	/	3YA1860	/	3YA2160	/
Vibrating Screen	Motor	Standard	22	Standard	30	Standard	22	Standard	30
Frame	Hydraulic crawler chassis	Standard	/	Standard	/	Standard	/	Standard	/
Frame	Boat frame		/		/		/		/
Upper sieve conveyor	Specification	B800*11.5m	7.5			B800*11.5m	7.5
Upper sieve conveyor	Drive method	Electric drum drive	/			Electric drum drive	/
Main conveyor	Specification			B1200*11.5m	11			B1200*11.5m	11
Main conveyor	Drive method			Electric drum drive	/	Electric drum drive		Electric drum drive	/
Under the screen conveyor	Specification	B800*8.5m	5.5	B1000*8.5m	7.5		5.5	B1000*8.5m	7.5
Under the screen conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Large material conveyor	Specification	B500*7m	4	B650*7m	5.5		4	B650*7m	5.5
Large material conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Medium material conveyor	Specification	B500*9.5m	4	B650*9.5m	5.5		4	B650*9.5m	5.5
Medium material conveyor	Drive method	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/	Electric drum drive	/
Single power system	Walking engine	Yuchai diesel engine	78	Yuchai diesel engine	78	Yuchai diesel engine	78	Yuchai diesel engine	78
Dual power system	Generator set	Yuchai diesel engine	100	Yuchai diesel engine	100	Yuchai diesel engine	100	Yuchai diesel engine	100
Electrical System	Electric control cabinet	Host soft-start, CHINT electrical components.	/	Host soft-start, CHINT electrical components.	/	Host soft-start, CHINT electrical components.	/	Host soft-start, CHINT electrical components.	/
Matching		Belt Conveyor Folding Cylinder		Belt Conveyor Folding Cylinder		Belt Conveyor Folding Cylinder		Belt Conveyor Folding Cylinder
Matching		Hydraulic pumps, valves, stations and tubing accessories		Hydraulic pumps, valves, stations and tubing accessories		Hydraulic pumps, valves, stations and tubing accessories		Hydraulic pumps, valves, stations and tubing accessories
Dimensions(m)L×W×H		Working size1516.85.3	Transport size17.53.83.5	Working size15.317.25.5	Transport size184.13.65	Working size:1516.85.3	Transport size17.53.83.5	Working size15.317.25.9	Transport size184.14.05
Weight (t)		Single-power model30tDual-power models31t		Single-power model32tDual-power models33t		Single-power mode:31t Dual-power models:32t		Single-power model33t Dual-power models34t
Power (kw)		Single-power model: 43kw(not including walking engine power),Dual-power models: 43kw(not including generator set power)		Single-power model: 59.2kw(not including walking engine power),Dual-power models: 59.5kw(not including generator set power)		Single-power model47kw (not including walking engine power) Dual-power models47kw (not including generator set power)		Single-power model 65kw (not including walking engine power) Dual-power models65kw (not including generator set power)

Special Design of different models of the mobile crushing plant will be available upon request.

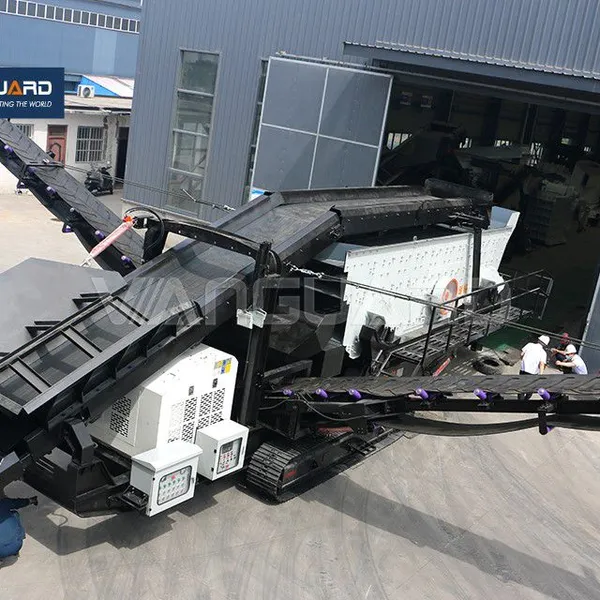

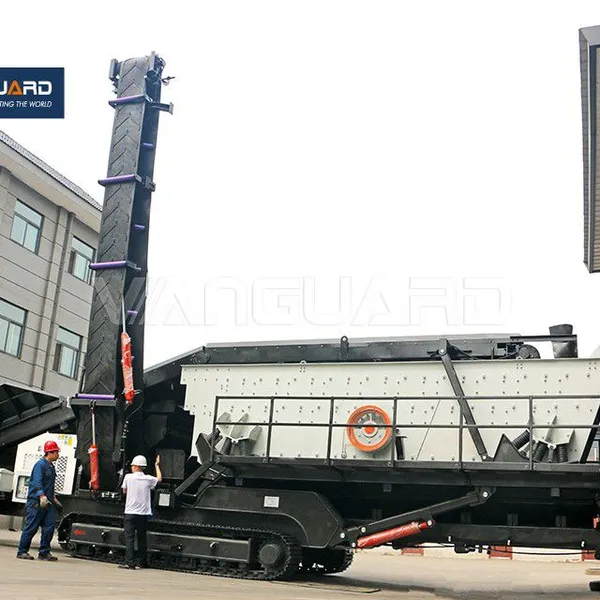

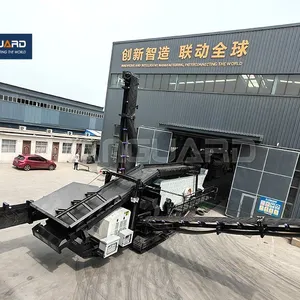

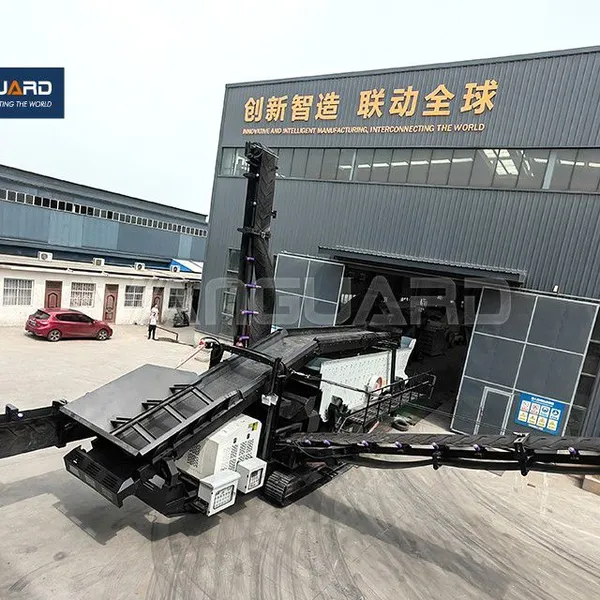

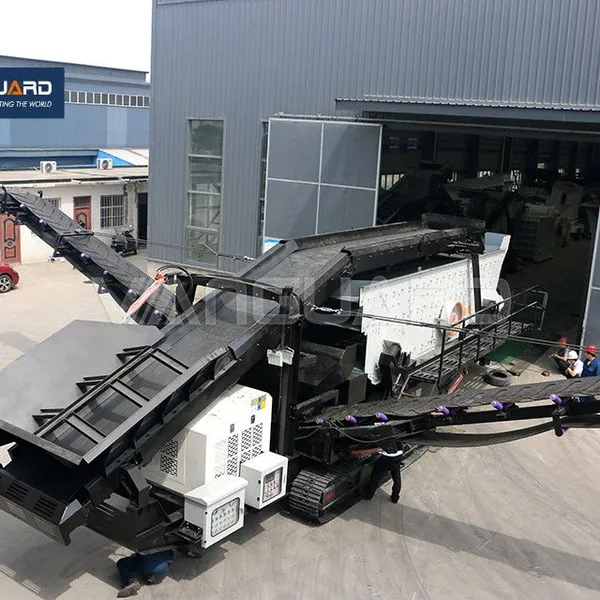

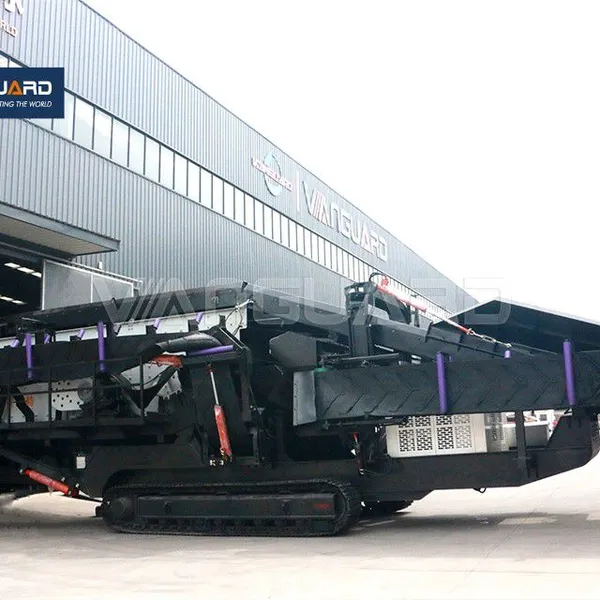

PRODUCT DISPLAY

STRUCTURAL FEATURES

▲Tracked chassis, adapt to more terrain；flexible movement, faster and more efficient transition, saving time and maximizing revenue.

▲The machine can be operated by local electric power. Thus the operating cost will be cut down and the emission of CO2 and nitrogen oxides is highly reduced. When there is electricity breakdown and under voltage, the diesel oil power device will be started to work to guarantee the continuous operation of the machine.

▲It is of high intensity, low on ground pressure etc. And it is easy to be transported on different terrains like mountain and
marsh.

▲It's with remote control operation and has a smaller turning radius and flexible driving in the work area, and at the same time can maintain a safe working distance.

PRODUCT APPLICATION

Processed Material:

Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
