J-SD200 Dry Three Dimensional Vibration Screening Instrument

J-SD200 Dry Three Dimensional Vibration Screening Instrument thumbnail-1
J-SD200 Dry Three Dimensional Vibration Screening Instrument photo-1
US$ 2780 ≥1 Piece
Key Specifications
Get Latest Price
Type:
Linear
Warranty:
1 Year
Function:
High Frequency Vibrating Screen
Contact Supplier Request Quote Chat Now
Zhejiang Jiechen Instrument & Equipment Co., Ltd.
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
7 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Linear
Warranty 1 Year
Function High Frequency Vibrating Screen
Transmission Structure Eccentric Vibrating Screen
Running Track Linear Vibrating Screen
Customized Non-Customized
Condition New

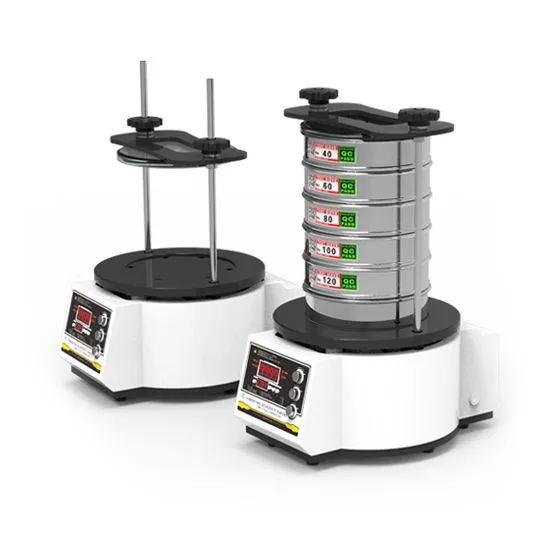

The digital high-frequency mechanical vibration screening instrument J-SD200 is dedicated to solving common screening tasks in laboratories, suitable for screening dry samples of 20g-3kg. The product follows the design concept of precision, efficiency, and * *, and is equipped with a time control panel to achieve continuous and intermittent screening and timing functions with constant amplitude. It also includes password lock screen protection and one click reset, making it easy to use, easy to operate, quiet and comfortable, safe and reliable.






Product Name: Dry 3D Vibration Screening Instrument


Model: J-SD200


Processing principle: High frequency three-dimensional parabolic motion


Application sample characteristics: powder like | granular | small block like | loose | suspended solids, etc


Processing type: particle size determination, separation, grading


Maximum load: 3 kg


Number of sieve layers: 1-8 layers


Maximum screening tower mass: 4 kg


Amplitude: 0.2-3 mm


Vibration frequency: 3000 times/minute


Screening particle size range: 20 μ m-125 mm


Maximum usable sieve diameter: 200mm


Maximum screening tower height: 510mm


Main functions: digital control | timing | continuous screening | intermittent screening


Additional features: Comfortable visual screen pressing plate


Screening method: dry type


Electrical description: 100-120V/200-240V AC, 50-60Hz, 200W


Power ports: National/European/American/British standards, etc


Net weight: 35 kg


Dimensions (width, thickness, height): 300 * 405 * 685mm


Protection level: IP65
