Factory Price Mobile Cone Crusher Aggregate Stone Rock Lime Crushing Plant

Name: Factory Price Mobile Cone Crusher Aggregate Stone Rock Lime Crushing Plant
Brand: VANGUARD
Price: Negotiable

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Qingdao
Payment Terms:T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Brand Name:	VANGUARD	Place of Origin:	China	Type:	Cone Crusher
Certification:	ISO9001-2008 international quality management system certification and European CE certification	After-sales Service Provided:	Engineers available to service machinery overseas	Warranty:	12 months
Application:	stone,ore,coal,sand	Condition:	New	Motor Type:	AC Motor
Capacity(t/h):	15-650TPH

Product Description

MBP series cone crusher is equipped with a cone crusher suitable for medium and fine crushing with excellent performance, special crushing wall and concave design, supplemented by curved cavity and hydraulic cavity cleaning system, which can effectively improve crushing efficiency and effectively reduce operation loss.

PRODUCT PARAMETERS

Project	Device Name		Models and Specifications	Power (kW)	Amount
Project	Device Name		Models and Specifications	Power (kW)	Amount
HP300 cone crusher + 1542 return screen	cone crusher	equipment	HP300	/	1
		triangle belt	Standard	/	7
		motor	Standard	250	1
	return screen	equipment	1542	/	1
	return screen	vibration motor	Standard	3.7	2
	modular steel structure		Standard	/	1
	feeding conveyor	Specification	B1000*6m	7.5	1
	feeding conveyor	drive mode	electric drum drive	/	1
	main conveyor	Specification	B1000 * 8.7m	7.5	1
	main conveyor	drive mode	electric drum drive	/	1
	underscreen conveyor	Specification	B1200*6.2m	7.5	1
	underscreen conveyor	drive mode	electric drum drive	/	1
	transfer conveyor	Specification	B650*2m	3	1
	transfer conveyor	drive mode	electric drum drive	/	1
	return conveyor	Specification	B500*9.5m	5.5	1
	return conveyor	drive mode	electric drum drive	/	1
	Electrical System	Electric control cabinet	Host soft start, electrical components Chint	/	1 set
		Belt conveyor folding cylinder		/	1 set
		Hydraulic Pumps, Valves, Stations and Tubing Accessories		/	1 set
Total power 288.4KW

Special Design of different models of the mobile crushing plant will be available upon request.

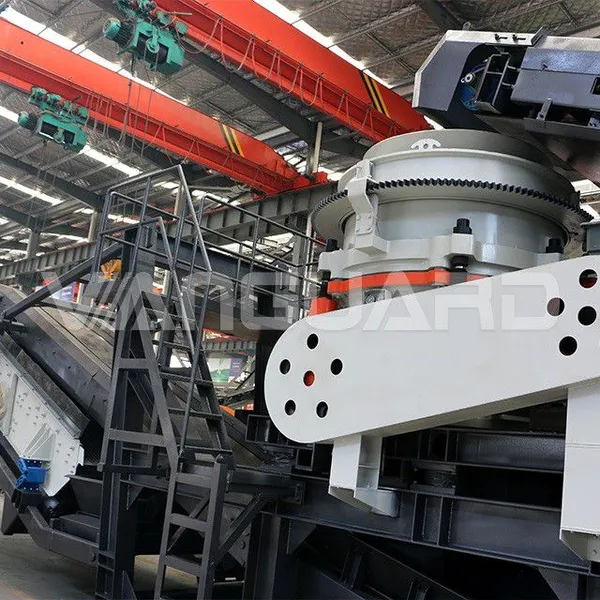

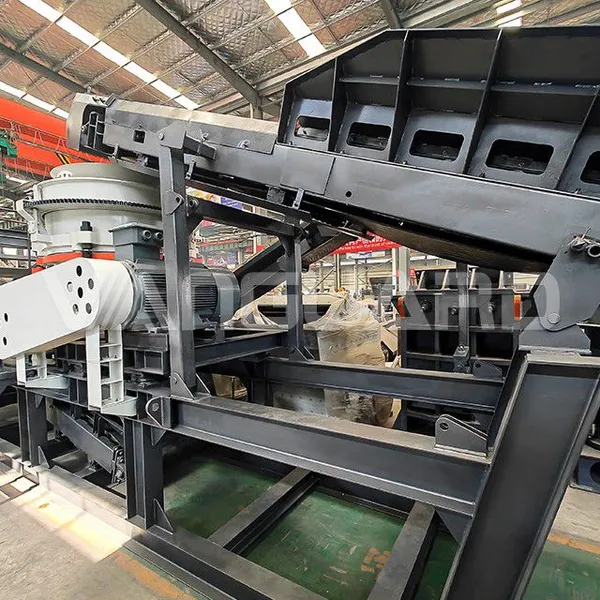

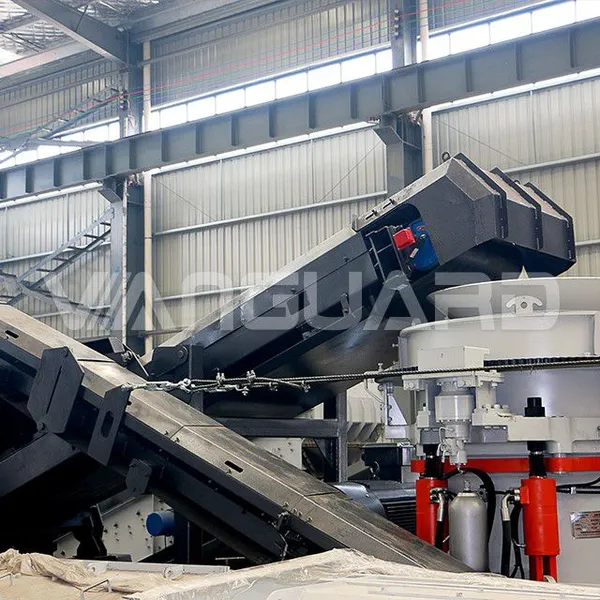

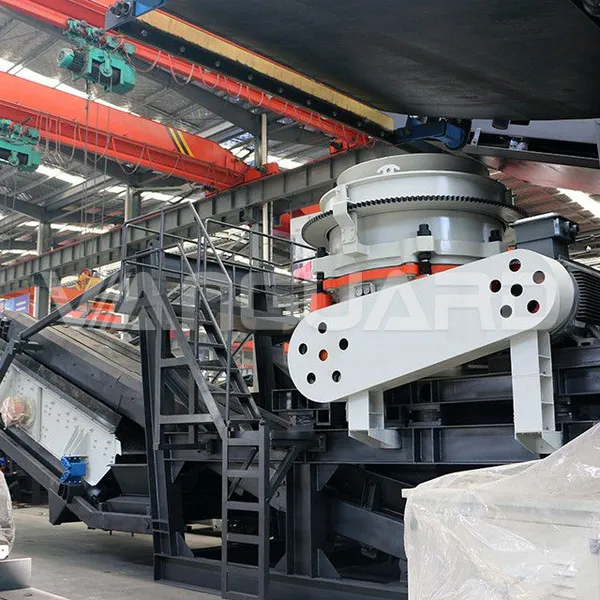

PRODUCT EXHIBITION

PRODUCT ADVANTAGES

Excellent grain shape

The material is crushed by the principle of lamination crushing, with high crushing efficiency and low wear of wearing parts. After crushing, the finished product is cubic with high fine-grained content, which can well meet the needs of some high-quality aggregates at this stage.

Wider applicability

This series of cone crushers has a larger feeding port, which can exert maximum performance to adapt to various crushing processes. It is widely used in medium crushing, ultra-fine crushing, stationary and mobile crushing plants. The optimized design of crushing speed, eccentricity (stroke) and cavity design are perfectly combined to provide higher capacity and better product quality.

High degree of automation

The thin oil lubrication system adopts the redundant design of double oil pumps and double filters, which can be lubricated before the equipment is started, with strong adaptability, easy control, and prolongs the service life of parts.

Integrated motor installation

The integrated installation method of the motor base and the crusher frame not only saves the installation space of the jaw crusher.

Moreover, due to the synchronous movement of the frame, the motor base and the motor, and the adjustable motor base, the tension of the V-belt can be adjusted so that the service life of the V-belt is longer.

PRODUCT APPLICATION

Processed Material:

Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble.etc

CUSTOMERS' SITES

Packaging and Shipping

About VANGUARD

Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, mineral processing machine, EPC general contract project, etc. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular manufacturer in global mining industry.

Matching of production and support system allows customers to get the best service at the lowest cost.

Qualification

All of our products have passed ISO9001-2008 international quality management system certification, European CE certification and Russia GOST certification, and our company has established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fields.

Our Services

FAQ

Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at lowest cost.

Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.

Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.

Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
