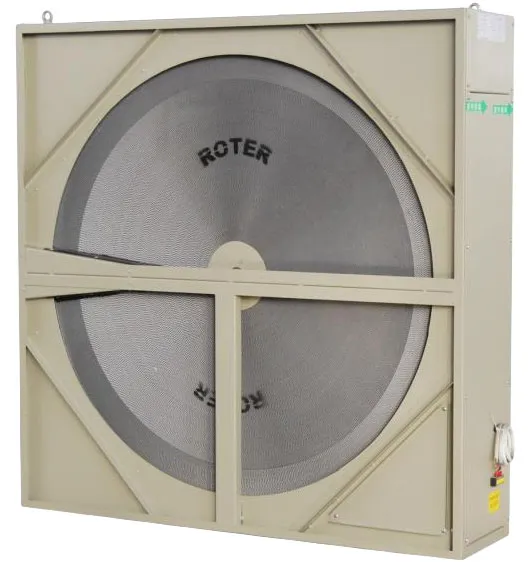

Help CenterHigh Efficiency Heat Recovery Wheel for Air Handling Unit Factory Low Price Heat Exchanger
Related Products
-
3A Molecular Sieve Enthalpy Heat Recovery Wheel HRW 200mm 270mmUS$ 500 - 5000MOQ: 1 Piece -
Crossflow and Counterflow Plate Heat Recovery for Air Handling Unit Factory Low Price Heat ExchangerUS$ 2000 - 5000MOQ: 10 Pieces
-
Factory Price Heat Pipe Heat Recovery for Air Handling Unit Heat Exchanger Chinese ManufacturerUS$ 2000 - 5000MOQ: 10 Pieces
-
Air to Air Plate Enthalpy and Sensible Heat Exchangers Used in Fresh Air Energy Recovery Ventilation SystemUS$ 50 - 500MOQ: 200 Pieces
-
Plate Frame Enthalpy E.R. Paper Heat Exchanger for Air Handling Unit to Transfer Energy From Exhaust Air to Fresh AirUS$ 50 - 500MOQ: 200 Pieces
General Features
◆ Sensible heat type HRW and enthalpy type HRW both are available;
◆ The 3A molecular sieve desiccant only allows water molecules to pass through and rejects all other pollutants;
◆ Roter heat recovery wheels own particularly high structural strength (0.04mm / 0.05mm / 0.06mm thick aluminum foil are for option);
◆ 2.0mm and 2.5mm wave height (honeycomb aperture height) are for option. The wheel thickness can be optional 200mm or 270mm
|
|
Wave height 2.0mm and 2.5mm are for option |
|
|
Wheel thickness 200mm and 270mm are for option |
◆ Optional cassette materials: factory standard is powder coating cold-rolled steel, but galvanized steel,stainless steel and aluminum-zinc steel cassettes are available too;
|
Cold-rolled steel with powder coating cassette |
|
|
Stainless steel cassette |
◆ Wheel dia. can be selected from Φ500mm to Φ5000mm; Wheel can be delivered with different wheel sections; Cassette can be one-piece type or split type;
|
|

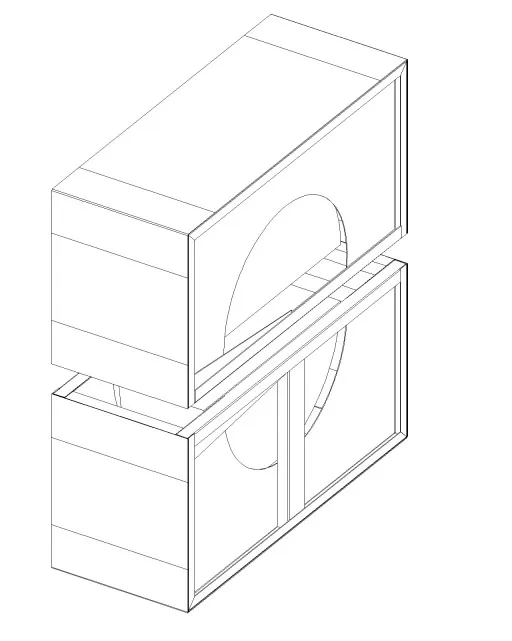

One-piece cassette |
|
Split cassette |
◆ Highly polished surface: Within the range of 2000mm on the vertical surface, the horizontal deflection distance is less than 2mm, so that the air leakage rate can be minimized;
◆ High heat recovery rate: When facing velocity is 3.5m/s and the air resistance is170Pa, the rated heat recovery efficiency can be as high as 79%;
◆ Built-in purge sector eliminates cross-contamination;
|
Purge Sector |
◆ The flexible dustproof brush minimizes the heat loss, also reduces friction, and prolongs the service life of the driving motor;
◆ VFD controller is optional.
Wheel Materials
Sorption wheel’s material (total heat type / enthalpy type):

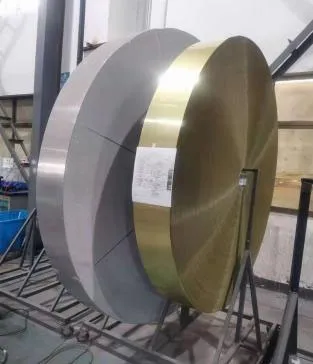

（1）Made of special aluminium foil with 3A molecular sieve coating
Condensation wheels’ materials (sensible heat type):
（1）Standard series (Code B): made of aluminium foil, optional thickness 0.04mm / 0.05mm / 0.06mm
（2）Anti-corrosive series (Code F): aluminium foil with epoxy coating
（3）High-temperature resistant series (Code G): aluminium magnesium alloy or chromite steel foil
