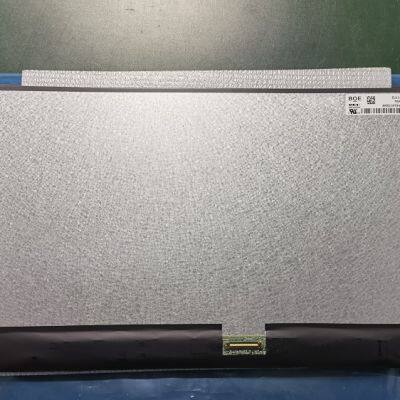

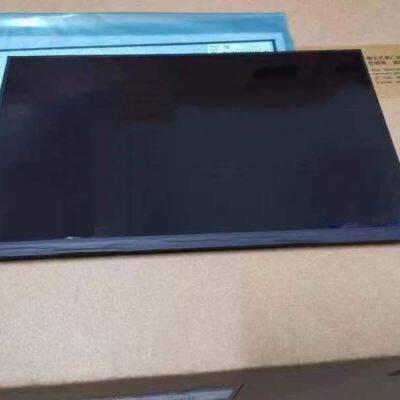

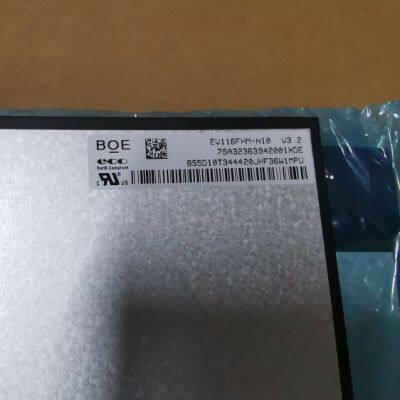

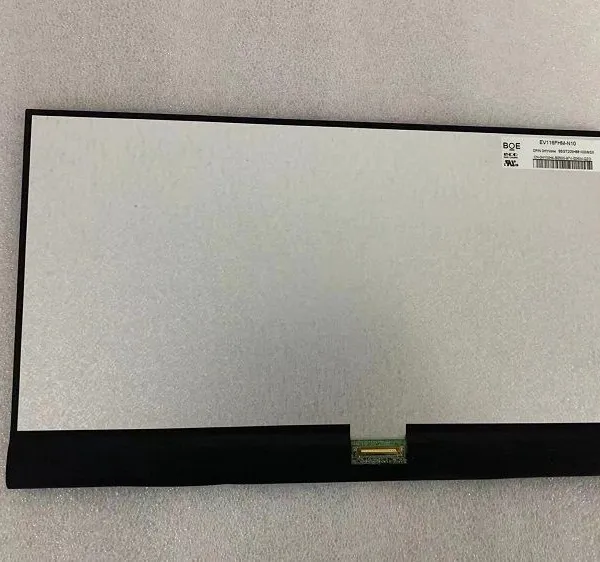

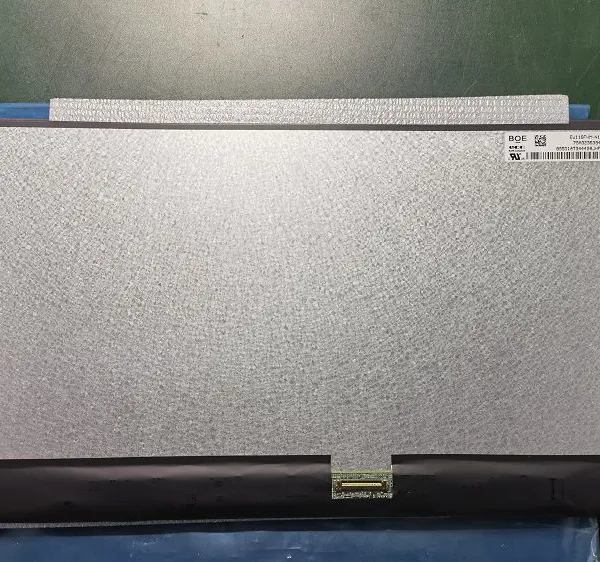

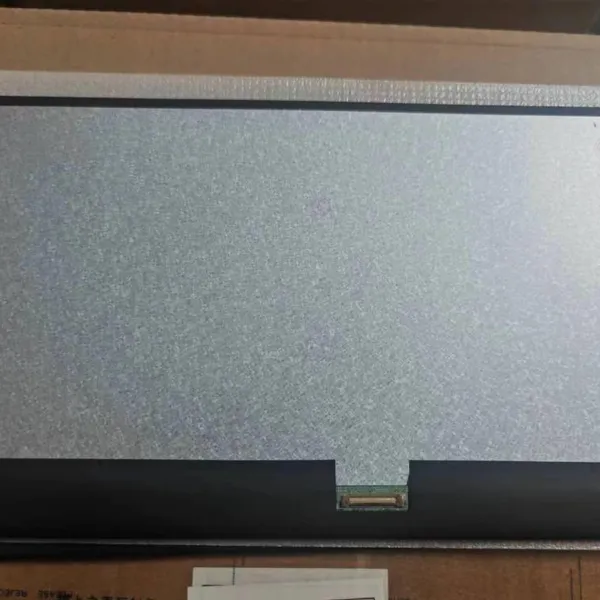

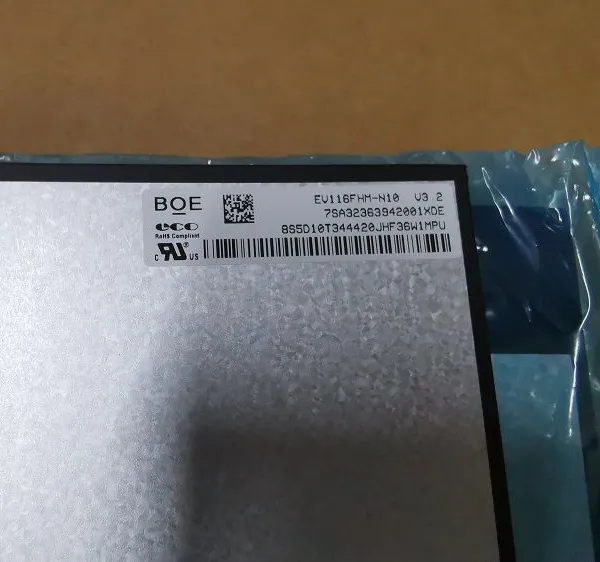

11.6 inches EV116FHM-N10

Panel brand BOE

Panel model EV116FHM-N10.

Panel size 11.6 inches Panel type a-Si TFT-LCD, LCD module.

The resolution is 1920(RGB)×1080, FHD, 190PPI.

Pixel layout RGB vertical bars.

Display area is 256.32 (w) × 144.18 (h) mm.

The external dimension is 260.32 (w) × 174.58 (h) × 4.5 (d) mm. ..

Open area

-surface treatment fog surface (Haze 25%), Hard coating (3H)

Display brightness

Contrast ratio 1000:1 (Typ.) (transmission)

All-angle response time 30 (Typ.)(Tr+Td) ms

Viewing angle 85/85/85/85 (Typ.)(CR≥10)

Display mode ADS, normally black display, transmissive

Support color 16.7M

Type of light source wled [8s5p], 30kh, including LED driver.

Weight TBD application products

Frame frequency is 60Hz.

Touch technology without touch

Interface type 30 pins eDP (2 Lanes), terminal

The voltage supply is 3.3V (Typ.)

Application environment

Working temperature:-20 ~ 70 C; Storage temperature:-30 ~ 80 C.
