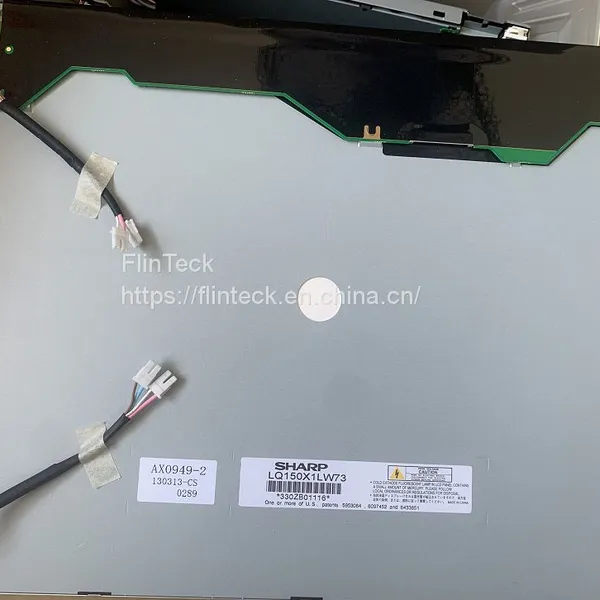

Help CenterLQ150X1LW73 SHARP Panel Size 15.0 Inches
Related Products
Panel brand Sharp
Panel model LQ150X1LW73
Panel size 15.0 inches
Panel type a-Si TFT-LCD, liquid crystal module;
The number of pixels is 1024(RGB)×768, XGA, 85PPI.
Pixel layout RGB vertical bar
The display area is 304.128 (width) ×228.096 (height) mm.
Visible area is 307.2 (width) ×231.1 (height) mm.
The external dimensions are 331.6 (width) ×254.76 (height) ×13 (thickness) mm.
Surface treatment fog surface (Haze 25%), Hard coating (3H)
Panel brightness 450 cd/m² (Typ.)
Contrast 400:1 (Typ.) (TM)
Viewing angle 85/85/85/85 (Typ.)(CR≥10)
Working mode ASV, normally black display, transmissive
Angle of view All-angle reaction time 25 (Typ.)(Tr+Td)
Display color 16.2M, 70% NTSC
Light source type 4 pcs CCFL, 50K hours, excluding driving.
Touch screen with working frequency of 60Hz has no touch.
Panel weight 1.30Kgs (Max.)
Panel application signal interface LVDS (1 ch, 8-bit), 20 pins, terminal.
Screen driving voltage is 3.3V (Typ.).
Working environment:-20 ~ 80 C; Storage:-25 ~ 85 c
