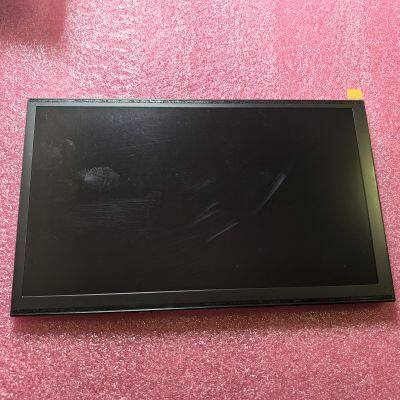

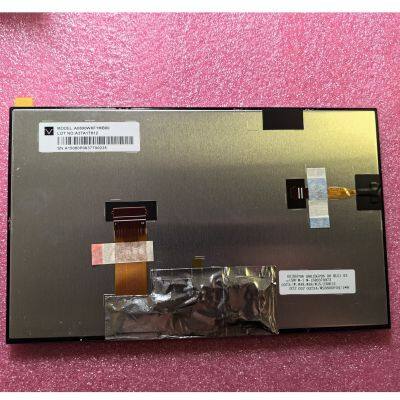

TIANMA panel model A0800WXF1MB00 compatible

Panel brand TIANMA panel model A0800WXF1MB00 compatible model 1 compatible model

Panel size 8.0 inches Panel type a-Si TFT-LCD, LCD module.

The resolution is 1280(RGB)×720, WXGA, 184PPI.

Pixel layout RGB vertical bars.

The display area is 176.64 (w) × 99.36 (h) mm.

The external dimension is 192.8 (w) × 116.9 (h) × 8.5 (d) mm. ..

The visible size is 179.64 (w) × 102.21 (h) mm.

Surface treatment Hard coating

Brightness (CD/m) 1200 (typ.)

Contrast ratio 1300: 1 (Typ.) [transmission]

Optimum angle

Full view angle

Optical mode SFT, normally black display, transmissive

Viewing angle 88/88/88/88 (Typ.)(CR≥10)

Response speed 25 (Typ.)(Tr+Td) ms

Color quantity 16.7M, 73% NTSC

Backlight type 6S3P WLED, 50K hours, no drive.

Screen weight 186±9g

. signal system LVDS (1 ch, 8-bit), FPC, 30 pins.

Supply voltage

3.3V (Typ.)

Maximum rating

Storage temperature:-40 ~ 85 C and working temperature:-30 ~ 85 C.
