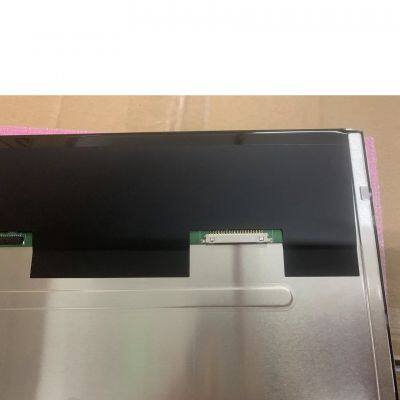

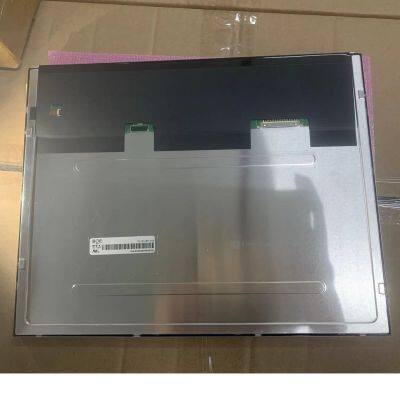

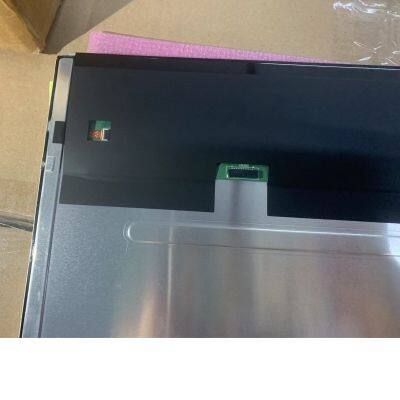

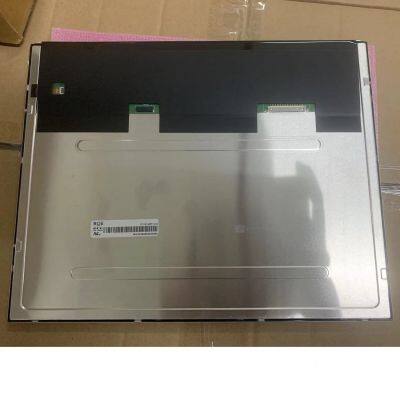

Panel Model PV121X0M-N10

Panel brand BOE

Panel model PV121X0M-N10.

Panel size 12.1 inches Panel type a-Si TFT-LCD, LCD module.

The resolution is 1024(RGB)×768, XGA, 105PPI.

Pixel layout RGB vertical bars.

The display area is 245.76 (w) × 184.32 (h) mm.

The external dimension is 260.5 (w) × 204 (h) × 9.2 (d) mm. ..

Opening area 249(W)×187.5(H) mm

Surface treatment-display brightness of 500 cd/m² (Typ.)

Contrast ratio 1200:1 (Typ.) (transmission)

The recommended viewing angle is 30 (typ.) (tr+TD) ms.

Viewing angle 86/86/86/86 (Typ.)(CR≥10)

Display mode ADS, normally black display, transmissive.

Support color 16.7M, 72% NTSC.

Type of light source WLED, 50K hours, including LED driver. Weight-application product

The frame frequency is 60Hz.

Touch technology has no touch.

Interface type 20 pins LVDS (1 ch, 8-bit), terminal.

The voltage supply is 3.3V (Typ.).

Working temperature of application environment:-20 ~ 70 C; Storage temperature:-30 ~ 80 C.
