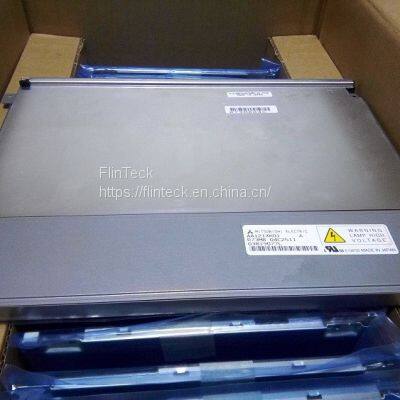

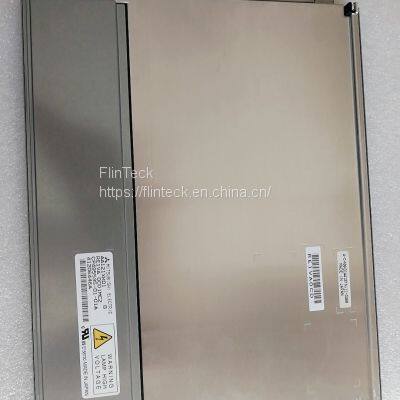

AA121XK01 Mitsubishi 12.1 Inch LCD Screen

Panel brand Mitsubishi

Panel model AA121XK01

Panel size 12.1 inches

Panel type a-Si TFT-LCD, LCD module

The number of pixels is 1024(RGB)×768, XGA, 105PPI.

Pixel layout RGB vertical bar

The display area is 245.76 (width) ×184.32 (height) mm.

Visible area is 249.0 (width) ×187.5 (height) mm.

The external dimension is 280 (width) ×210 (height) ×12.5 (thickness) mm.

Surface treatment fog surface, Hard coating (3H)

Panel brightness 500 cd/m² (Typ.)

Contrast 600:1 (Typ.) (TM)

Viewing angle 80/80/60/80 (Typ.)(CR≥10)

Working mode TN, normally white display, transmissive

Angle of view 6 o'clock

Reaction time 6/19 (Typ.)(Tr/Td) ms

Display color 262K/16.7M, 40% NTSC.

Light source type 2 strings WLED, 100K hours, without driving.

Working frequency 60Hz

Touch-free screen

Panel weight 750g (Typ.)

Signal interface LVDS (1 ch, 6/8-bit), 20 pins, terminal

Screen driving voltage is 3.3V (Typ.).

Working environment:-30 ~ 80 C; Storage:-30 ~ 80 c
