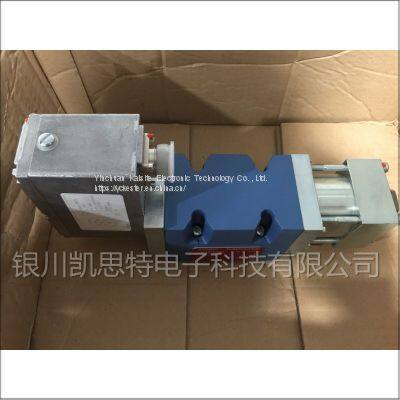

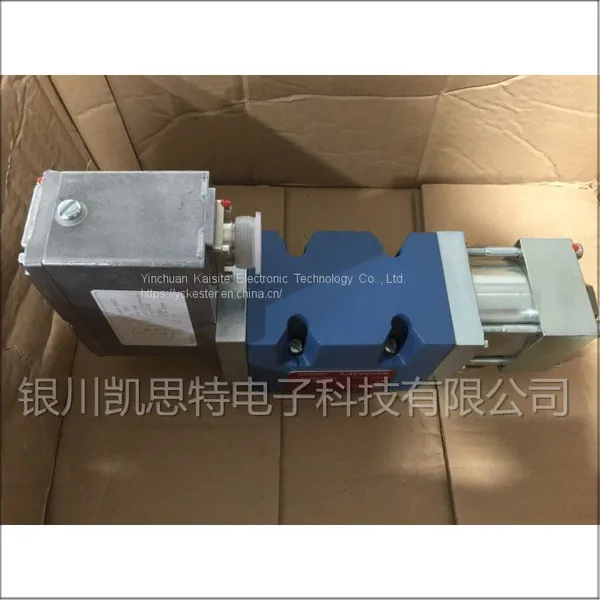

Moog Flexible Control High Pressure Capability Low Energy
Servo Valve D634-501A
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
| Brand | Moog |
| Model | D634-501A |
| Color | Blue |
| Material | Cast Iron |
| Power Source | Electric |
| Place Of Origin | America |
Advantages
Direct-Acting Design
The valve spool is directly driven by a permanent magnet linear force motor, eliminating the need for the hydraulic pilot stage found in traditional servo valves. This simplifies the system structure, avoids pilot oil leakage, and significantly improves contamination resistance and operational reliability.
High Dynamic Response Characteristics
The linear force motor has a high undamped natural frequency (approximately 250Hz), enabling the valve to respond quickly to control signals. This high dynamic performance makes it suitable for closed-loop systems requiring fast and precise control.
Low Hysteresis And High Resolution
The valve spool position is controlled in a closed loop (via LVDT displacement sensor feedback), and precision manufacturing processes achieve extremely low hysteresis and high resolution. This ensures high control accuracy and good repeatability.
Flexible Control
Compared to proportional electromagnets that only provide unidirectional drive force, the linear force motor can actively drive the valve spool away from the spring center position in both directions. This push-pull operation provides greater drive force and more flexible control capabilities.
Fail-Safe Protection
In the event of a power outage, cable breakage, or emergency shutdown, the valve spool automatically returns to the spring-aligned safe position, preventing it from passing through the fully open control port. This design significantly improves system safety and avoids the risk of uncontrolled operation due to sudden failures.
High Pressure Capability
Capable of withstanding system pressures up to 350 bar (5000 psi), suitable for high-pressure hydraulic systems, ensuring stable operation under harsh conditions.
Low Energy Consumption Design
Extremely low power consumption when the valve spool is in the neutral position or nearby areas, effectively reducing energy consumption during standby and normal operation, improving overall energy efficiency.
Compact Structure And Flexible Installation
Compared to two-stage servo valves, the D634 series is approximately 30% smaller and has no specific installation orientation requirements (it can be fixed or moved in any position), with an IP65 protection rating. This makes it ideal for small to medium-sized equipment with limited space.
Excellent Contamination Resistance
The direct-acting design reduces internal leakage. Combined with the recommended β10≥75 (10μm) high-pressure filtration requirement, it significantly reduces the impact of contaminants on valve core positioning accuracy and wear, extending maintenance intervals.
Integrated Electronic System
Built-in 24VDC integrated circuit board using SMD technology integrates PWM drive and closed-loop control functions. This integrated design simplifies system wiring, improves anti-interference capabilities, and meets EMC electromagnetic compatibility requirements.
Applications
Plastic Molding Machinery
Widely used in hydraulic control systems for injection molding and blow molding equipment. Its high dynamic response and precise flow control capabilities ensure accurate adjustment of injection speed, pressure, and position, improving product quality and production efficiency.
Die Casting Equipment
Used for controlling mold closing, injection, and ejection actions in die casting machines. The valve's high pressure carrying capacity and reliability meet the stringent requirements of rapid circulation and precise pressure control in die casting processes.
Metal Forming Presses
Controls slide position, speed, and pressing force in various hydraulic presses. Low hysteresis ensures synchronization and repeatability in the pressing process, suitable for stamping, forging, and other processes.
Heavy Industrial Equipment
Suitable for heavy equipment with extremely high reliability and durability requirements, such as rolling mills and mining machinery. Its robust structure and high resistance to contamination allow for long-term stable operation in harsh environments.
Paper And Wood Processing
Used for positioning and tension control in paper winding, cutting, and wood processing equipment. Precise valve core position control ensures the flatness and dimensional accuracy of material processing.
Aerospace
Applied to critical components such as aircraft attitude control systems and control surface actuation. High reliability and fail-safe design are crucial for flight safety, while meeting the stringent weight and space requirements of the aviation industry.
Shipbuilding And Marine Engineering
Used for ship propulsion system control, deck machinery, and positioning systems. Good environmental adaptability (operating temperature -20℃ to +60℃) and vibration resistance are suitable for offshore operating conditions.
Construction Machinery
Installed in the hydraulic systems of excavators, cranes, and other equipment, responsible for the precise control of the boom, stick, and slewing. High dynamic response improves operational sensitivity and efficiency.
Energy Equipment
Used in wind turbines for blade pitch control to optimize wind energy capture efficiency; in oil and gas drilling platform control systems for precise control and to ensure operational safety.
General-Purpose Electro-Hydraulic Servo Systems
Used as standard components in various position, speed, pressure, or force closed-loop control systems requiring high dynamic response. Their ISO 4401 standard mounting interface and 24V power supply make them easy to integrate into automation systems.
