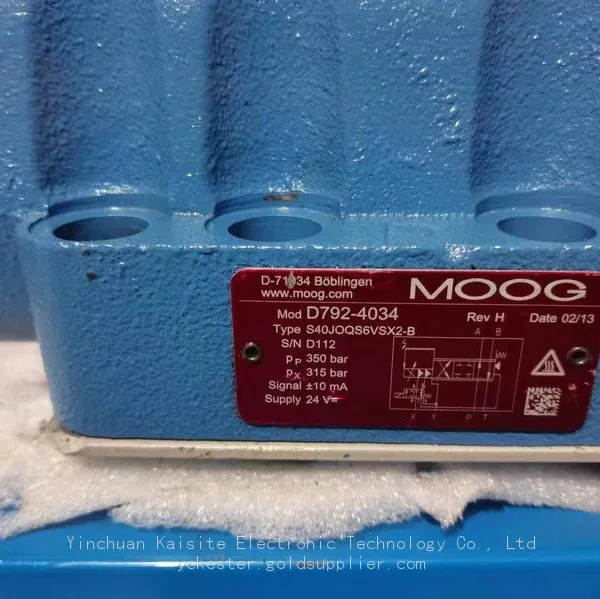

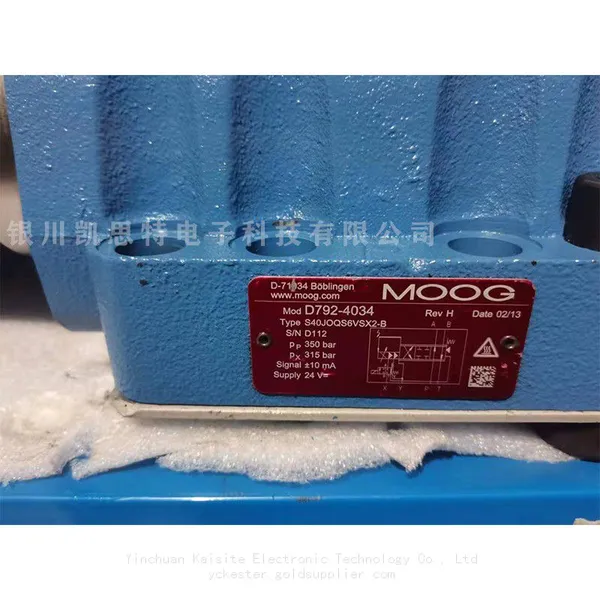

Moog Field Adjustable High Dynamic Response High Flow Density Valve D792-4034
Competitive brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, sunhydraforce, Hawe, Vickers, Siemens ,Skf and other European and American brands.
Products
Plunger pump, solenoid valve, gear pump, vane pump, direction valve, servo valve,proportional valve, hydraulic
Advantages
Ultra-high flow density
Achieves a rated flow rate of 1000 L/min with a smaller installation area, reducing pipe diameter and valve block volume, and lowering system costs.
Extremely high dynamic response100% stroke step response of 4~12 ms, frequency response >110 Hz (±5%), meeting millisecond-level control requirements for high-acceleration impact tests, rolling mill AGC, etc.
Three-stage ServoJet® pilot structureThe jet tube pilot stage has better contamination resistance than nozzle baffles, reducing oil cleanliness requirements to ISO 19/16/13, ensuring high field reliability.
Integrated electronic controlBuilt-in SMD amplifier and LVDT valve spool position closed-loop control, supporting ±10 mA/±10 V commands, allowing direct connection to PLCs/motion controllers without external servo boards, simplifying wiring.
High environmental adaptabilityVibration resistance 30 g (10 Hz~2 kHz), shock resistance 50 g; operating temperature −20 °C~+80 °C, suitable for high-vibration and high-temperature environments such as rolling mills, ships, and steam turbines.
Field adjustable & diagnosticsProvides zero point, gain, and chatter potentiometers and LED status indicators; supports fieldbus options, allowing remote reading of valve core position, temperature, and fault information, reducing commissioning and downtime.
Applications
Steel rollingAutomatic thickness control (ACG) for cold/hot rolling mills, and automatic control for roll bending and flatness (AFC), achieving thickness accuracy within 5 μm using high flow rate and fast response.
Dynamic testing and material experimentationMulti-channel road simulators, fatigue testing machines, and earthquake simulation benches, requiring force or displacement reversal within a 10~20 ms period; the D792 series combines frequency response and flow rate.
Metal Forming and PressesHigh-speed stamping, hydraulic stretching, and powder metallurgy presses; the high acceleration capability of the valves shortens the pressing cycle and improves the dimensional consistency of finished products.
Steam and Gas TurbinesAs a main steam valve/fuel servo valve, a 350 bar rated pressure and anti-fouling structure ensure long-term continuous operation.
Marine and Marine EngineeringSteering gear, deck winches, and semi-submersible platform lifting control; shock-resistant and fire-retardant liquid (water-glycol) compatible versions meet classification society requirements.
Injection Molding/Die Casting MachinesWhen high-flow, high-speed injection is required, the D792-4034 can replace multiple parallel proportional valves, reducing pressure loss and achieving energy savings and noise reduction.
