Rexroth Light Weight High Pressure Resistance Compact Size

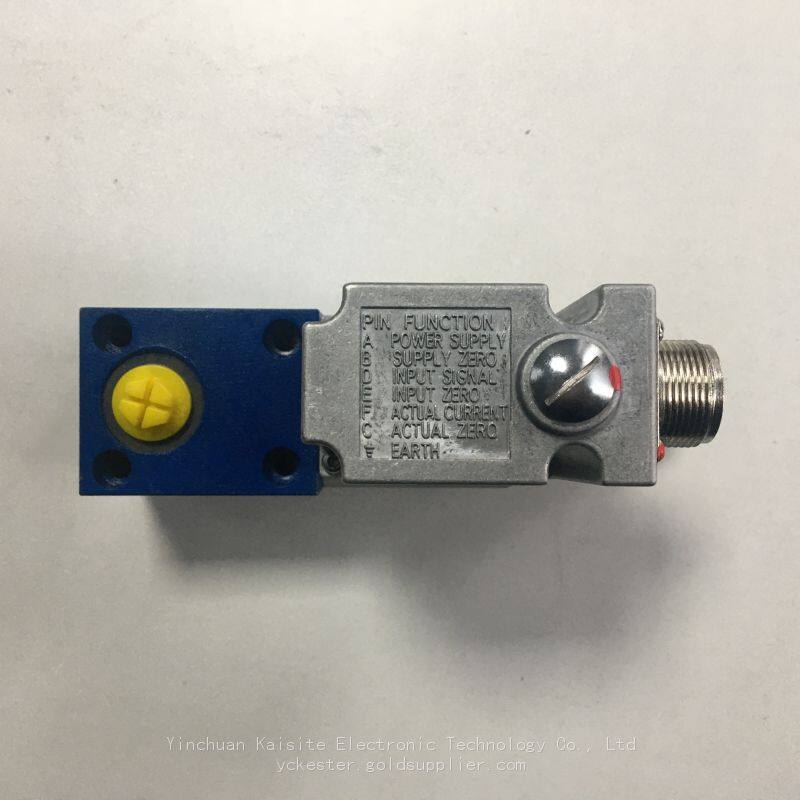

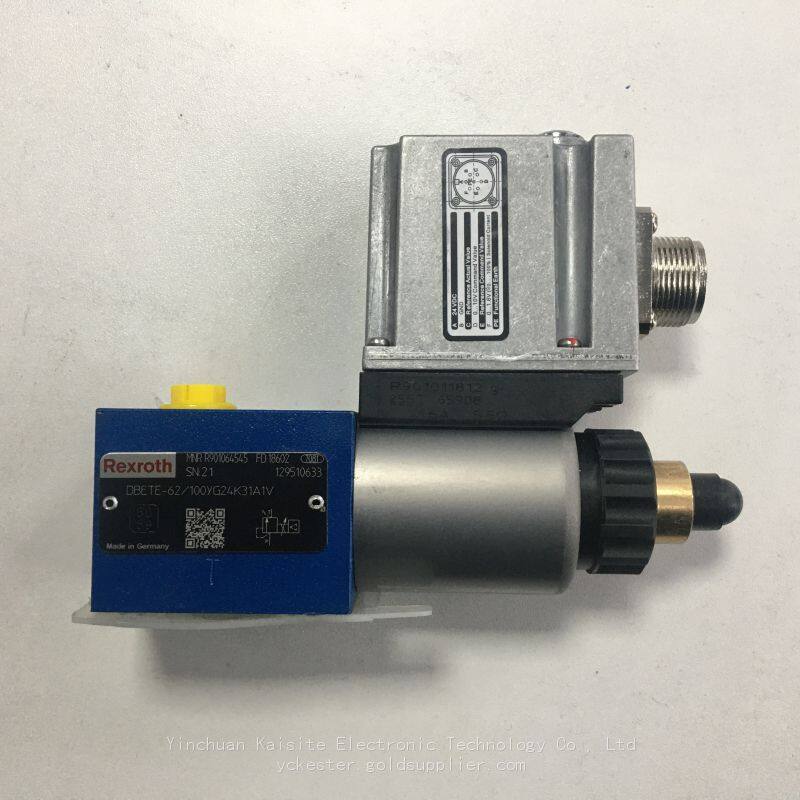

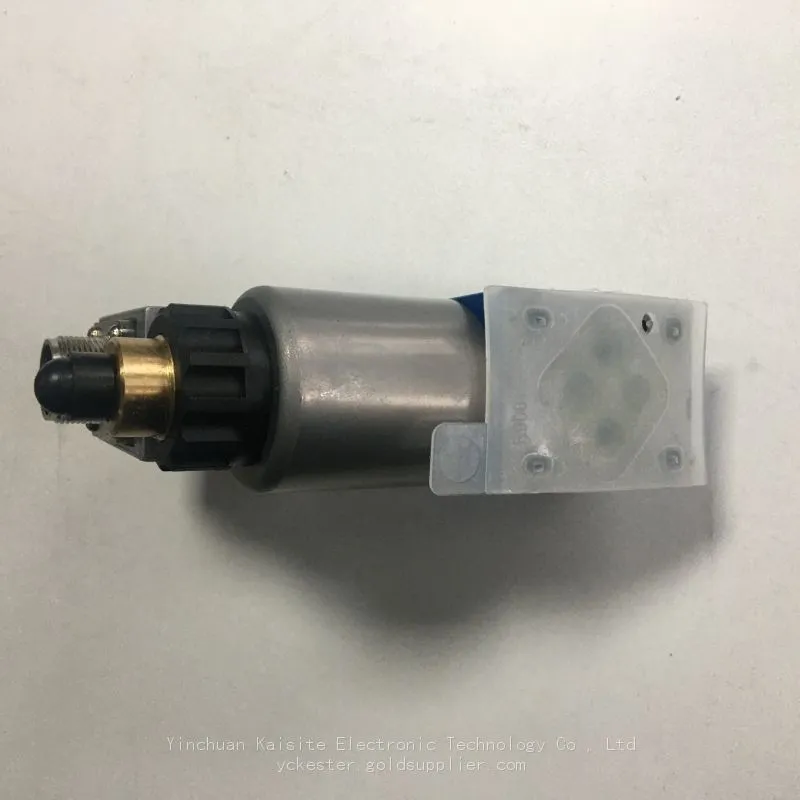

Propotional Overflow Valve DBETE-6X/100YG24K31A1V
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
| Brand | Rexroth |
| Model | DBETE-6X/100YG24K31A1V |
| Color | Silver And Blue |
| Material | Cast Iron |
| Power Source | Electric |
| Place Of Origin | Germany |
Advantages
Linear Pressure Regulation
System pressure can be steplessly set within the 0–100 bar range by inputting a 0–10 V command signal. The command-pressure characteristic curve has a manufacturing tolerance of ≤±1.5%, ensuring high repeatability and meeting closed-loop control requirements.
Integrated Electronic Amplifier
Plug-and-play design eliminates the need for external amplifiers and wiring; internal EMC shielding complies with CE-EMC 2014/30/EU, reducing commissioning and installation costs.
Direct-Acting Lifting Seat Structure
Fast response and low hysteresis (typically
High Pressure Resistance
The housing is designed for 420 bar, with reinforced seat and plunger surfaces to withstand instantaneous high-pressure impacts; FKM seals are optional, compatible with various media such as mineral oil, water-glycol, and phosphate esters, with a lifespan of ≥10 million cycles.
Compact Size And LightweightThe base plate mounting dimensions conform to ISO 4401-03, and it weighs only about 1.6 kg, facilitating integration into space-constrained valve blocks or mobile devices.
Maintenance-FriendlyThe proportional electromagnet features a centering thread, and the coil can rotate 360° for quick disassembly; the electrical interface has 7 pins (6+PE), allowing for replacement without special tools.
Applications
Injection Molding Machines And Die Casting Machines
Closed-loop proportional pressure limiting of clamping force or injection pressure improves product consistency.
Bending Machines And Shearing MachinesReal-time adjustment of platen or shearing pressure via CNC system to meet different plate thicknesses and materials.
Test Benches And Laboratories
Low-flow, high-precision pressure source for component fatigue and burst testing.
Mobile/Sanitation EquipmentLow-flow pilot system for road sweepers and aerial work platforms, enabling remote pressure adjustment and energy-saving unloading.
Machine Tool Hydraulic Clamping
Automatically adjusts clamping pressure according to workpiece size to prevent overpressure deformation.
Marine And Offshore Applications
As a proportional back pressure valve for water-glycol systems, the circuit pressure can be remotely set and monitored.
