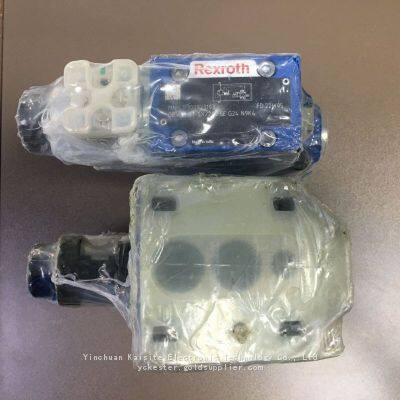

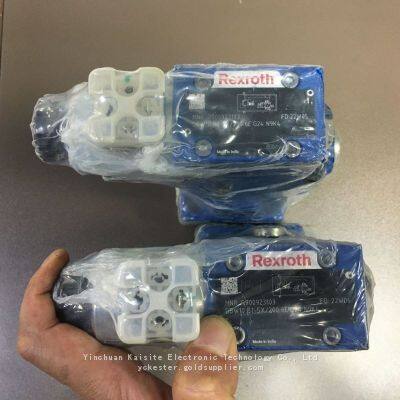

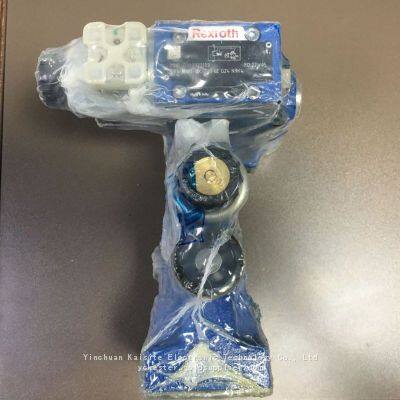

Rexroth Large Flow Design High Pressure Rating Low Noise
Valve DBW10B1-5X/200-6EG24N9K4
Competitive Brands
Rexroth, Hagglunds, Aventics, Danfoss, Parker, Moog, Sunhydraforce, Hawe, Vickers, Siemens, Skf and other European and American brands.
Products
Plunger pump, Solenoid valve, Gear pump, Vane pump, Direction valve, Servo valve, Proportional valve, Servo motor
Details
| Brand | Rexroth |
| Model | DBW10B1-5X/200-6EG24N9K4 |
| Color | Blue |
| Material | Cast Iron |
| Power Source | Electric |
| Place Of Origin | Germany |
Advantages
Pilot-Operated Structure, High Pressure Regulation Accuracy
This valve adopts a pilot-operated relief valve structure, consisting of a main valve and a pilot valve. Compared to direct-acting relief valves, the pilot-operated structure, through pre-pressure regulation by the pilot valve, results in better force balance on the main valve core, achieving smaller pressure regulation deviations and less pressure fluctuations, leading to more stable system pressure.
Electromagnetic Control Unloading Function
The "W" in the model number indicates electromagnetic control. Remote electrically controlled unloading can be achieved through the operation of the solenoid coil of the included directional spool valve or directional seat valve.
High Pressure Rating, Strong Pressure Resistance
This valve has a maximum working pressure of up to 350 bar, falling into the high-pressure category. The "200" in the model number indicates a rated pressure of 200 bar, but the structure supports higher pressure ratings, providing a large overload capacity suitable for high-pressure hydraulic systems.
Large Flow Design
Maximum flow rate up to 650 L/min, providing strong flow capacity. The size 10 valve body design ensures a large flow area, reducing pressure loss and making it suitable for high-flow hydraulic systems.
Base Plate Mounting
The oil port mounting surface conforms to ISO 6264-AR-06-2-A standard, specification 10.
Pressure Ratings Available
The product series offers 5 different pressure ratings, allowing users to select the most suitable pressure range based on actual operating conditions for refined pressure management.
Optional Reversing Shock Attenuation
For DBW types, a reversing shock attenuation function is optional, reducing hydraulic shock during valve switching, extending system component life, and reducing noise.
Heavy-Duty Solenoid Coil
Equipped with a heavy-duty solenoid coil (6EG24N9K4 indicates 24V DC), the coil is durable and can operate continuously. An explosion-proof coil is optional to adapt to harsh operating conditions.
System Safety Protection
When used as a safety valve, it opens to overflow when the system pressure exceeds the set pressure (usually 10%-20% higher than the maximum working pressure), providing overload protection and preventing accidents caused by abnormally high system pressure.
Application Areas
Injection Molding Machines
Used for pressure control and system safety protection during mold clamping, injection, and holding pressure processes.
Blow Molding Machines
Controls mold closing pressure and blow molding pressure.
Rubber And Foaming Machines
Precisely controls molding pressure to ensure product quality.Applications in the hydraulic systems of construction machinery such as excavators, loaders, and road rollers, enabling pressure control and unloading functions for working devices.
Petroleum And Mining Equipment
Suitable for hydraulic systems in oil drilling and mining machinery; its high pressure rating and explosion-proof coil options (available upon request) meet industry safety requirements.
Road/Rail/Marine Machinery
Used in the hydraulic systems of road machinery, rail transit equipment, and ships, providing stable pressure control and system protection.
Textile Machinery
Used as a back pressure valve in the hydraulic systems of textile equipment to generate back pressure and increase the smoothness of moving parts.
Metalworking Machinery
Used in the hydraulic systems of CNC machine tools, stamping machines, and other equipment requiring precise pressure control and unloading functions.
Die Casting Machinery
The mold closing and injection mechanisms of die casting machines require precise pressure control and safety protection.
Metallurgical Equipment
Used as a sequence valve or unloading valve in hydraulic systems within the metallurgical industry to achieve sequential operation of multiple actuators.
General Hydraulic Systems
Widely used as a remote pressure regulating valve or high/low pressure multi-stage control valve in various industrial hydraulic systems requiring pressure regulation and system protection.
