LED Linear Light--EXC-U28NCB0
- shenzhen
- T/T
You May Like
-
Hot selling Aluminium 72W 108W led flood garden lights outdoor projector flood lamp
-
Outdoor inground spotlight waterproof ip66 housing stainless steel rgb recessed underground light
-
Led Wall Washer light Rgb Dmx IP66 Aluminium Housing Outdoor Waterproof Wall Wash Lighting DMX512 Outdoor Building Lighting
-
24W LED Wall Washer Landscape light DC24V outdoor lights Decoration wall
-
Bright 18 LEDs 100cm aluminium profile for led bar light profile aluminum Linear lights
-
Flood Light Led Outdoor 15W Exterior Waterproof Spotlight Garden Lighting
Product Details
| Brand Name | EXC | Place of Origin | China | |
| Model Number | EXC-U28NCB0 | Certification | CCC, CE, ETL | |
| Lamp Body Material | Aluminum Alloy | IP Rating | IP66 | |
| Color Temperature(CCT) | Other, Optional | Lamp Luminous Efficiency(lm/w) | 40LM/W(White), 20LM/W(RGB), 30LM/W(RGBW) | |
| Lamp Power(W) | 9W/12W/15W/18W | Input Voltage(V) | DC 24V | |
| Working Lifetime(Hour) | 50000h | CRI (Ra>) | 80 | |
| Working Temperature(℃) | －40℃, 60℃ | LED Light Source | 36/48/60 pcs LEDs |
Product Description
Description
EXC-U28NCB0 full-color series consists of full-color SMD strip lights equipped with an ultra-narrow aluminum-profile housing and specially designed by EXC for outdoor landscape lighting. They are only 28mm wide. Each strip includes 8 pixels, and each pixel can realize 65536 grades gray scale changing; featuring simple and reliable installation, they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting, and small-range wall washing.
Features
lOnly 28mm wide
lThe newest generation technology: DMX512 parallel bus design
lFull-sealed filling waterproof design by German imported glue
lAluminum alloy lamp body with low thermal resistance path heat dissipation design
lOutdoor lightning protection and electrostatic discharge (ESD) protection design
Basic Specifications
Color Range | RGB/RGBW/W |
Working Voltage | DC 24V |
Max. Power Consumption | 9W/12W/15W/18W |
Light Source | 36/48/60 pcs LEDs |
LED chip Brand | Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
CRI | 80 |
Control | DMX512, ON/OFF |
Segment | 1/4/5/6/8/10 |
Source Life | 50,000 h |
Housing | High strength aluminum alloy |
Cover | PC(Transparent, Opal) |
Weight | 0.77Kg |
Working Temperature | -40°C to 60°C |
Storage Temperature | -40°C to 70°C |
Protection Rating | IP66 |
Efficiency flux | 40LM/W(White), 20LM/W(RGB), 30LM/W(RGBW) |
Beam Angle | ≥95° |
Host Controller | EXC-5200 |
Slave Controller | EXC-2905T1 |
Signal Cable | EXC-LED outdoor special cable |

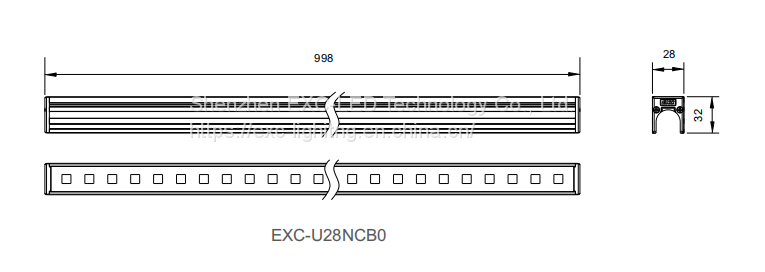

Physical Dimension
Unit：mm

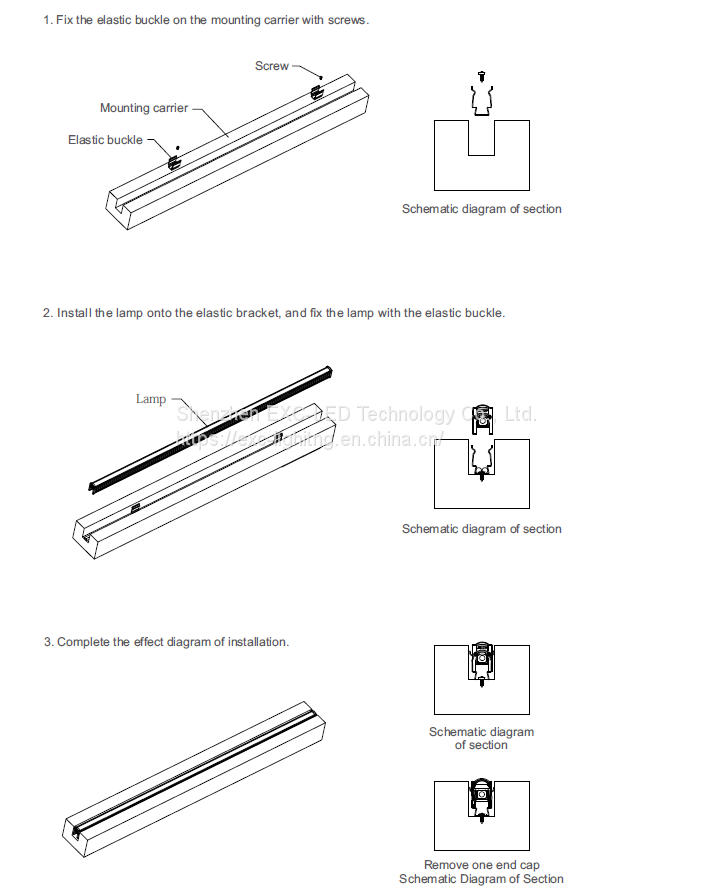

Installation Diagram
