Description
EXC-W80CBH full color series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED. EXC-W80CBH can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Customized lighting fixture length available.
Features
lThe newest generation technology: DMX512 parallel bus design
lProfessional comb convection heat dissipation design
lUnique waterproof and breathable design
lLow thermal resistance path heat dissipation design
lOutdoor lightning protection and electrostatic discharge (ESD) protection design
lProjection distance: 1-7.5m
Basic Specifications
Color Range |
W(2200K-6500K), RGB, RGBW |
Light Source |
72, 24R+24G+24B, 18R+18G+18B+18W pcs LEDs |
Working Voltage |
AC 220V |
Max. Power Consumption |
120W(white), 120W(RGB, RGBW) |
Control |
DMX512, ON/OFF |
Segment |
1, 2(RGB, RGBW) |
Grey Scale |
8bit, 16bit |
Source Life |
50,000 h |
RDM |
Optional |
LED chip Brand |
Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
Housing |
High Strength Aluminum |
Cover |
Tempered glass |
Weight |
6.0KG |
Working Temperature |
-40°C to 60°C |
Storage Temperature |
-40°C to 70°C |
Protection Rating |
IP66 |
Efficiency flux |
≥70LM/W(White),≥45LM/W(RGBW),≥30LM/W(RGB) |
Beam Angle |
6°, 10°, 12*22° and other angles optional |
Host Controller |
EXC-5200 |
Slave Controller |
EXC-2905T1 |
Signal Cable |
EXC-LED outdoor special cable |

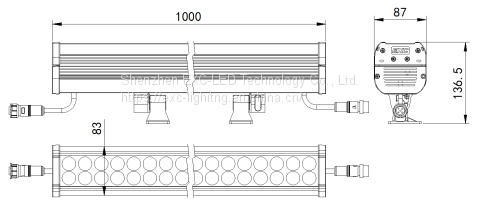

Physical Dimension
Unit:mm

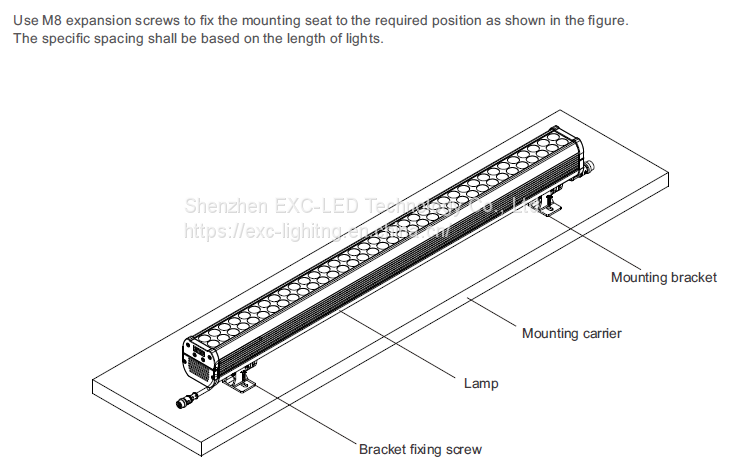

Installation Diagram
