Description
EXC-W35CBL series are high power outdoor landscape LED wall washer with high strength aluminum alloy housing by EXC-LED, can be used for accent lighting or flood lighting, such as building facade, bridge, stage, etc. Versatile length allows various options.
Features
l Cancel the knapsack; light,thin,and simple in design
l Patented comb-like convection design ensure better heat dissipation
l Low thermal resistance path heat dissipation desig
l Design of unique waterproof and ventilation
l Outdoor lighting protection and electrostatic discharge (ESD) protection design
l Projection distance: 1-1.5m
Basic Specifications | |
Color Range |
W(2200K-6500K) |
Light Source |
18/24 pcs LEDs |
Working Voltage |
DC 24V |
Max. Power Consumption |
18W/24W |
Control |
ON/OFF |
Segment |
1 |
Grey Scale |
/ |
Source Life |
50,000 h |
RDM |
Optional |
LED chip Brand |
Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
Housing |
High Strength Aluminum |
Cover |
Tempered glass |
Weight |
0.9KG |
Working Temperature |
-40°C to 60°C |
Storage Temperature |
-40°C to 70°C
|
Protection Rating |
IP66 |
Light Intensity |
1260LM/1680LM |
Beam Angle |
25*40° |
Light Intensity Distribution | |
|
Light Intensity Chart
|
|
|
Physical Dimension Unit：mm |
|
Mounting Accessories 1: |
|

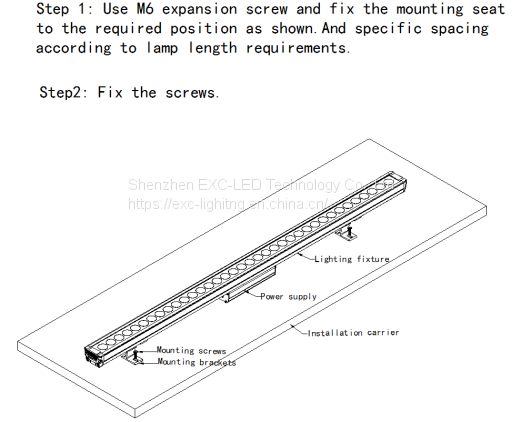

Installation Diagram |
|
|
System connection diagram： |
|
1、Host controller should connect with slave controller. Working voltage for controllers are AC220V. 2、On-line main controller should connect with slave controller, on-line main controller and sub controller working voltage are AC220V. 3、each sub-controller with 8 ports, with each port 512 pixels, supporting data converter, supports 100 meters ultra-long haul transmission. 4、The CAT-5 e. cable distance should be within 100 meters between host controller and slave controller, between slave controllers and switch, etc. |
