6xrgb+12xw LED RGB Module Pixel Light TV Outdoor Advertising Display Digital Point Light

Shenzhen EXC-LED Technology Co., Ltd.
6xrgb+12xw LED RGB Module Pixel Light TV Outdoor Advertising Display Digital Point Light thumbnail-1
6xrgb+12xw LED RGB Module Pixel Light TV Outdoor Advertising Display Digital Point Light photo-1
US$ 11.98 - 15.98 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EXC
Place of Origin:
China
Model Number:
EXC-P95DM1
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EXC
Place of Origin China
Model Number EXC-P95DM1
Certification CCC, CE
Lamp Body Material Aluminum Alloy
Emitting Color Changeable
IP Rating IP66
Color Temperature(CCT) Other, Optional
Input Voltage(V) 24
Working Lifetime(Hour) 50000
CRI (Ra>) 80
Working Temperature(℃) ,
Lamp Power 15
LED Light Source W(24), RGB+W(6+12) pcs SMD LEDs

Description

EXC-P95DM1 full color series are a full-color LED series string LED pixel light with extruded aluminum alloy housing, which are designed for outdoor landscape lighting by EXC-LED. Each EXC-P95DM1 pixel is a separate lighting pixel, and each pixel can realize 256 grades gray scale changing. They can be used for indoor and outdoor applications, customized pixel pitch, and easy installation.



Features

l The newest generation technology: DMX512 parallel bus design

l Outdoor lighting protection and electrostatic discharge (ESD) protection design

l Flexible design ensures 4 kinds of mounting way



Basic Specifications

Color

W(2200K-6500K), RGB+W, etc...

Working Voltage

DC24V

Max. Power Consumption

15W

Light Source

W(24), RGB+W(6+12) pcs SMD LEDs

CRI

80

Control

DMX512, ON/OFF

Grey Scale

8bit, 16bit

Source Life

50,000h

RDM

Optional

LED chip Brand

Optional(Cree, OSRAM, Lumileds, Epistar, etc...)

Cover

PC(Transparent, Opal, Crystal)

Housing

High strength extruded aluminum

Weight

450g

Dimensions

96.5mm x 96.5mm x 78mm (L x W x H, exclude Mounting Bracket)

Installation

Installation with screws or adhesive

Working Temperature

-40°C to 60°C

Storage Temperature

-40°C to 70°C

Protection Rating

IP66

Luminous Flux

25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW)

Central Light Intensity

≥210cd(RGBW)

Beam Angle

≥105°

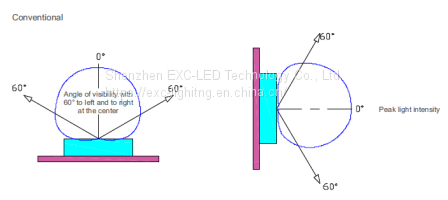

Light Intensity Distribution



Light Intensity Chart

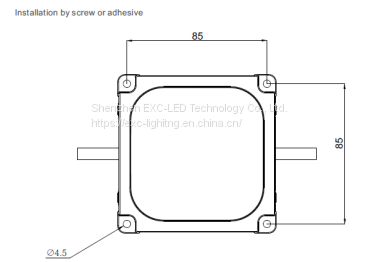

Physical Dimension

Unit：mm



 Mounting Accessories :
