Description
EXC-U22NAB0 full-color series consists of full-color SMD linear lights equipped with a narrow aluminum-profile housing and specially designed by EXC for outdoor landscape lighting. Each strip includes 8 pixels, and each pixel can realize 65536
grades gray scale changing; featuring simple and reliable installation, they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting, and small-range wall washing.
Features
l Only 22mm width, very compact design.
l The newest generation technology: DMX512 parallel bus design
l Full-sealed filling waterproof design by German imported glue
l Aluminum alloy lamp body with low thermal resistance path heat dissipation design
l Outdoor lightning protection and electrostatic discharge (ESD) protection design
Basic Specifications | |
Color Range |
RGB/RGBW/W |
Working Voltage |
DC 24V |
Max. Power Consumption |
9W/12W/15W/18W |
Light Source |
36/48/60 pcs LEDs |
LED chip Brand |
Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
CRI |
80 |
Control |
DMX512, ON/OFF |
Segment |
1/6/8/10 |
Source Life |
50,000 h |
Housing |
High strength aluminum alloy |
Cover |
PC(Transparent, Opal) |
Weight |
0.82Kg |
Working Temperature |
-40°C to 60°C |
Storage Temperature |
-40°C to 70°C |
Protection Rating |
IP66 |
Efficiency flux |
40LM/W(White), 20LM/W(RGB), 30LM/W(RGBW)，milky diffuser(decrease 30%-50%） |
Beam Angle |
≥110° |
Host Controller |
EXC-5200 |
Slave Controller |
EXC-2905T1 |
Signal Cable |
EXC-LED outdoor special cable |
Light Intensity Distribution | |
|
Light Intensity Chart
|
|
|
Physical Dimension Unit：mm |
|

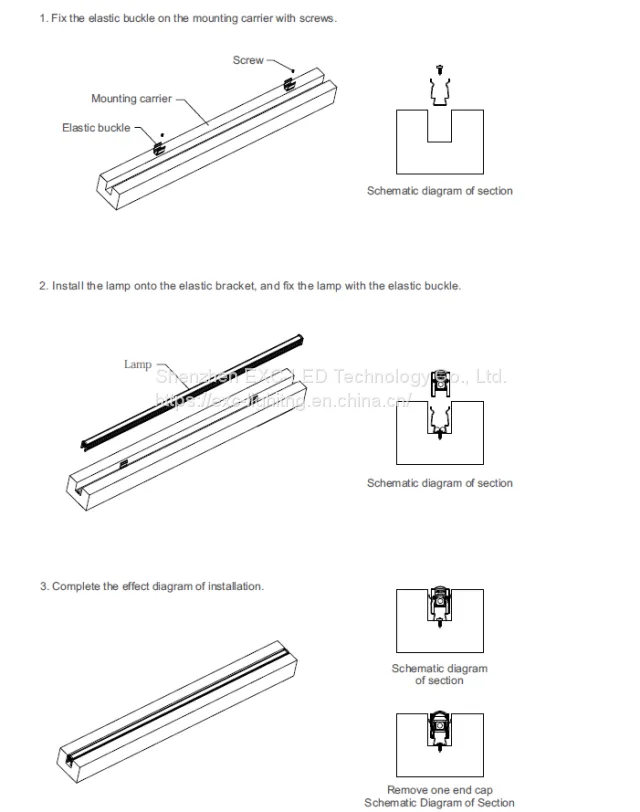

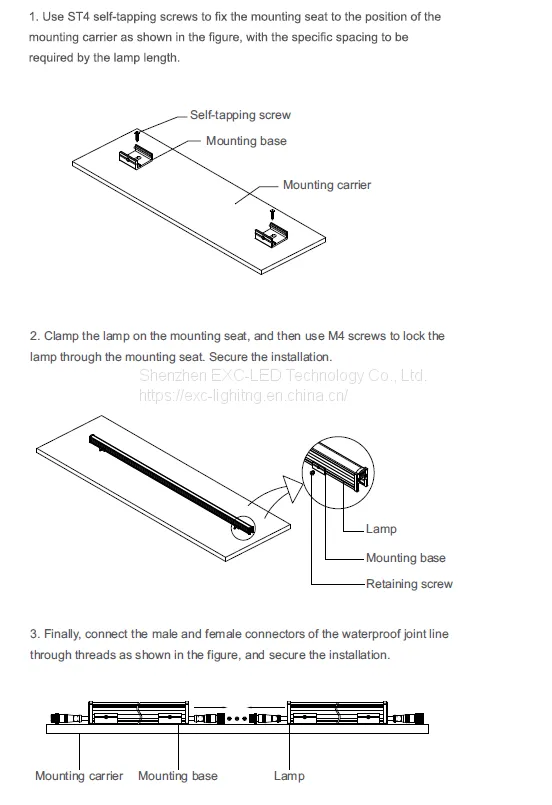

Installation Diagram |
1、 Facade installation |
|
|

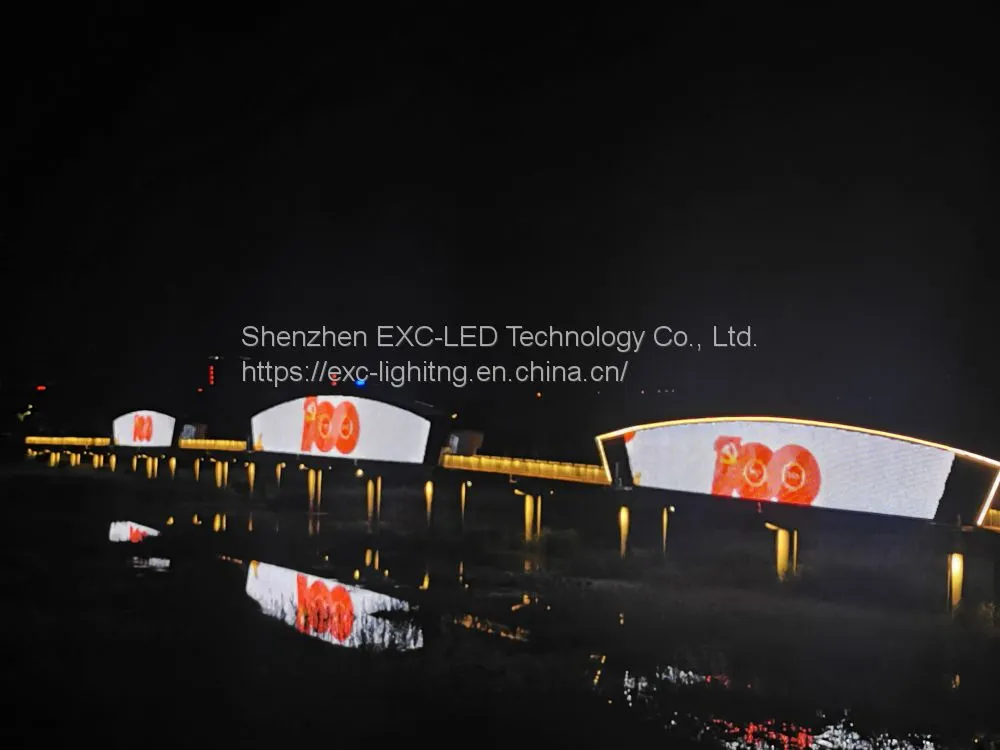

Applicable Scene
bridge, Office buildings, residential buildings, hotels, KTV, bars, river banks, museums, Bridges and other building exterior walls
