Description
EXC-P46AP2 full-color series consists of full-color chip LED string pixel lights specially designed by EXC for outdoor landscape lighting. It adopts top-level optical vision angle design, super remote multi-color and visual brightness consistency technology and precision control. Each pixel is a separate four-primary lighting pixel, and each pixel can realize 65536 grades gray scale changing; they can be used for extra-large area display of building facades, contour shaping, interior and exterior surface decoration lighting; the pixel pitch can be customized; the installation methods are various.
Features
lThe newest generation technology: DMX512 parallel bus design
lHigh gray scale, high wash, no-strobe design, delicate and soft colors
lTop-level optical vision angle, near and remote multi-color and visual brightness consistency design
lIntegrated clip-on endless connection
lFully sealed and waterproof design with high thermal conductive adhesive imported from Germany
lSpecial outdoor lightning and ESD protection
Basic Specifications
Color |
W, RGB, RGB+W |
Working Voltage |
24V |
Max. Power Consumption |
1.5W/1.8W/3W |
Light Source |
6/9pcs SMD LEDs |
CRI |
80 |
Control |
ON/OFF, DMX512 |
Grey Scale |
8bit, 16bit |
Source Life |
50,000h |
RDM |
Optional |
LED chip Brand |
Optional(Cree, OSRAM, Lumileds, Epistar, etc...) |
Cover |
PC(Transparent,Opal) |
Housing |
PC+ABS |
Weight |
45g |
Dimensions |
59mm x 46.5mm x 17.2mm (L x W x H, exclude Mounting Bracket) |
Installation |
Installation By Aluminum Profile |
Working Temperature |
-40°C to 60°C |
Storage Temperature |
-40°C to 70°C |
Protection Rating |
IP66 |
Luminous Flux |
25LM/W(RGB), 50LM/W(White), 30LM/W(RGBW) |
Central Light Intensity |
30cd(W)/15cd(RGB)/22cd(RGB+W) |
Beam Angle |
120°/80°*120° |

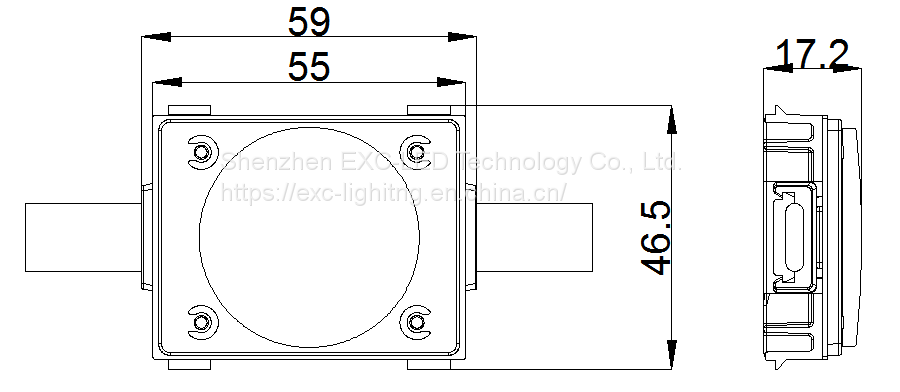

Physical Dimension
Unit：mm
