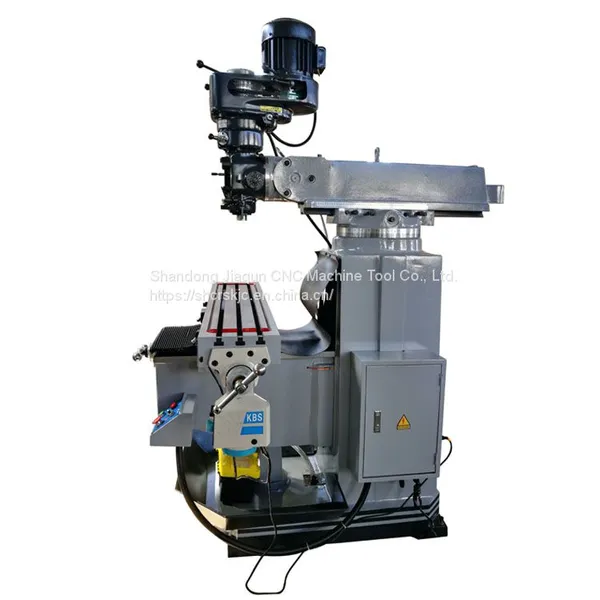

Help Center4H Turret Milling Machine
Related Products
-
Milling Machine H5|verticalVertical Turret Milling MachineUS$ 5000 - 5600MOQ: 1 Box -
Milling Machine H5|verticalVertical Turret Milling MachineUS$ 5000 - 5600MOQ: 1 Box
-
Chinese Milling Machine|universal Milling MachineUS$ 3500 - 3560MOQ: 1 Box
-
M4 Turret Milling MachineNegotiableMOQ: 1 Box
-
M5 Turret Milling Machine|verticalVertical Turret Milling MachineUS$ 5000 - 5500MOQ: 1 Box
The main performance characteristics：
1.M Hanna high strength cast iron, internal honeycomb rib structure, high rigidity, long service life.
2.Spindle adopts imported from Japan King combination diamond. After the quenching and tempering and frequency processing, after fine grinding with 4 imported bearings (other manufacturers spindle 3 bearing), ensure high quality and high precision.
3.Three shaft screw fine grinding with advanced phosphor bronze nut, durable.
4.Horizontal milling with 4 gear shaft speed (other manufacturers for the 2 gear shaft), a wide range of variable speed, torque.
Application：
The milling machine is a kind of universal light duty metal cutting machine,
Has two functions of vertical and horizontal milling, Milling medium, small parts of the plane, inclined plane, groove and spline etc..
Widely used in mechanical processing, mold, equipment, instrumentation and other industries.

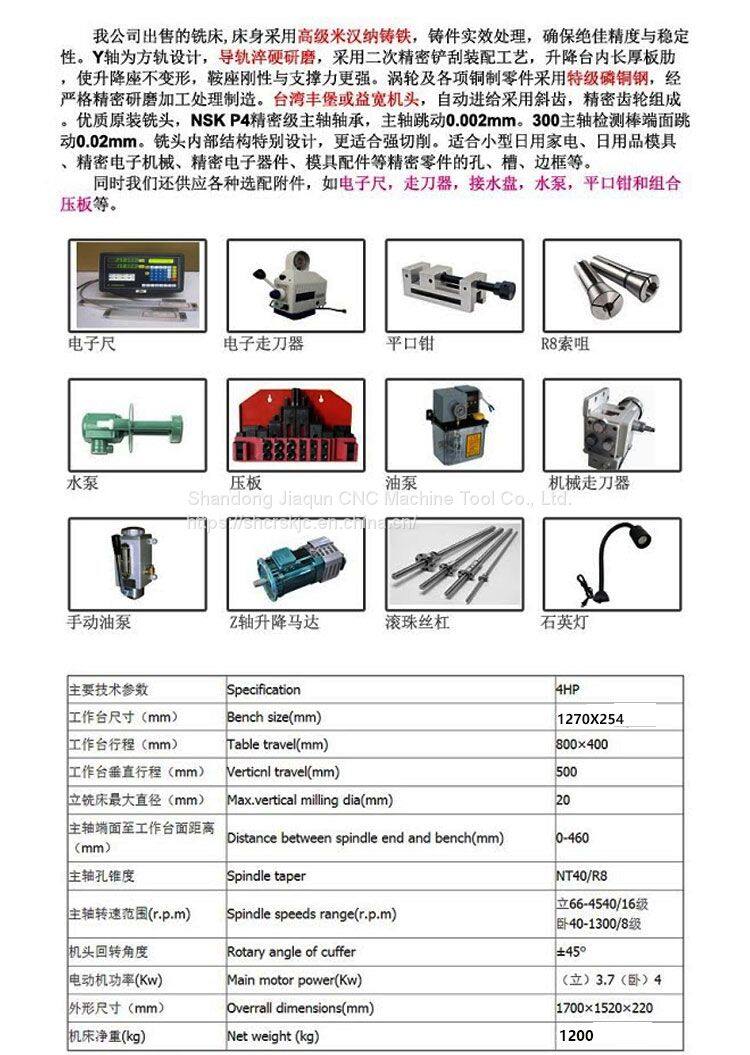

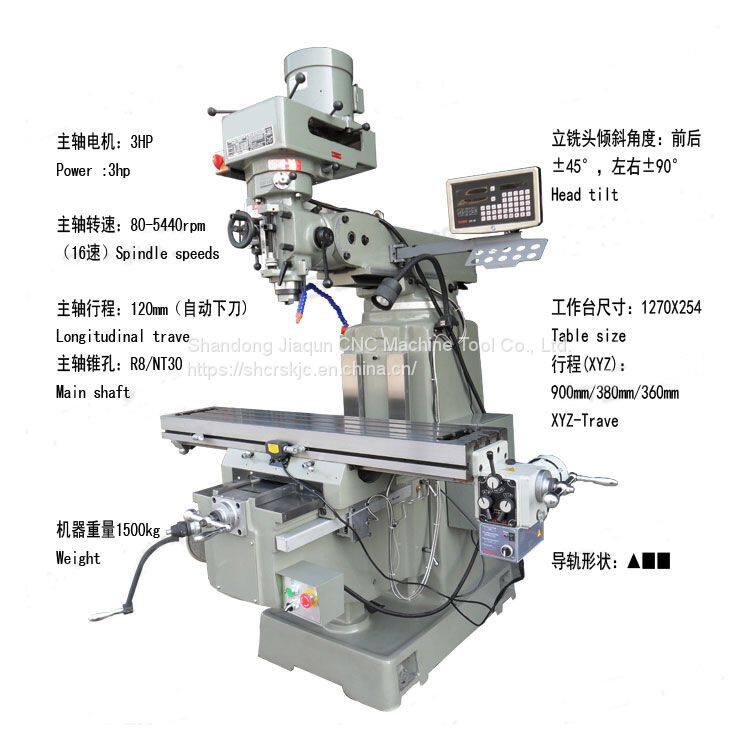

Product main technical parameters:
Specifications |
Units |
4H |
||
Table size |
mm |
1270x254(10”x50”) |
||
T- slot number and size |
mm |
3x16 |
||
Working table stroke |
X |
mm |
780 |
|
Y |
400 |
|||
Z |
500 |
|||
Telescopic arm stroke |
mm |
470 |
||
Spindle nose to working table distance |
mm |
0-405 |
||
Taper of spindle hole |
Standard: R8 Optional: ISO30/ISO40 |
|||
Spindle speed |
r/min |
Standard: 16（shift grade）50HZ:65-4500 60HZ:80-5440 |
||
Optional:（variable）65-4000 | ||||
Spindle travel |
mm |
127 |
||
Spindle feed rate |
mm/r |
Three steps: 0.04(0.0015”)/0.08(0.003”)/0.15(0.006”) |
||
Spindle motor power |
KW/HP |
2.25/3HP |
||
Head rotation (left - right ) |
° |
90° |
||
Head rotation (front - rear) |
° |
45° |
||
Packaging size（Lx W x H） |
Single package |
mm |
1516x1550x2080 |
|
Two sets of packaging |
1650x1790x2170 |
|||
Three sets of packaging |
1650x2285x2235 |
|||
Gross Weight |
Kg |
1650 |
||
