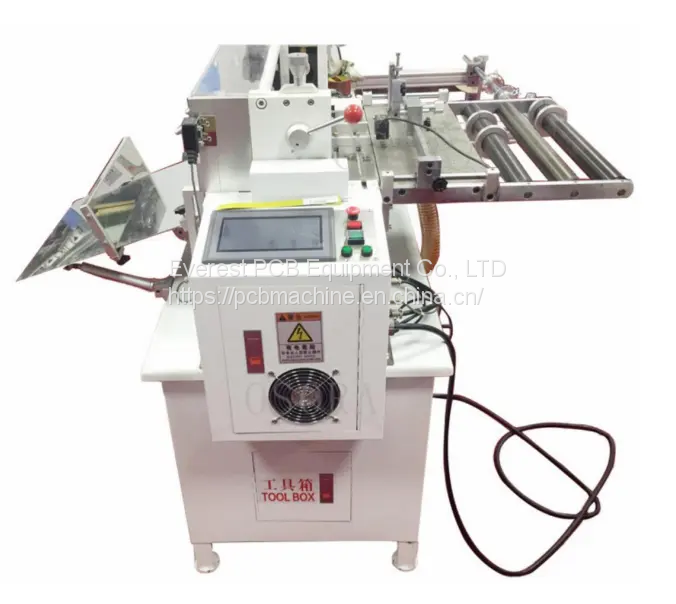

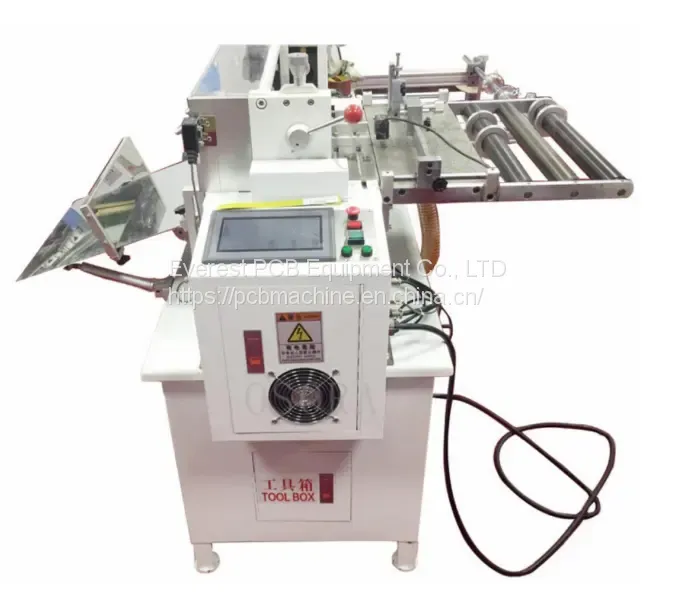

FPC Cutting Machine Automatic PCB Plate Cutter

FOB Price

US$ 6000 - 8000 / Set

1 Set(Min. Order)

Port Guangzhou
Payment TermsT/T L/C

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Everest		Place of Origin	China
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Product Description

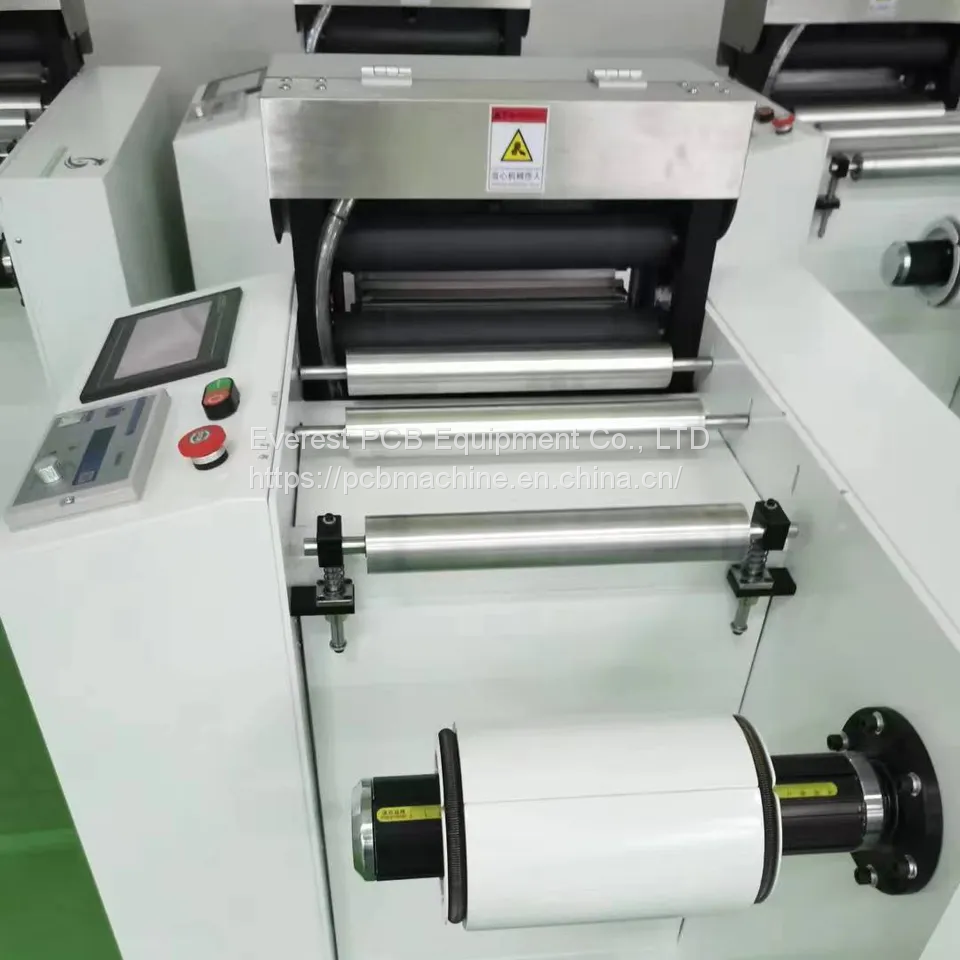

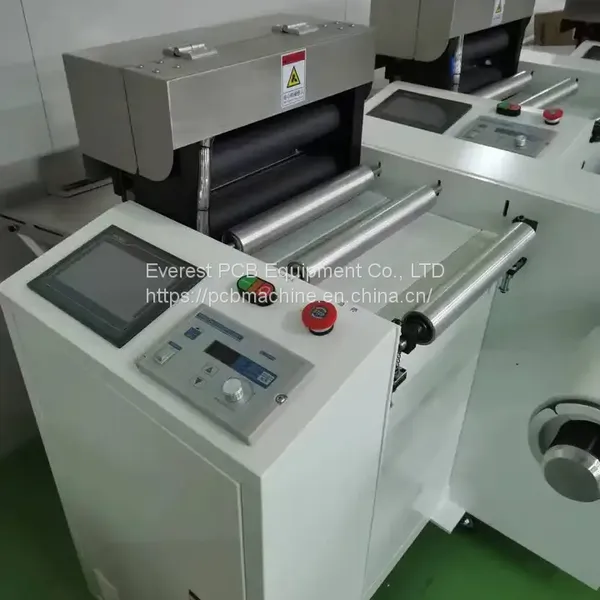

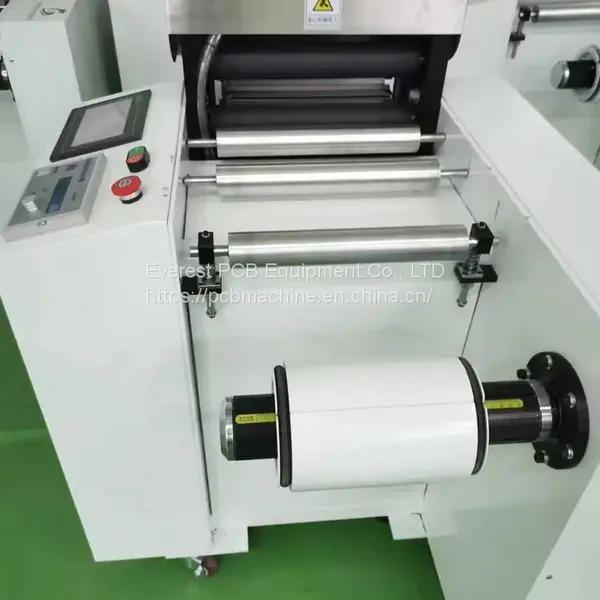

Details Images

Product features:

During cutting, various cutting width sizes can be set according to production requirements, and the minimum size is 0.1mm.
 There is an automatic counting function in production to record the production capacity.
The machine is equipped with feed forward and reverse return functions.
There is a tension display on the machine operation panel to enable the operator to understand the current machine working tension data.
The cutting tool is made of high-speed steel, which is durable and wear-resistant.
It can be upgraded to CCD automatic alignment cutting, roll to roll etching or precise positioning cutting after printing.
With automatic electrostatic removal function.

No.	Item	specification
1	Cutting width	0mm --250mm
2	Outer diameter of gas expansion shaft	60mm(Adapter module)
3	Cutting Precision	100mm±0.1mm
4	Cutting thickness	0.03mm-0.5mm
5	Cutting speed	6-15m/1min
6	Control method	Touch screen+PLC
7	Air pressure supply	0.4MPa-0.8MPa
8	Weight	100KG
9	Power supply	AC220V 1KW
10	Process capability	FPC substrate pure copper foil covering film, PI, pure glue and other FPC materials can be cut
11	Drive method	Stepper motor drive
12	Work environment	Humidity: 40%- 60% (non condensation) temperature: 18- 30 degrees
13	Processing method	Automatically complete cutting counting.
14	Suitable for	Copper foil, soft board base, pet covering film, etc.
15	Dimension	L800W850H1250mm
