PCB Inner Outer Layer LDI Exposure Machine Semi-Auto Direct Imaging Exposure Developing Machine

Everest PCB Equipment Co., LTD

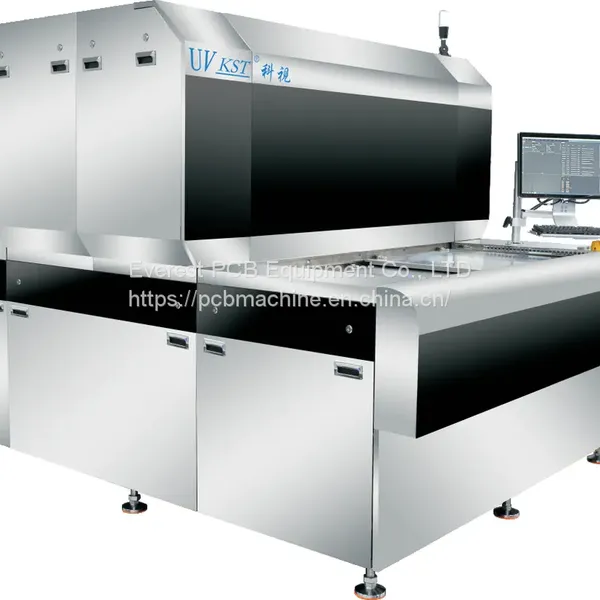

PCB Inner Outer Layer LDI Exposure Machine Semi-Auto Direct Imaging Exposure Developing Machine thumbnail-1

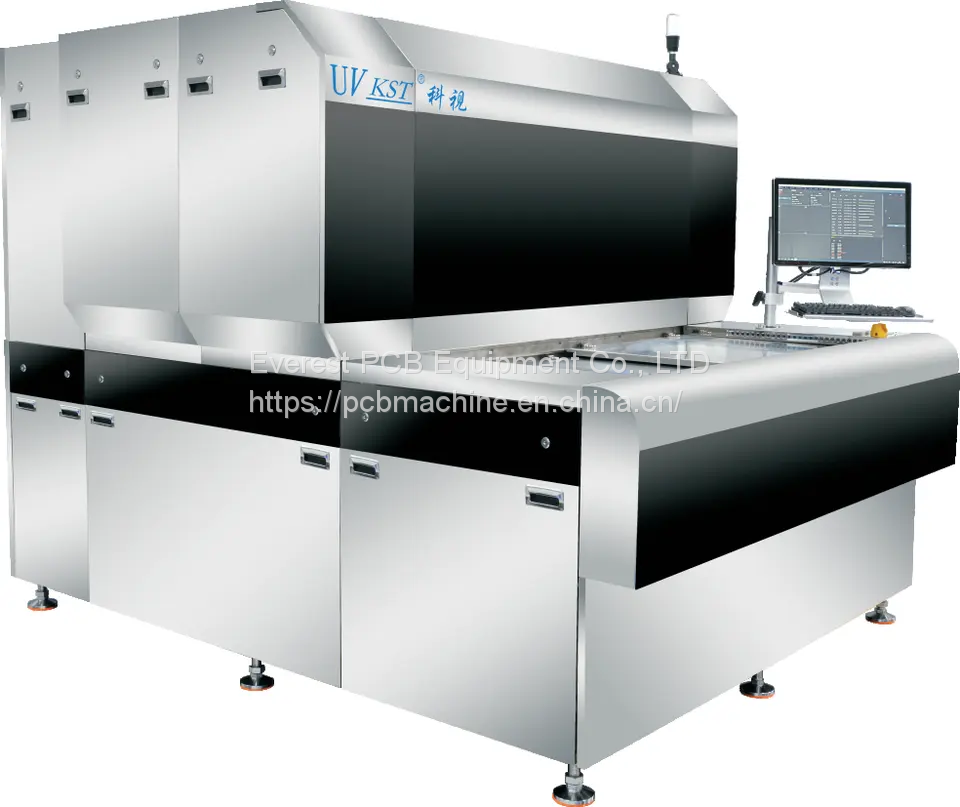

PCB Inner Outer Layer LDI Exposure Machine Semi-Auto Direct Imaging Exposure Developing Machine photo-1
US$ 230000 - 250000 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Everest
Place of Origin:
China
After-sales Service Provided:
Engineers available to service machinery overseas
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Guangzhou
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Everest
Place of Origin China
After-sales Service Provided Engineers available to service machinery overseas
Condition New

Details Images



Products Description

1. Multiple sizing calibration modes (auto mode, fixed mode, area mode, etc.)
2. Special target identifying light source that can improve target alignment precision
3. Intelligent production connection function (code editing, code reading and connection to factory MES system)
4. File transformation system (auto transforming, file processing, file reading)
5. High-efficiency laser direct imaging equipment adopts light source of new generation, combines high-precision operation system, and target identifying system, and provides circuit process with the best solution.





1
Uniformity
≥90%

2
Wavelength
405nm

3
Total power of Light Source
120W/Machine

4
Service Life of Light source
Maintain for Two Years

5
Exposure Mode
Single Side Expose

6
Data Input
Gerber274X；Gerber274D(Not recommend)

7
Graph Sizing Management
Fixed Sizing, Auto Sizing, Measurement Sizing

8
Scanning Marked Function
Print Date, Date, Serial No., Sizing measurement etc.

9
Sizing Management
Whole Sizing, Part Sizing, Area Sizing

10
Data Input
ODB++

11
Mark point Alignment
Front side Alignment

12
Table system Customization
Clamp Structure

13
Multi Zone Exposure
YES

14
Security
Comply with national safety standards

15
Anomaly detection
Abnormalities in production, with alarm function

16
Requirement of PCB Bending and warping
Max 3mm

17
PCB Thickness error range
±3Mil

18
Operational height
1050±50mm

29
Dust-free environment temperature
22±2°C

30
Relative humidity
55%±5%

31
Dust-free
CLASS 100,000

32
Power supply
3 Phase 5 Wire；AC380V-50Hz-15KW

33
Pneumatic source requirements
5.5Kg/cm²，Flow rate 500L/min

34
Ice Water
7-12°C，Flowrate 30L/min，Pressure 2-3Kg/cm²

35
Single Machine Weight
Weight:4800Kg

36
Dimension (For reference Only)
(L ×W ×H)：2230mmX2580mmX1950mm
