Home > Products > PCB standard equipment > High Speed PCB flying probe tester

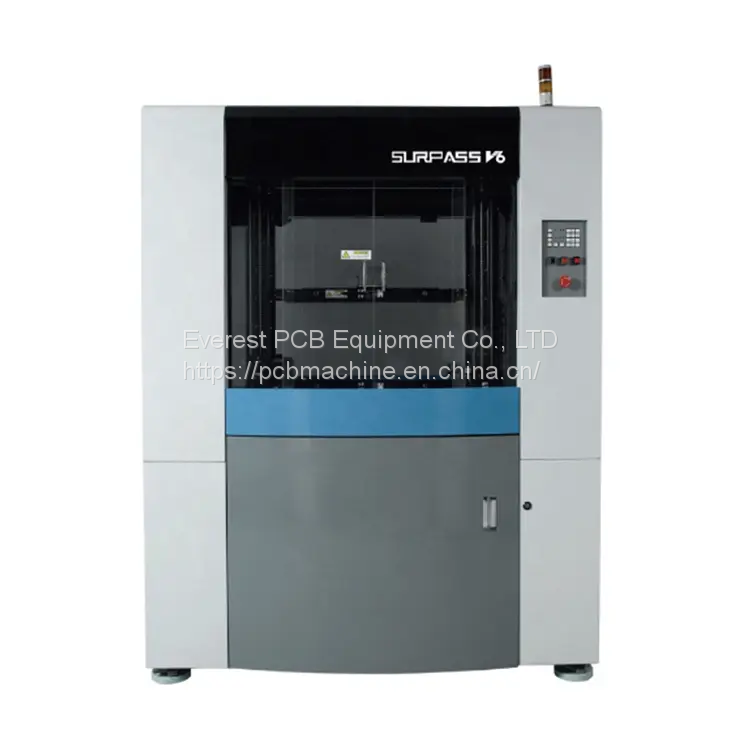

High Speed PCB flying probe tester
US$ 50000 - 60000
/ Set
1 Set(Min. Order)
- Guangzhou
- T/T L/C Credit Card PayPal Cash
You May Like
-
Efficient PCB Board Automatic Gantry CNC V-cut Machine
-
Durable Service PCB Roller Board Raw Material Cutting Separate Machine with Easy Operation & Simply Maintenance
-
Everest PCB Dry Film Developing Machine Easy to Operate Film Developer
-
PCB Soder Mask Developing Machine
-
PCB Tin stripping machine
-
Gold plating line electroplating equipment
Product Details
| Brand Name | Everest | Place of Origin | China | |
| After-sales Service Provided | Engineers available to service machinery overseas | Condition | New |
Product Description
Details Images
Products Description
Main parameters:
Min. test area | 76x76mm(no limit when use fixture) |
No. of Flying Probe | 2 front, 2 Rear |
No. of CCD | 2 front, 2 Rear |
Board Thickness | 0.3-6 mm |
Repeatability | ±10μm |
Resolution | 6μm |
Min. Pad Pitch | 120μm |
Min. Pad Size | 75μm |
Power requirement | AC220V,8A |
Air requirement | No need |
Isolation test voltage | 250V(optional :500V) |
Open circuit test current | 2.65μA-125mA |
Isolation resistance | 5MΩ-100MΩ |
Open circuit resistance | 2Ω-8kΩ (optional:0.4mΩ-800KΩ) |
Board mount system | Manual clamping |
machine weight | 875 kg |
Machine size | 150x215x74 cm |

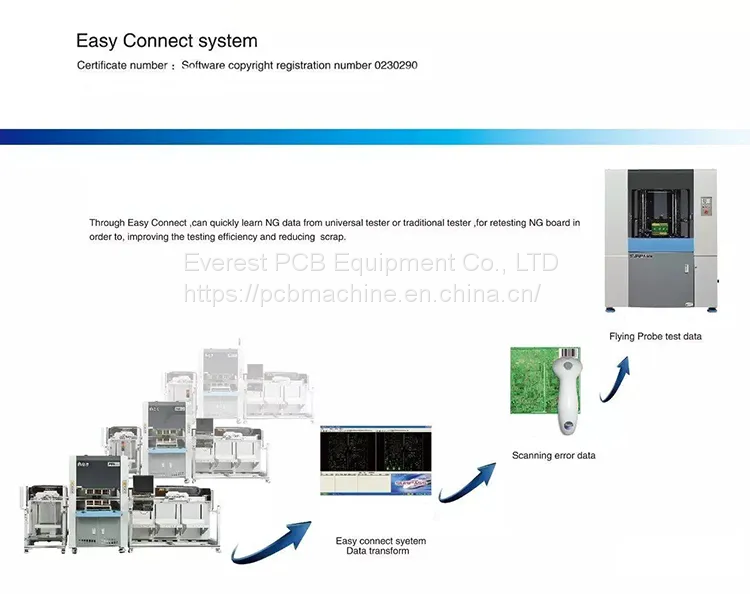

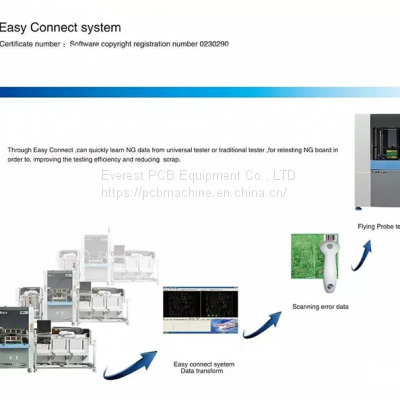

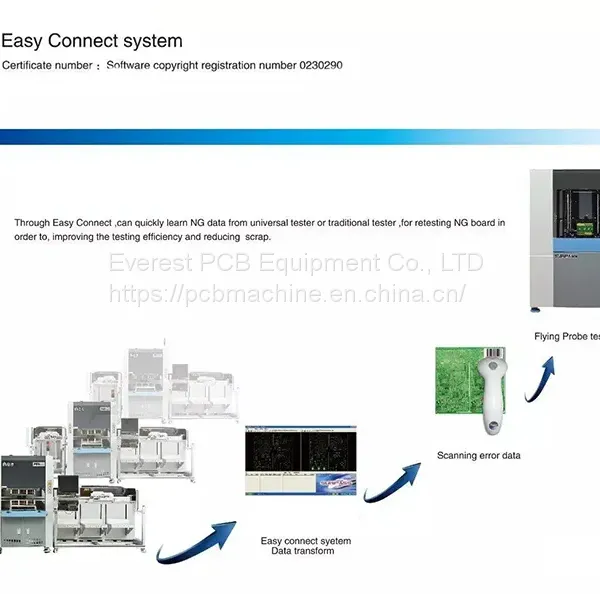

Optional | *Build in resistance and capacitorEasy Connec *Vacuum system *4 terminals test function *Auto marking system |
